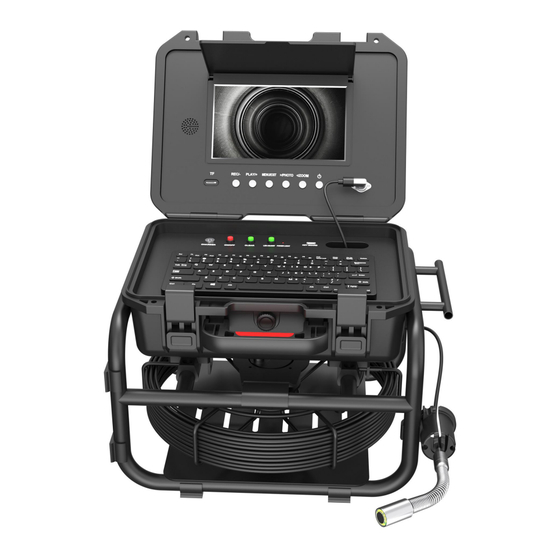

Pipe Inspection Camera System
User Manual
Model No：F5100DJKABTX
NOTE: All accessories are under the keyboard!
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
Amazon Orders After-sale: support@sanyipace.com
Website Orders After-sale: service@sanyipace.com
Advertisement
Table of Contents
Related Manuals for Sanyipace F5100DJKABTX
Summary of Contents for Sanyipace F5100DJKABTX

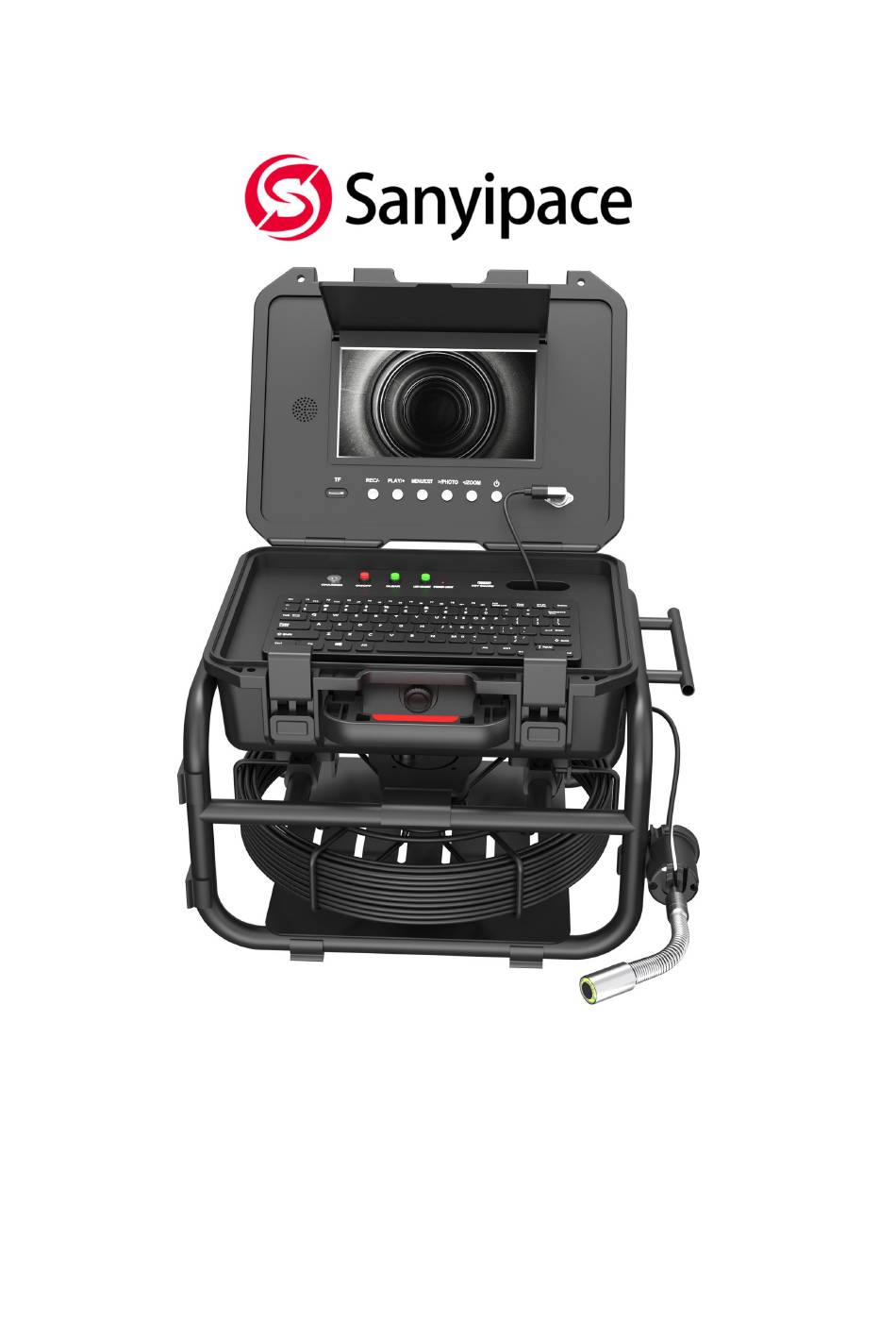

- Page 1 Pipe Inspection Camera System User Manual Model No：F5100DJKABTX NOTE: All accessories are under the keyboard! ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product Amazon Orders After-sale: support@sanyipace.com Website Orders After-sale: service@sanyipace.com...
- Page 2 ● Scan this QR code to get the electronic version of the instruction in English. ● Scannen Sie diesen QR -Code, um die elektronische Version der Anweisung auf Deutsch abzurufen. ● Scannez ce code QR pour obtenir la version électronique de l'instruction en français.
-
Page 3: Table Of Contents
Catalog 1. Notice ..................... 1 2. Scope of Product Use ..............1 3. Product Specification ..............1 4. LCD Monitor Operation ..............3 5. Counter Function ................5 6. Control Panel & Keyboard Input .............5 7. Camera with Self-leveling Function & 512Hz Transmitter ..... 6 8. -
Page 4: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. e. - Page 5 high elastic cable; 131ft/40m of 0.28in/7mm hardest high elastic cable (optional) ---Monitor Screen--- Size: 9-inch Camera/monitor picture: IPS LCD color Function: Video recording, audio recording, speaker, capture photos, 5X digital zoom, battery level display, depth counter, 512Hz transmitter, self-leveling, keyboard input (support English), etc. Monitor input voltage: DC 12V TF card: package includes a 16GB TF card, support max 128GB Display resolution: 1024*600 IPS...
-
Page 6: Lcd Monitor Operation
4. LCD Monitor Operation TF card: including 16GB, maximum support 128GB card Built-in microphone and speaker Display Operation : - Turn On Connect all the cables of the device, turn on the battery switch button and press the power button on the screen, and the system starts. - Menu Settings (need to exit REC mode): Press the "MENU/EXIT"... - Page 7 - How to Playback Images/Videos: Press "PLAY/+" to enter image browsing, press it again to enter video playback, press "<" ">" button to select, press "REC/-" to play, press "REC/-" again to exit. - How to Take Photos: Press ">/PHOTO" to capture a photo, press one at a time. - How to Zoom the Image While Recording: Press "<"...
-
Page 8: Counter Function
5. Counter Function Before using this function, please press the CLEAR button or F7 key to clear the counter information. You can toggle the display in feet or meters by pressing the F4 key. It will start counting feet/meters when the coil rotates, and display it on the screen in real time. -
Page 9: Camera With Self-Leveling Function & 512Hz Transmitter
④ LED brightness adjustment (0-5 gear) ⑤ Power indicator light ⑥ Second keyboard USB port (The first USB Port is under the control panel) ⑦ Esc: Clear characters ⑧ F4 key: Meter/Feet switch ⑨ F5 key: OSD switch (on-screen display) ⑩... - Page 10 The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m Self-leveling can be defined as the ability of any instrument to level itself regardless of the angle of inclination.
-
Page 11: Cable Coil
8. Cable Coil New stable and strong coil structure with steel bearing inside, can easily release or coil the cable with less time and force. How to release the cable: Take out the cable from the holder, then pull the coil clockwise to release. How to coil the cable: Turn the cable counterclockwise to coil the cable back while using your other hand to hold and rotate the coil, then lock the cable in the holder. -
Page 12: Device Installation
The steps of charging are as follows: a. Take out the DC adapter from the box. b. Connect the DC adapter port to the charging port (on the control panel). c. Plug the DC adapter into 100-240V AC, when the indicator light shows red, it means it is charging. -
Page 14: Structure & Accessories
11. Structure & Accessories ①Plastic Box*1 ②Metal Sunvisor*1 ③16GB TF Card*1 ④9-inch IPS Screen*1 ⑤Keyboard*1 ⑥Instruction*1 ⑦Lithium Battery*1 ⑧Metal Bracket*1 ⑨Fiberglass Cable*1 ⑪Camera Probe*1 ⑫3.9in/99mm Pipe Pulley*1 ⑩Handle*1 ⑬1.5in/38mm Protective Cover*1 ⑭DC Adapter*1 ⑮Screwdriver*1 12. Assemble & Disassemble Box <1> Assemble steps: a. - Page 15 c. Insert the latch pin to prevent it from falling out. <2> Disassembly steps: a. Pull out the latch pin; b. Push the box to the right and move out of the slot (as shown in the picture); c. Take out the plastic box.
-
Page 16: Trouble & Troubleshooting
Is the DC adapter plug-in correctly; Can’t be charged b. Check if the indicator light of the DC adapter is on. Contact Sanyipace to replace the button plate Power light stay on a. Whether the TF card is inserted correctly;... - Page 17 a. Coil Connector: If you install the camera probe, it can work, but you pull out the cable about 15ft/5m and the screen shows 'no signal' in blue color, which means the coil connector is broken. Use a multimeter to test the circuit between the coil connector, if the circuit fails, please replace the coil connector.
- Page 18 b. Coil Cable: Use a multimeter to test the circuit between the coil cable and the cable connector (the part that connects the cable to the camera). If the circuit fails, please replace the coil cable. Gold number 1 tested with circle 1 Gold number 4 tested with circle 2 Gold number 2 tested with circle 3 No signal, and the...
- Page 19 'no signal' in blue color immediately, and the connectors and cables are good, means the camera probe is broken. Please confirm whether water ingress into the camera. If it still can't work, please contact Sanyipace and describe the problem to let us deal with it.
- Page 20 a. Coil Connector: If you install the camera probe, it can work, but you pull out the cable about 15ft/5m and the screen shows 'no signal' in blue color, which means the coil connector is broken. Use a multimeter to test the circuit between the coil connector, if the circuit fails, please replace the coil connector.
- Page 21 b. Coil Cable: Use a multimeter to test the circuit between the coil cable and the cable connector (the part that connects the cable to the camera). If the circuit fails, please replace the coil cable. Gold number 1 tested with circle 1 Gold number 4 tested with circle 2 Gold number 2 tested with circle 3 Gold number 3 tested with circle 4...
- Page 22 'no signal' in blue color immediately, and the connectors and cables are good, means the camera probe is broken. Please confirm whether water ingress into the camera. If it still can't work, please contact Sanyipace and describe the problem to let us deal with it.
-
Page 23: Warranty
24 hours a day. If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Purchase Sanyipace products, enjoy fast delivery and excellent service, please go to our official store on Amazon as below: US: https://www.amazon.com/sanyipace CA: https://www.amazon.ca/sanyipace...
