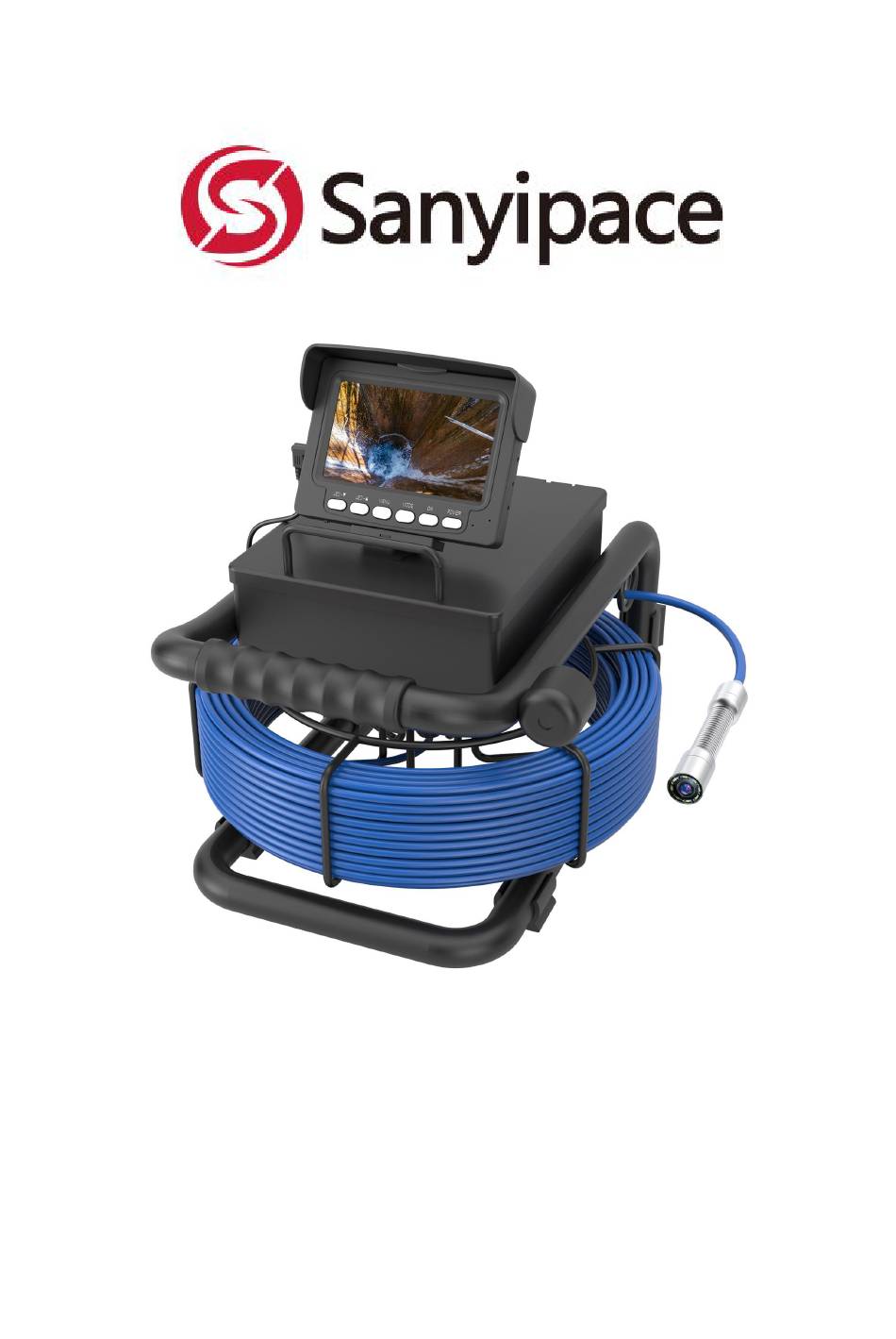

Sewer Pipe Inspection Camera
User Manual
S8417D
Model No：
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at the first time if you got issues with the product
Amazon After-sale: support@sanyipace.com
Website After-sale: service@sanyipace.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanyipace S8417D
Summary of Contents for Sanyipace S8417D
- Page 1 Sewer Pipe Inspection Camera User Manual S8417D Model No： ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at the first time if you got issues with the product Amazon After-sale: support@sanyipace.com Website After-sale: service@sanyipace.com...
- Page 2 ● Scan this QR code to get the electronic version of the instruction in English. ● Scannen Sie diesen QR -Code, um die elektronische Version der Anweisung auf Deutsch abzurufen. ● Scannez ce code QR pour obtenir la version électronique de l'instruction en français.
-
Page 3: Table Of Contents
Catalog 1. Notice .......................1 2. Scope of Product Uses ................... 1 3. Specification ....................1 4. TFT Monitor Operation ..................2 5. Camera & Camera Protective Case ............... 4 6. Device Charger ....................5 7. Device Install ....................5 8. Cable Operation ....................6 9. -
Page 4: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. If the user disassembles or damages the machine intentionally, it will not be covered by the warranty. d. -
Page 5: Tft Monitor Operation
---Monitor Screen--- Size: 4.3-inch Camera/monitor picture: TFT color monitor TF card: package includes 16GB card, support max 32GB Menu language: English/Chinese/German/Spanish optional Screen operation: press the button Video format: AVI Photo format: JPG Working temperature: -4~140℉/-20~60℃ Storage temperature: -22~176℉/-30~80℃ ---Battery Box--- Charger: 100VAC-240VAC/DC 12.6V 1000MA Charging time: about 5 hours Battery: lithium battery 5600mAh... - Page 6 ---Display Operation--- - TF: Insert TF memory card. - USB: Power adapter port. - LED: Lights up to indicate the device is charging. - ON/OFF: Slide to "ON", and the system starts, slide to "OFF", and shut down the system. - POWER: Screen switch on/off.
-
Page 7: Camera & Camera Protective Case
- How to view all photos and videos: 1) Press "MODE" to select the photos/videos you have taken, then press the "MENU" button to select the thumbnail, and you can see all the photos and videos. 2) Press "MODE" to select the photo/video you took, then press "LED+" or "LED-"... -
Page 8: Device Charger
6. Device Charger When the battery is low power (< 20% ), please recharge it, the charging time is about hours. Working time is 5-7 hours after full charging. Note: To ensure the battery has a longer lifespan, please recharge it timely. -
Page 9: Cable Operation
The following are the steps to install the protective case: 1) use the mini screwdriver to loosen the white screw. 2) put the camera protective case on the camera head. 3) use the mini screwdriver to tighten the white screw. 8. -
Page 10: Accessories List
9. Accessories List ①Sewer Camera * 1 ②User Manual * 1 ③Camera Probe * 1 ④Mini Screwdriver * 1 ⑤16GB TF Card * 1 ⑥Camera Protective Cover * 2 ⑦Power Charger * 1 ⑧Connection Cable * 1 10. Trouble & Troubleshooting Trouble Troubleshooting a. -
Page 11: Warranty
The battery is going to out of power, recharge the battery and try again; d. Use a multimeter tester to test all connectors, find out the damaged part and contact Sanyipace deal with it. 11. Warranty We provide a one-year product quality warranty from the date of purchase and provide free lifetime product technical support. - Page 12 ----Contact Us---- For more products please visit our website: https://www.sanyipace.com Amazon After-sale: support@sanyipace.com Website After-sale: service@sanyipace.com Facebook: Sanyipace WhatsApp: +86 137 1399 9105...
