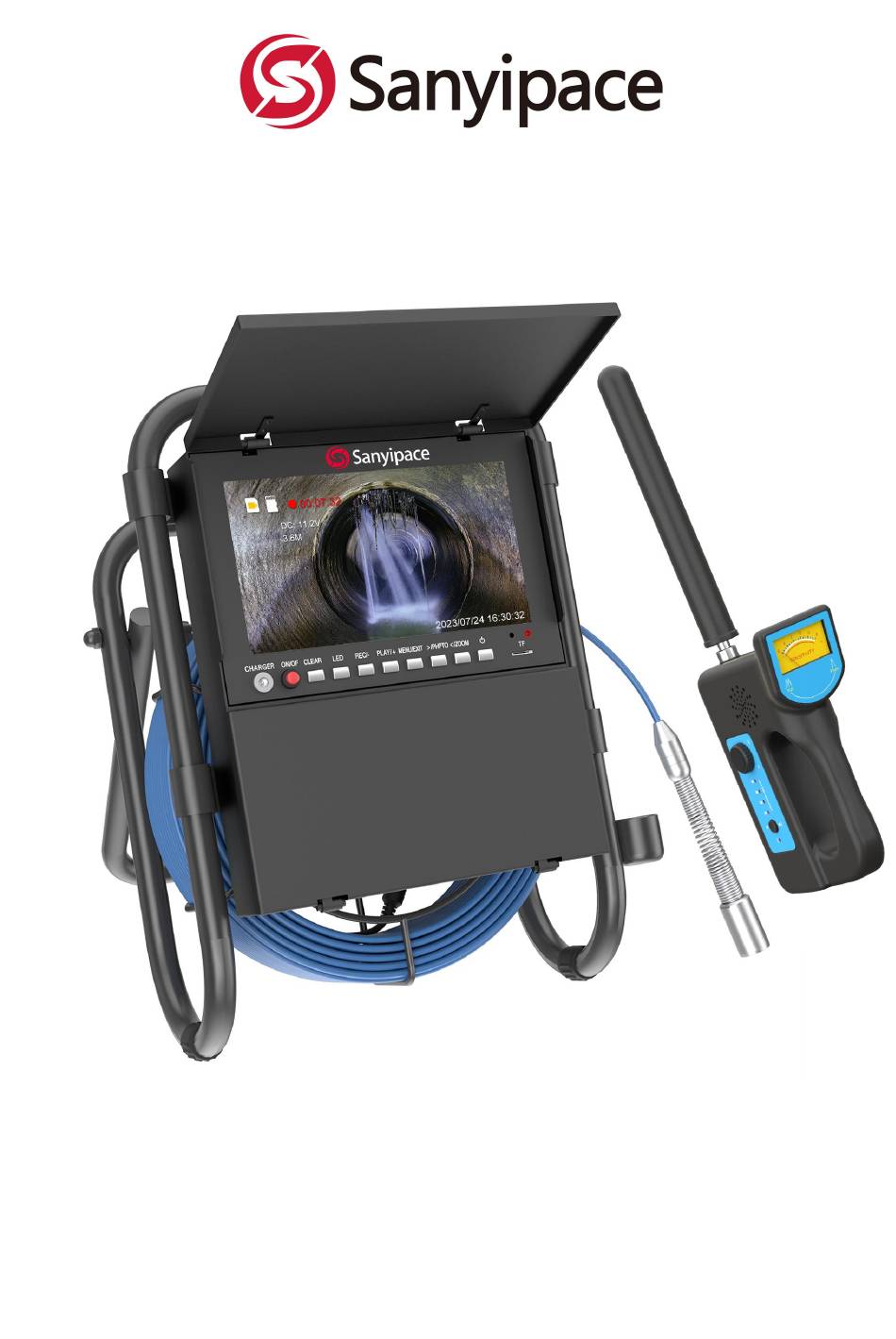

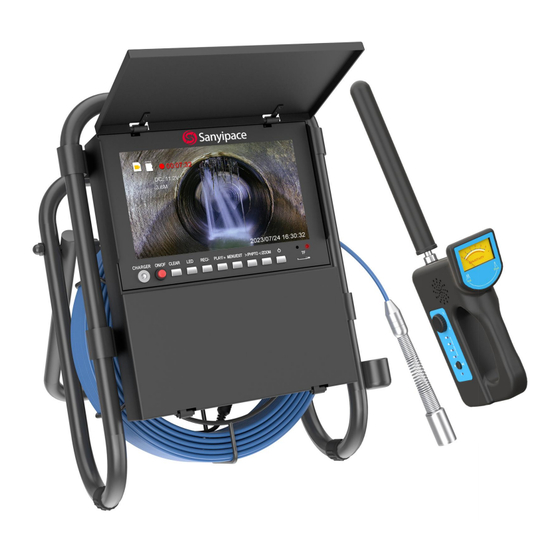

Pipe Inspection Camera with Locator
User Manual
Model No:S8958MRT
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
Amazon After-sale: support@sanyipace.com
Website After-sale: service@sanyipace.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S8958MRT and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanyipace S8958MRT

  • Page 1 Pipe Inspection Camera with Locator User Manual Model No:S8958MRT ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product Amazon After-sale: support@sanyipace.com Website After-sale: service@sanyipace.com...
  • Page 2 ● Scan this QR code to get the electronic version of the instruction in English. ● Scannen Sie diesen QR -Code, um die elektronische Version der Anweisung auf Deutsch abzurufen. ● Scannez ce code QR pour obtenir la version électronique de l'instruction en Français.
  • Page 3: Table Of Contents

    Catalog 1. Notice ......................1 2. Scope of Product Use ................1 3. Product Specification ................1 4. Monitor Buttons Operation ..............3 5. How to fix the stand ................5 6. Cable Coil and Distance Counter ............6 7. Camera Built-in 512Hz Transmitter ............ 7 8.
  • Page 4: Notice

    1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. e.
  • Page 5 Camera pipe pulley: 4.25in*1.8in/108mm*45mm Cable diameter and material: 0.2in/5mm diameter Semi-rigid ---Monitor Screen--- Size: 9-inch Camera/monitor picture: IPS LCD color Function: Video recording, Audio recording, capture photos, 5X digital zoom, Battery voltage display, Distance counter, 512Hz transmitter, keyboard input (support English), etc. Monitor input voltage: DC 12V SD card: package includes 16GB card, support max 128GB Display resolution: 1024*600 IPS...
  • Page 6: Monitor Buttons Operation

    4. Monitor Buttons Operation Built-in microphone, if you want to play video with sound, please play it on a Display Operation: Battery Charger: When the display shows that the power is lower than 9V or the “Low Battery” indicator light flashes, please recharge the device. ②...
  • Page 7 - Menu Settings (need to exit REC mode): Press the "MENU/EXIT" key to enter the menu settings. Press "<" ">" to select, press "Rec/-" to confirm, and press "EXIT" to return. Allow operating time setting/playback setting/display setting/recording setting/system setting. - How to Record Video: Press "REC/-"...
  • Page 8: How To Fix The Stand

    5. How to fix the stand...
  • Page 9: Cable Coil And Distance Counter

    6. Cable Coil and Distance Counter 5mm/0.2inch semi-rigid cable was coiled in the cable reel. It is easy to operate, just pull to release cable and push back to coil the cable. Before using this function, please press the CLEAR button to clear the counter information.
  • Page 10: Camera Built-In 512Hz Transmitter

    7. Camera Built-in 512Hz Transmitter Camera probe size details: The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m...
  • Page 11: 2Hz Locator Detector

    8. 512HZ Locator Detector The detector locator has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the direction and position of the transmitter. The detector locator has two detecting modes: far mode and near mode. Firstly, open the sensitivity to the strongest gear, and switch to far mode (about 16.4ft/5m) to detect and find the signal source, adjust the sensitivity knob, \when its signal is up to the full strongest signal position (far mode),...
  • Page 12: Battery & Charger

    Detector Locator Technical Parameters: Receiver Frequency: 512Hz Detect Distance: about 16.4ft/5m Battery: 3.7V 3000MAH built-in lithium battery Charger: 5V 0.5A Charger time: about 6 hours Battery Indicator: 4 gear, it is flashing when battery is low Battery working time: about 10 hours Signal strength: 6 gear Speaker: support Detect Mode: Far/ Near...
  • Page 13: Device Installation

    The steps of charging are as follows: a. Take out the DC adapter from the box. b. Connect the DC adapter port to the charging port (on the back of the monitor). c. Plug the DC adapter into 100-240V AC, when the indicator light is in red, it means it is charging.
  • Page 15: Structure & Accessories

    11. Structure & Accessories ①Monitor and keyboard *1 ②16GB SD Card*1 ③User manual * 1 ④Metal Bracket * 1 ⑤Fibreglass Cable coil * 1 ⑥Camera head * 1 ⑦4.5in/108mm Pipe Pulley*1 ⑧1.5in/38mm Protective Cover*1 ⑨DC Adapter * 1 ⑪512Hz Locator * 1 ⑩Screwdriver*1 12.
  • Page 16: Warranty

    24 hours a day. If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Go to our website to download the user manual or view more products: https://www.sanyipace.com Website After-sale: service@sanyipace.com Amazon After-sale: support@sanyipace.com Facebook: Sanyipace WhatsApp: +86 137 1399 9105...
