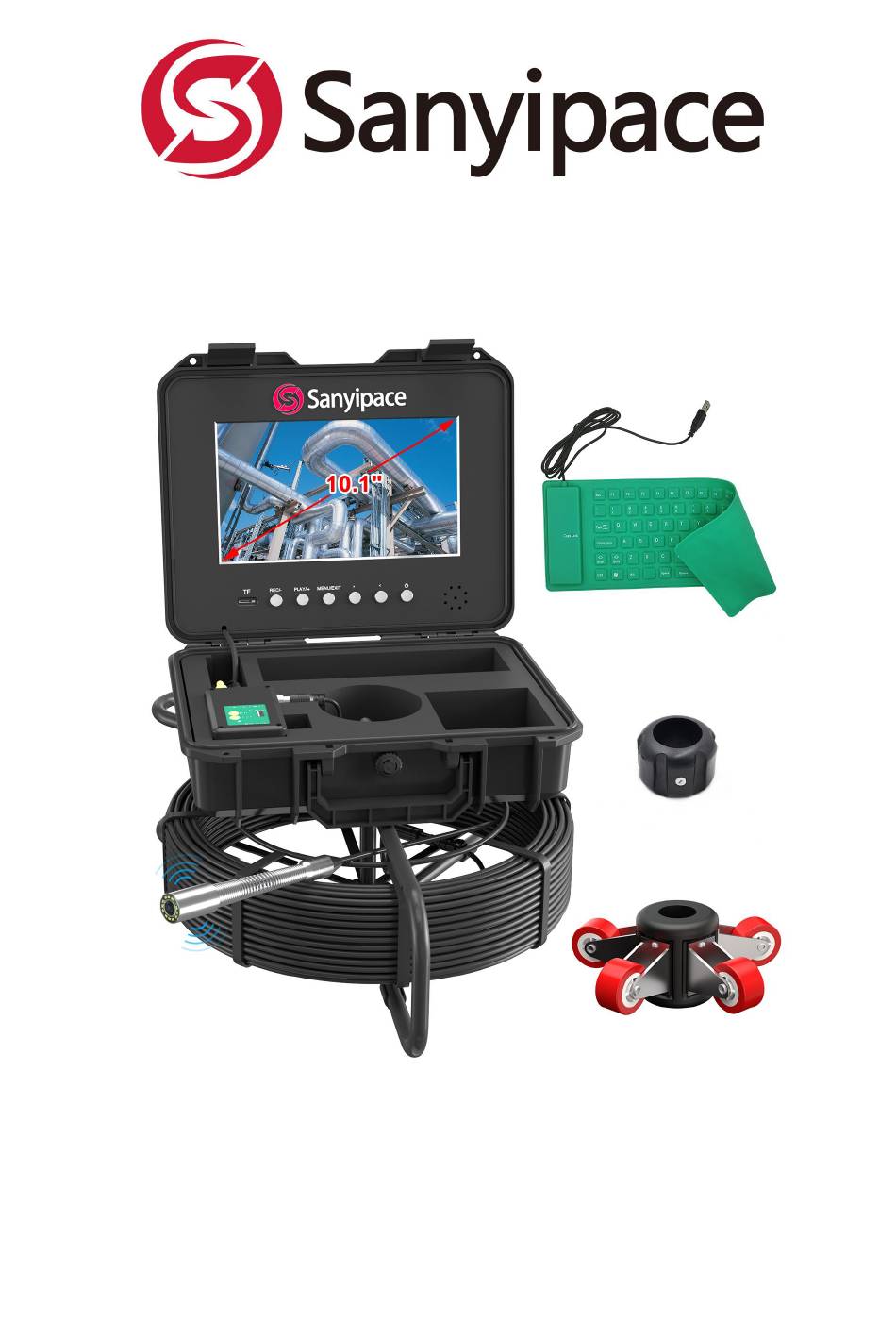

- Page 1 Sewer Inspection Camera System User Manual Model No：F5800ADJKABTX ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Note ......................1 2. Scope of Product Use ................1 3. Product Specification ................1 4. LCD Monitor Operation ................ 3 5. Counter Function ...................5 6. Keyboard Input ..................5 7. Battery & Adapter .................. 6 8. Camera with Self-leveling Function & 512Hz Transmitter ....7 9. -
Page 3: Note
1. Note a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. e. - Page 4 harder high elastic cable; 164ft/50m of 0.28in/7mm hardest high elastic cable (optional) ---Monitor Screen--- Size: 10.1-inch Camera/monitor picture: IPS LCD color Function: Video recording, audio recording, speaker, capture photos, 5X digital zoom, battery level display, depth counter, 512Hz transmitter, self-leveling, keyboard input (support English), etc. Monitor input voltage: DC 12V SD card: package includes 16GB card, support max 128GB Display resolution: 1024*600 IPS...
-
Page 5: Lcd Monitor Operation
4. LCD Monitor Operation TF card: including 16GB, maximum support 128GB card Built-in microphone and speaker Display Operation : - Turn On Connect all the cables of the device, turn on the battery switch button and press the power button on the screen, and the system starts. - Menu Settings (need to exit REC mode): Press the "MENU/EXIT"... - Page 6 - How to Record Video: Press "REC/-" to start recording (video with audio), press again to stop recording. - How to Playback Images/Videos: Press "PLAY/+" to enter image browsing, press it again to enter video playback, press "<" ">" button to select, press "REC/-" to play, press "REC/-"...
-
Page 7: Counter Function
5. Counter Function Before using this function, please press the CLEAR button or F7 key to clear the counter information. You can toggle the display in feet or meters by pressing the F4 key. It will start counting feet/meters when the coil rotates, and display it on the screen in real time. -
Page 8: Battery & Adapter
④ F6 key: LED brightness adjustment (0-5 gear) ⑤ F7 key: Clear counter ⑥ F9 key: Factory setting (Press F9 then input password “3131” to enter settings, press ⑦ UP/Down to select cable's diameter and meters, Left/Right to select model (5800 is the correct model), then press F9 to save settings and exit) The function of the keyboard: During working, you can input text/symbols/numbers to mark events. -
Page 9: Camera With Self-Leveling Function & 512Hz Transmitter
Note: To ensure a longer battery life, please charge it in time; otherwise, the battery may be damaged and cannot be recharged. The fully charging time is about 5-6 hours. 8. Camera with Self-leveling Function & 512Hz Transmitter Camera probe size details:... - Page 10 The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m Self-leveling can be defined as the ability of any instrument to level itself regardless of the angle of inclination.
-
Page 11: Cable Coil
12 adjustable LED lights on the camera probe There are 5 modes to adjust the brightness, press the LED button on the battery control box or the F6 key on the keyboard to adjust. 9. Cable Coil New stable and strong coil structure with steel bearing inside, can easily release or coil the cable with less time and force. -
Page 12: Device Installation
10. Device Installation <A> Connect the Y-type split video cable on the screen to the battery box port as shown in the picture. <B-C> Connect the video cable from the coil to the battery box as shown in the picture below, and tighten it. <D>... -
Page 13: Structure & Accessories

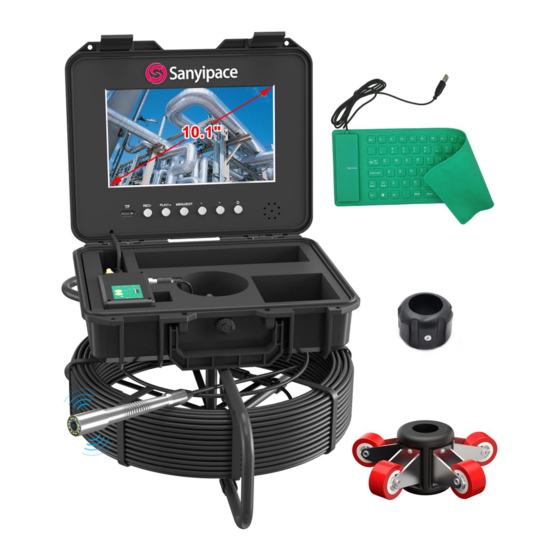

11. Structure & Accessories ①Plastic Box*1 ②10.1-inch IPS Screen*1 ③16GB SD Card*1 ④Metal Bracket *1 ⑤Lithium Battery *1 ⑥Camera*1 ⑦Fiberglass Cable*1 ⑨5in/130mm Pipe Pulley*1 ⑧Keyboard*1 ⑩1.5in/38mm Protective Cover*1 ⑪DC Adapter*1 ⑫Screwdriver*1 ⑬Instruction*1... -
Page 14: Trouble & Troubleshooting
F6 to adjust the brightness; b. Tighten or loosen the camera probe slowly to LED lights not working check if it works; c. Use a voltage tester to test all connectors, find out the damaged part and contact Sanyipace to deal with it. -
Page 15: Warranty
24 hours a day. If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Go to our website to download the user manual or view more products: https://www.sanyipace.com Website After-sale: service@sanyipace.com Amazon After-sale: sanyimrchan@gmail.com Facebook: Sanyipace WhatsApp: +86 137 1399 910...
