HD Sewer Pipe Inspection Camera
User Manual
-----------------------------------------------------------------------------------------------------------------------------------------
Please contact us at the first time if you got issues with the product
SanyiMrchan@gmail.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F927ADFB and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanyipace F927ADFB

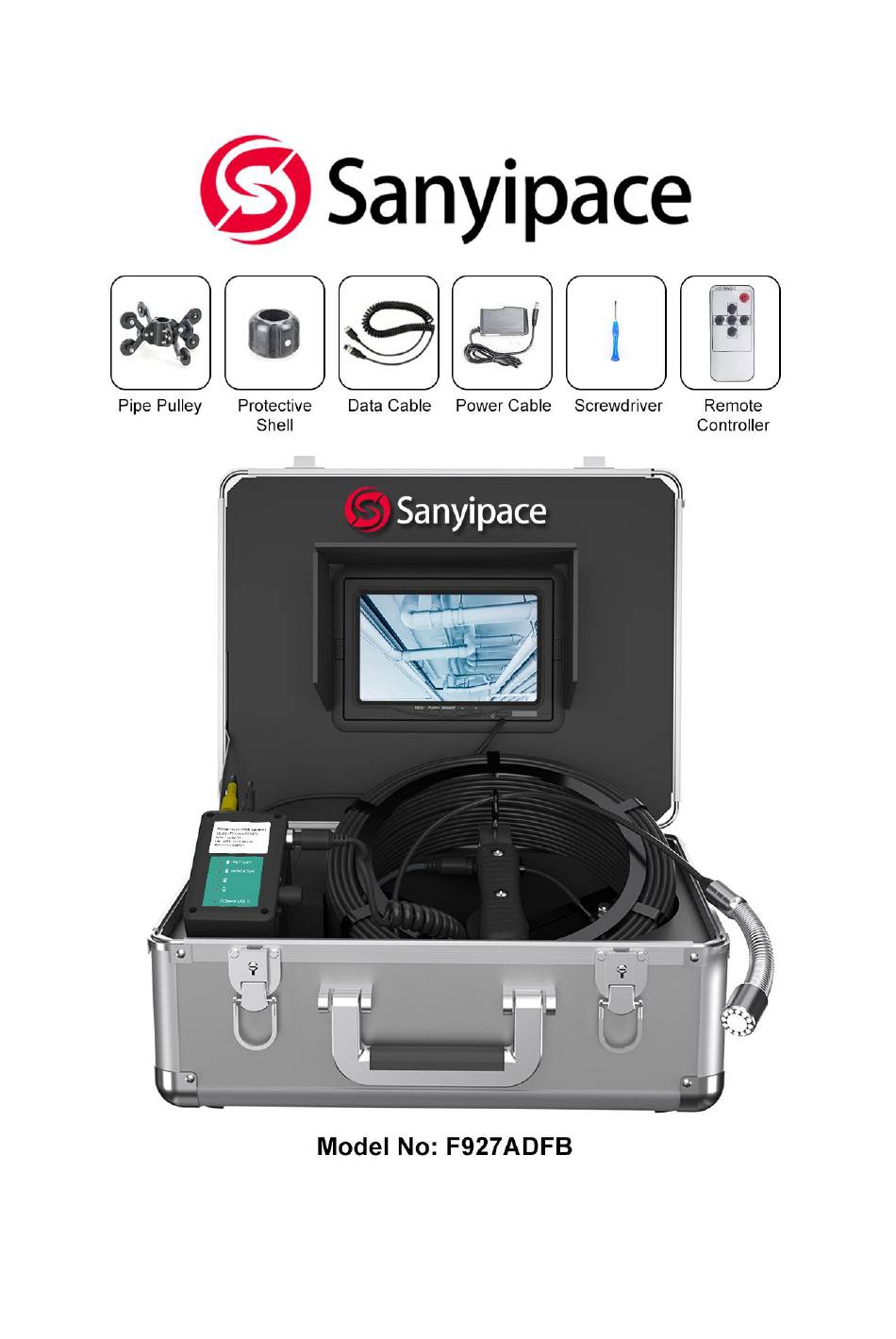

  • Page 1 HD Sewer Pipe Inspection Camera User Manual ----------------------------------------------------------------------------------------------------------------------------------------- Please contact us at the first time if you got issues with the product SanyiMrchan@gmail.com...
  • Page 2: Table Of Contents

    Catalog 1. Note ................Page 3 2. Range of Product Use ..........Page 3 3. Product Specification ..........Page 3 4. Product Parts and Operation ........Page 4 (1) Display ..............Page 4 (2) Camera (IP68 waterproof) ........Page 6 (3) Cable Coil (20m/30m/50m length optional) .....Page 7 (4) 4500mah Battery .............
  • Page 3: Note

    1. Note 1:Please read this user manual carefully before using this product . 2:Do not throwing or pressure with strength . 3:Do not dismantling the machine without permission. 4:Please copy your information before connection the memory card . 5:Do not suddenly cut off the power during recording and playing. This may damage the product and video files.
  • Page 4: Product Parts And Operation

    Display port: power input /Video. Display video format: AVI with Year,Month,Date,Time and Seconds Display operate: button and remote control . Working temperature: -20-60 ℃ . Storage temperature: -30-80 ℃ . ---Charger--- Charger : 100VAC-240VAC DC 12.6V 1000MA. Battery: lithium battery 4500mAH. Battery continuous working time: about 6-8 hours.
  • Page 5 limit, and at the 6th time press to return to normal -How to record a video: Pres “Rec/- ” to start recording , press “Rec/- ” again to stop. -How to take a snapshot: Pres “>” to take photo quickly -Video Browsing: press “PLAY/+”...
  • Page 6: Camera (Ip68 Waterproof)

    There is an SD card slot on the left side of the screen. press the card to pop it out (2) Camera (IP68 waterproof)
  • Page 7: Cable Coil (20M/30M/50M Length Optional)

    (3) Cable Coil (20m/30m/50m length optional) put the cable on the hook of handle, pull out to release or push back to coil the cable. (4) 4500mah Battery...
  • Page 8: Device Charger

    (5) Device Charger When the battery power is low,please recharge it. Connect the charger to the battery (CHARGER port) , and another end connects to the socket Notes: To make sure the battery using age longer, please recharge it timely; otherwise, maybe the battery can’t be recharged. (6) Remote Control Please be noted that the clear insulating card protects battery, need to remove it before use...
  • Page 9: Accessories List

    5. Accessories list ①aluminum box *1 ②display *1 ③battery*1 ④connection cable ⑤cable coil *1 ⑥camera head * 1 ⑦camera protective cover * 1 ⑧pipe pulley * 1 ⑨16G SD card ⑪remote controller ⑩charger*1 ⑫mini screwdriver 6. Device Installation...
  • Page 10: Failure And Diagnosis

    7. Failure and Diagnosis Common problems / Solutions faults 1, Check whether each connector is connected indicator light on and the camera needs to be tightened. No image 2, Check if the battery is fully charged and try again after it is fully charged . 1, Check whether each connector are connected No power correct .
  • Page 11 -----Contact Us----- Go to our website to download use manual or check more Products: https://www.sanyipace.com/ Our Email: SanyiMrchan@gmail.com We support spare parts replacing, please contact us at the first time when...
