- Page 1 Operator's Manual Serial Number Range Superlift ® from 28240 to SLA16-61164 from SLA16-61165 to Advantage SLA16G-64899 from SLAG-64900 to SLAG-70696 from SLAP-85613 to SLAP-85612 Original Instructions Third Edition Fourth Printing Part No. 97550GT...
-
Page 2: Table Of Contents
Specifications ............25 E-mail: awp.techpub@terex.com Copyright © 1994 by Genie Industries Third Edition: Fourth Printing, July 2024 Genie is a registered trademark of Terex South Dakota, Inc. in the U.S.A. and many other countries. Genie Superlift Advantage Part No. 97550GT... -
Page 3: Introduction
Third Edition • Fourth Printing Operator's Manual Introduction Intr oducti on Danger Failure to obey the instructions and safety rules in this manual will result in death or serious injury. Do Not Operate Unless: You learn and practice the principles of safe ... -
Page 4: Safety Rules
Operator's Manual Third Edition • Fourth Printing Safety Rules Safety R ules Fall Hazards Do not raise the load unless the load handling attachment is properly secured to the machine. Do not use as a personnel lifting platform or step. Do not use blocks to level Do not stand on the load handling attachments. -
Page 5: Lifting Hazards
Third Edition • Fourth Printing Operator's Manual Safety Rules Electrocution Hazards Do not place ladders or scaffolding against any part of the machine. This machine is not electrically insulated and will not provide protection from contact with or proximity to electrical current. Keep away from the machine if it contacts energized power lines. -
Page 6: Crushing Hazard
Operator's Manual Third Edition • Fourth Printing Safety Rules Crushing Hazard Adjustable Flat Forks Do not raise the load unless the snap Do not raise if the load is not properly centered on pins are properly inserted in the the load handling attachment. forks. -
Page 7: Damaged Machine Hazards
Third Edition • Fourth Printing Operator's Manual Safety Rules Damaged Machine Hazards Decal Legend Do not use a damaged or Genie product decals use symbols, color coding malfunctioning machine. and signal words to identify the following: Safety alert symbol—used to Do not use a machine with a alert personnel to potential worn, frayed, kinked or damaged... -
Page 8: Legend

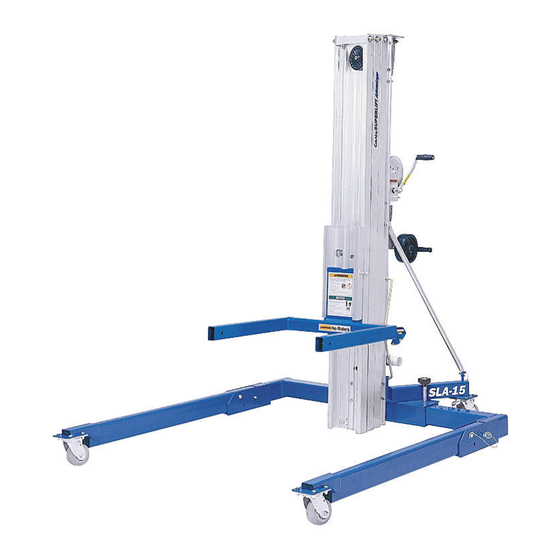

Operator's Manual Third Edition • Fourth Printing Legend Leg end Winch Leg swivel caster 14 Stabilizer brace Cable Straddle base 15 Standard base Mast 10 Arm lock knob 16 Base swivel/lock caster with brake Carriage 11 Leg retaining pin 17 Load handling attachment Adjustable arm 12 Stabilizer (if equipped) retaining pin... - Page 9 Third Edition • Fourth Printing Operator's Manual Legend Standard Forks Adjustable Forks Adjustable Flat Forks Boom 18 Mast brace 19 Loading wheels/steer handles 20 Snap pin 21 Lifting shackle 22 Fork mounting bracket 23 Fork Extensions 24 Fork extension retaining pin Part No.
-
Page 10: Pre-Operation Inspection
Operator's Manual Third Edition • Fourth Printing Pre-operation Inspection Pre-operati on Ins pec tion Pre-operation Inspection Fundamentals The pre-operation inspection is a visual inspection performed by the operator prior to each work shift. The inspection is designed to discover if anything is apparently wrong with a machine before the operator performs the function tests. - Page 11 Third Edition • Fourth Printing Operator's Manual Pre-operation Inspection Pre-operation Inspection Check entire machine for: Cracks in welds or structural components Be sure that the operator’s manual is complete, legible and in the storage container Dents or damage to machine located on the machine.
-
Page 12: Function Tests
Operator's Manual Third Edition • Fourth Printing Function Tests Function Test Fundamentals Function T ests The function tests are designed to discover any malfunctions before the machine is put into service. The operator must follow the step-by-step instructions to test all machine functions. Do Not Operate Unless: A malfunctioning machine must never be used. - Page 13 Third Edition • Fourth Printing Operator's Manual Function Tests Function Tests Straddle base Place a 2 inch / 5.1 cm block under one leg Select a test area that is firm, level and free of swivel caster. hazards. Loosen the arm lock knob on the opposite Note: Ensure the carriage hold-down bar is adjustable arm.
-
Page 14: Load Handling Attachments
Operator's Manual Third Edition • Fourth Printing Function Tests Load Handling Attachments Adjustable Forks and Adjustable Fork Options Standard Forks and Standard Fork Options Place the forks inside the carriage. Place the forks inside the carriage. Insert the retaining pin. Insert the retaining pin. - Page 15 Third Edition • Fourth Printing Operator's Manual Function Tests Adjustable Flat Forks Test One-Speed Winch Operation Place the fork mounting bracket inside the Install a load handling attachment. carriage. Raise the carriage by firmly grasping the winch Insert the retaining pin. handles and rotating them towards the mast.
- Page 16 Operator's Manual Third Edition • Fourth Printing Function Tests Test Mast Sequencing Test Two-Speed Winch Operation Install a load handling attachment. Install a load handling attachment. Raise the carriage to full height by firmly grasping the winch handles and rotating them Shift the winch to the slow speed.
-
Page 17: Workplace Inspection Fundamentals
Third Edition • Fourth Printing Operator's Manual Workplace Inspection Workplace Inspection Checklist Workpl ace Inspec tion Be aware of and avoid the following hazardous situations: drop-offs or holes bumps, floor obstructions, or debris sloped surfaces Do Not Operate Unless: ... -
Page 18: Operating Instructions
Operator's Manual Third Edition • Fourth Printing Operating Instructions Operati ng Instr ucti ons Fundamentals The Operating Instructions section provides instructions for each aspect of machine operation. It is the operator’s responsibility to follow all the safety rules and instructions in the operator’s, safety and responsibilities manuals. - Page 19 Third Edition • Fourth Printing Operator's Manual Operating Instructions Setup Moving Machine with a Load It is best to move the machine on the work site Select an area that is firm, level and free of with no load. Moving a raised load should be obstructions.
-
Page 20: Load Capacity Charts
Operator's Manual Third Edition • Fourth Printing Load Capacity Charts Load C apacity Charts Forks Load Positioning Instructions Determine the weight of the load and the location of its load center. Measure to the load center from the side of the Observe and Obey: load that will be closest to the carriage. - Page 21 Third Edition • Fourth Printing Operator's Manual Load Capacity Charts Boom Maximum Load Centers (measure from front of carriage) Load Positioning Instructions Standard Forks 24 in 61 cm Determine the weight of the load and the Adjustable Forks 24 in 61 cm location of its load center.
-
Page 22: Transport And Lifting Instructions
Operator's Manual Third Edition • Fourth Printing Transport and Lifting Instructions Trans port and Lifti ng Instr ucti ons Place the machine against the vehicle. Use proper lifting techniques to load the machine into the transport vehicle. Be sure to check that the carriage is locked in the lowered position. -
Page 23: Decals
Third Edition • Fourth Printing Operator's Manual Decals Inspection for Decals with Words Decals Part No. Decal Description 32716 Notice - Boom Setup Determine whether the decals on your machine 32717 Warning - Boom Safety have words or symbols. Use the appropriate inspection to verify that all decals are legible and 32718 Warning - Flat Forks Safety... - Page 24 Operator's Manual Third Edition • Fourth Printing Decals Genie Superlift Advantage Part No. 97550GT ®...
- Page 25 Third Edition • Fourth Printing Operator's Manual Decals Inspection for Decals with Part No. Decal Description Symbols 52983 Cosmetic - Superlift Advantage Logo 82487 Label – Read the Manual Determine whether the decals on your machine 82964 Warning - No Riders have words or symbols.
- Page 26 Operator's Manual Third Edition • Fourth Printing Decals Genie Superlift Advantage Part No. 97550GT ®...
-
Page 27: Specifications
Third Edition • Fourth Printing Operator's Manual Specifications Specific ati ons Model SLA-5 SLA-10 SLA-15 SLA-20 SLA-25 78.50 in 78.50 in 78.50 in 78.50 in 78.50 in Height, stowed 31.50 in 31.50 in 31.50 in 31.50 in 31.50 in Standard base, Width 80 cm 80 cm 80 cm... - Page 28 Operator's Manual Third Edition • Fourth Printing Specifications Dimensions SLA-5 SLA-10 SLA-15 SLA-20 SLA-25 Standard Forks forks down 4 ft 10.50 in 9 ft 9 in 14 ft 7.50 in 19 ft 6 in 24 ft 4 in 1.5 m 4.5 m 5.9 m 7.4 m...
