Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
POWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL
OFF LEVEL
CONSTRUCTION
MOTOR HOUSING
VOLUTE
IMPELLER
SHAFT
DISCHARGE
© 2024, BLUE ANGEL/Scott Fetzer Company
AC SPECIFICATIONS
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1/2 HP
15 A (minimum)
11 ½ in. high x 9 ¾ in. base
Approximately 9 in.
Approximately 4 in.
AC
DC
Coated Steel
Cast Iron
Glass Reinforced Thermoplastic
Steel
Stainless Steel
1-1/2 in. NPT

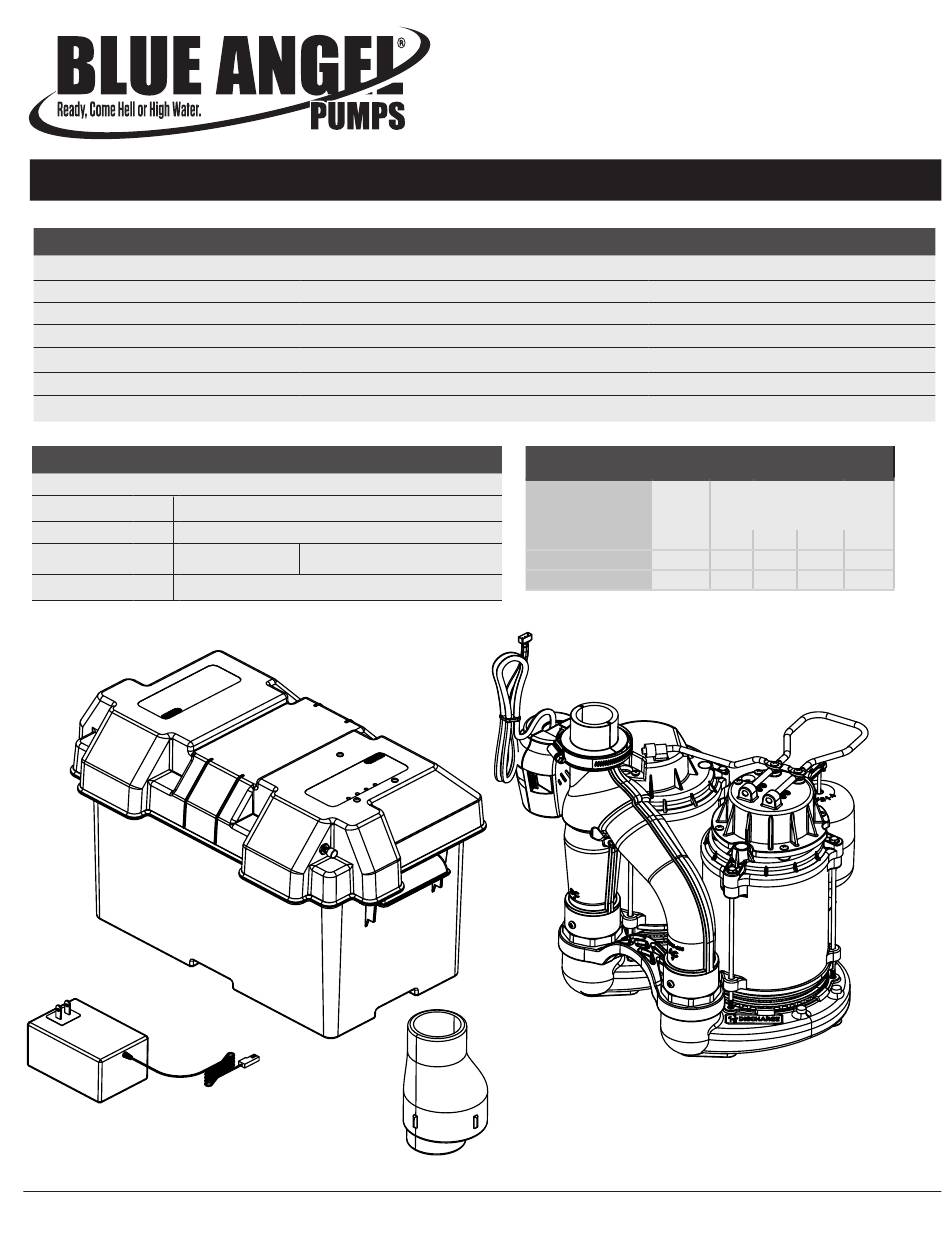

Submersible Sump Pump System
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Model
F33SSn
F50SSn
F33SSn/F50SSn
* Battery not included. A Wayne WSB1275 75 Amp
Hour battery is recommended
Intended for Indoor Use Only
www.blueangelpumps.com
F33SSn/F50SSN
DC SPECIFICATIONS
12 V, DC*
Permanent Magnet DC
100 Watts
15 A (minimum)
11 ½ in. high x 9 ¾ in. base
10-12 in.
N/A
PERFORMANCE GAL/HR
Discharge Head (Lift Distance)
HP
0 ft
5 ft
1/3
4500
3810
1/2
5100
4500
12 V DC
2700
2100
670006W-026 J 07/24
10 ft
15 ft
3060
2220
3840
3060
1500
660
Advertisement
Table of Contents
Related Manuals for Blue Angel Pumps F33SSn
Summary of Contents for Blue Angel Pumps F33SSn
- Page 1 Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. Operating Instructions and Parts Manual F33SSn/F50SSN SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS...
-
Page 2: System Description
Operating Instructions and Parts Manual SYSTEM DESCRIPTION DO NOT REMOVE POWER SUPPLY CORD and strain relief or connect conduit directly to the pump. This product is fully assembled and pre-plumbed 1/2 & 1/3 HP primary & MAKE SURE THE POWER SUPPLY HAS A FUSE OR CIRCUIT BREAKER rated to 12 Volt backup sump system. -
Page 3: California Proposition
Operating Instructions and Parts Manual F33SSn/F50SSN IMPORTANT SAFETY INFORMATION (CONT’D) DO NOT LIFT OR CARRY THE SYSTEM BY THE POWER CORDS. Use the strap provided. DO NOT USE THIS SYSTEM IN MUD, SAND, CEMENT, OIL CHEMICALS, GREY WATER, OR ANY OTHER WATER THAT IS NOT CLEAR GROUND WATER. -
Page 4: Installation
Operating Instructions and Parts Manual 4. Clean the basin/pit of all debris. INSTALLATION 5. If using a basin, place the system directly on the bottom of the basin. To prevent damage set the system on a solid, level INSTALLATION OF THIS UNIT MAY TAKE SEVERAL HOURS. -
Page 5: Control Box Installation
Operating Instructions and Parts Manual F33SSn/F50SSN 3. The control box contains multi-colored indicator lights. CONTROL BOX INSTALLATION When AC power is present, the lights will indicate the charging state, and not reflect actual battery voltage, 1. Place battery in box, attach red cable to positive battery particularly with a defective battery. -
Page 6: Troubleshooting Warnings
Operating Instructions and Parts Manual TROUBLESHOOTING WARNINGS AC ROUTINE SUMP MAINTENANCE The pump system should be inspected 3-4 times per year for LET PUMP COOL FOR A MINIMUM OF 2 HOURS movement or buildup of debris on the switch or float. Reposi- BEFORE ATTEMPTING TO SERVICE. - Page 7 Operating Instructions and Parts Manual F33SSn/F50SSN AC TROUBLESHOOTING CHART Symptoms Possible Cause(s) Suggested Remedies Pump will not 1. Water level too low 1. Water must be at the appropriate level to activate switch start or run 2. Blown fuse or tripped circuit breaker 2.
- Page 8 Operating Instructions and Parts Manual DC ROUTINE SUMP MAINTENANCE Once a month, check the battery condition. To check battery condition follow steps Listed below: 1. Unplug the transformer. NOTE: An inexpensive hydrometer can be purchased at an automotive parts dealer. 2.
- Page 9 Operating Instructions and Parts Manual F33SSn/F50SSN ADDRESS PARTS CORRESPONDENCE TO: BLUE ANGEL Water Systems 101 Production Drive Harrison, OH 45030 U.S.A. REPAIR KITS REF. NO. DESCRIPTION PART NUMBER FLOAT KIT 60038-WYN1 TRANSFORMER 60194-WYN1 FLOAT CAGE 60187-001 LID ASSEMBLY 60184-BLU1 BACKUP PUMP...
- Page 10 This Limited Warranty can also be found online at www.blueangelpumps.com and in the documentation we provide with the Product. WHAT DOES THIS WARRANTY COVER? This Limited Warranty covers defects in materials and workmanship of Blue Angel sump pump models F33SSn and F50SSn (a “Product”) manufactured by Blue Angel/Scott Fetzer Company (“we”) for the Warranty Period as defined below.
