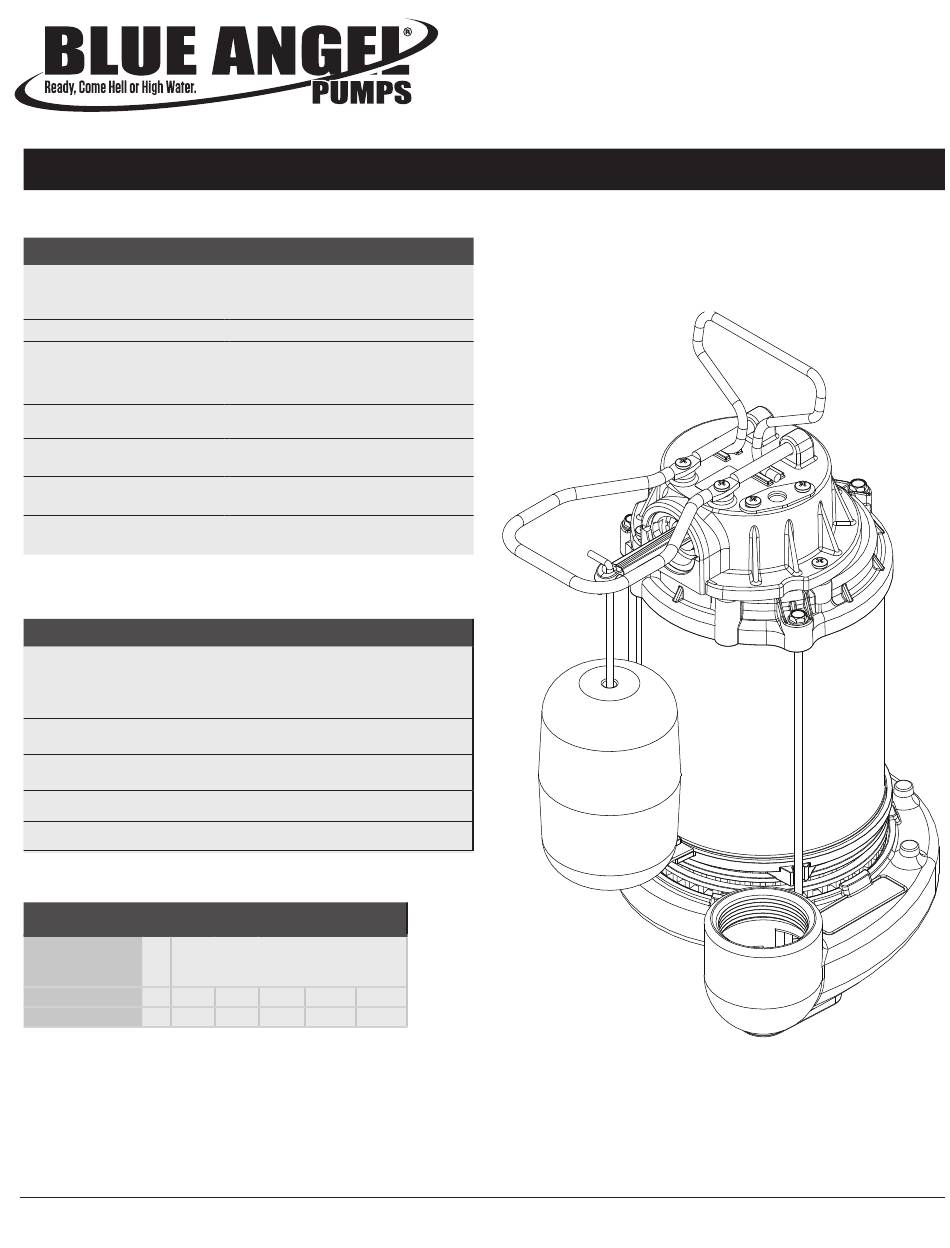

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONSTRUCTION
MOTOR HOUSING
Cast Iron (F50CIS, F33CIS)
Stainless Steel (SSF50S, SSF33S)
VOLUTE
Cast Iron
IMPELLER
Glass Reinforced Thermoplastic
SHAFT
Steel
DISCHARGE
1-1/2 in. NPT
PERFORMANCE GAL/HR
Model
HP
0 ft
F50CIS, SSF50S
1/2
5100
F33CIS, SSF33S
1/3
4600

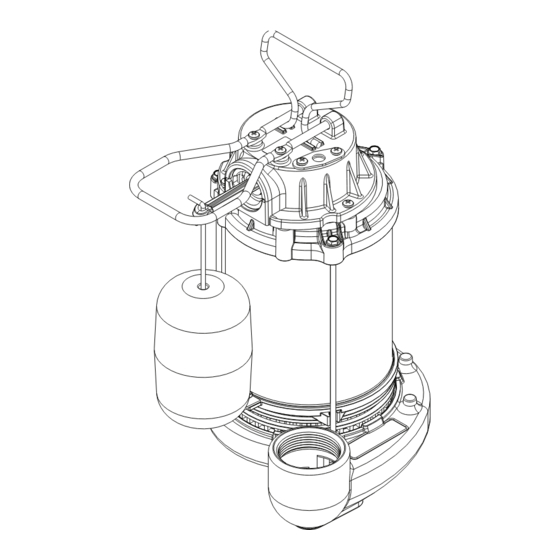

*Images are for illustration purposes only.
Not all models are show
© 2018, Blue Angel/Scott Fetzer Company
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1/2 HP ............ (F50CIS, SSF50S)
1/3 HP ........... (F33CIS, SSF33S)
15 A (minimum)
11-1/2 in. high x 9-3/4 in. base
Approximately 9 in.
Approximately 4 in.
Discharge Head (Lift Distance)
5 ft
10 ft
15 ft
20 ft
4500
3840
3060
2040
3810
3060
2220
1200
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Intended for Indoor Use Only
www.blueangelpumps.com
Submersible Sump Pump
600002W-026 F 1/20
