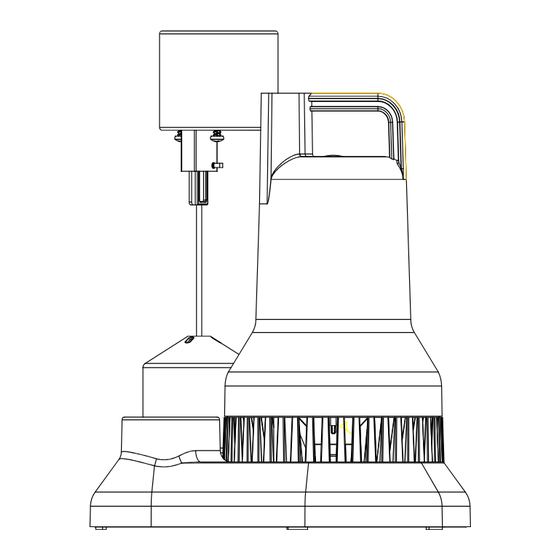

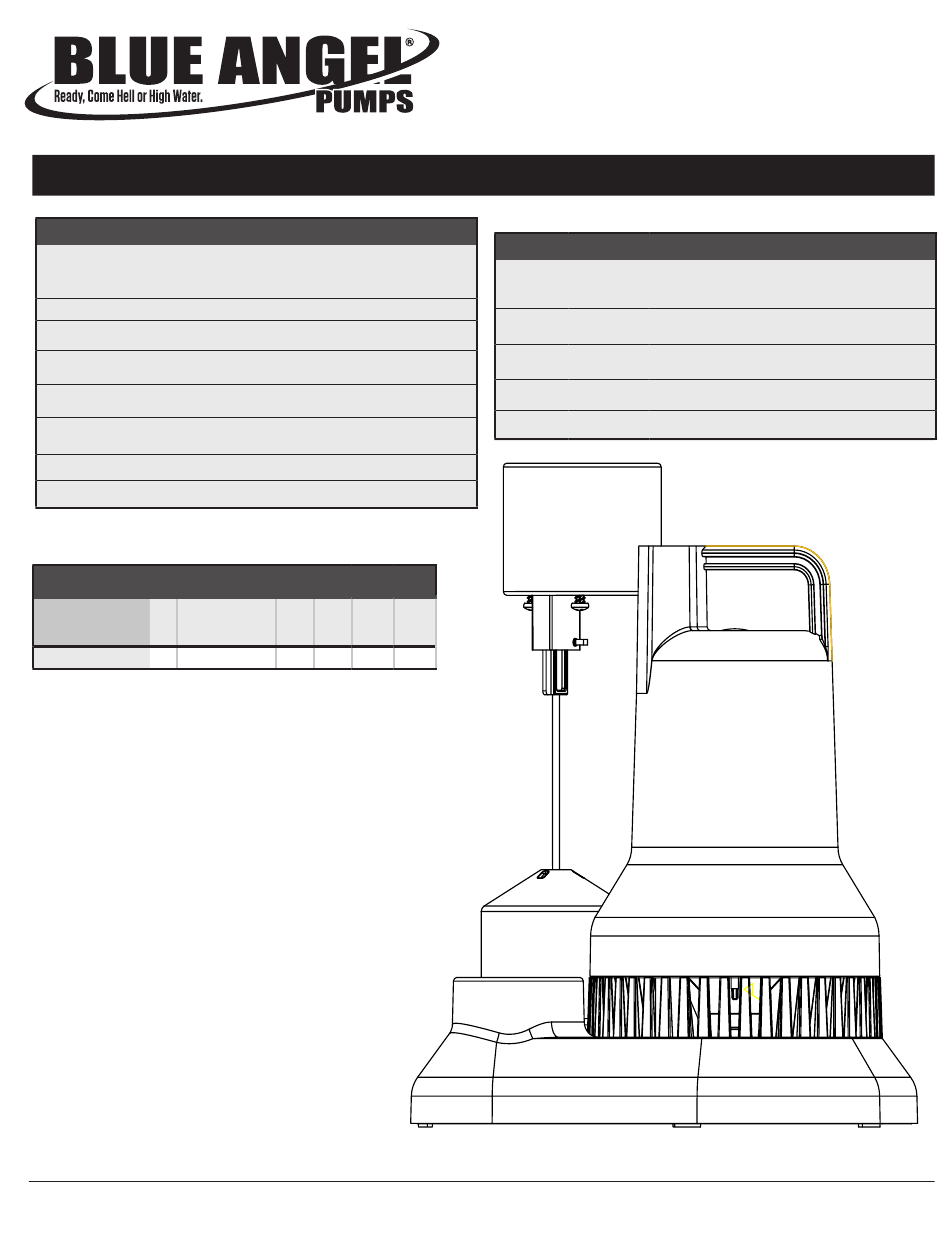

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
LIQUID TEMERATURE RANGE
CIRCUIT REQUIREMENTS
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
PERFORMANCE
Model
HP Discharge Head
VM33S
1/3
© 2018, Blue Angel/Scott Fetzer Company
120 V, 60 Hz
Single Phase, Dielectric Oil Filled
1/3 HP
40° F- 120° F
15 A (minimum)
11-1/2 in. high x 9 in. base
Approximately 7 in.
Approximately 3 in.
0 ft
5 ft
10 ft
Gal / hr
3750
3300
2718
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
MOTOR HOUSING
VOLUTE
IMPELLER
SHAFT
DISCHARGE
15 ft
1980
Intended for Indoor Use Only
www.blueangelpumps.com
Submersible Sump Pump
CONSTRUCTION
Thermoplastic
Thermoplastic
Glass Reinforced Thermoplastic
Stainless Steel
1-1/2 in. NPT
600003-026 B 08/18
VM33S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM33S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blue Angel Pumps VM33S

  • Page 1 Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. Operating Instructions and Parts Manual VM33S SPECIFICATIONS CONSTRUCTION POWER SUPPLY REQUIREMENTS...
  • Page 2: Safety Signal Words

    INSTALLATION MANUAL SUMP PUMP DESCRIPTION Sump pumps are automatic pumps used to remove ground water from sump pits. The most common application is for This pump is not designed to handle salt water, brine, laundry basement drainage to prevent flooding in residential buildings. discharge, water softener, sewage, grey water, or any other These sumps are designed to pump clear water only.
  • Page 3 INSTALLATION MANUAL NEVER HANDLE A PUMP or motor with wet hands or when standing on a wet or damp floor while the pump is plugged into the power supply. NE JAMAIS MANIPULER UNE POMPE ou un moteur de pompe avec CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION les mains mouillées ou debout dans l’eau ou sur une surface WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR...
  • Page 4 INSTALLATION MANUAL NOTES DO NOT USE THIS PUMP IN MUD, SAND, CEMENT, OIL CHEMICALS, GREY WATER, OR ANY OTHER WATER THAT IS NOT CLEAR GROUND WATER. _____________________________________________ NE PAS UTILISER CETTE POMPE DANS LA BOUE, LE SABLE, LE CIMENT, LES PRODUITS CHIMIQUES À L’HUILE, DE L’EAU GRISÂTRE OU TOUTE AUTRE EAU QUI N’EST PAS DE L’EAU CLAIRE SOUTERRAINE.
  • Page 5: Specifications

    INSTALLATION MANUAL surface. Do not place pump directly on clay, earth, gravel or Vertical Master Submersible Sump sand. A brick or block must be installed under the pump to provide a solid base. 6. Position pump so the switch is away from the inlet so switch is clear from incoming water.
  • Page 6: Troubleshooting Warnings

    INSTALLATION MANUAL TROUBLESHOOTING WARNINGS 1. Submersible pump models have permanently lubricated bearings and require no additional lubrication. 2. Submersible pumps contain dielectric oil for cooling. ALWAYS DISCONNECT THE PUMP FROM POWER SUPPLY before Dielectric oil can be harmful to the environment. Follow installing, servicing or making any adjustments.
  • Page 7 INSTALLATION MANUAL TROUBLESHOOTING CHART (CONTINUED) Symptoms Possible Cause(s) Suggested Remedies Pump operates 1. Worn bearings 1. Replace pump noisily or vibrates 2. Impeller broken 2. Replace pump excessively 3. Piping attachments to building 3. Install rubber coupling (available at local hardware stores) to structure too rigid or too loose isolate pump vibration from discharge plumbing Pump will not...
  • Page 8: Replacement Parts

    REPLACEMENT PARTS REPAIR KITS REF. NO. DESCRIPTION MODELS VM33S VM Switch Kit 60051-WYN1 Power Cord Kit 62003-WYN1...
  • Page 9 LIMITED WARRANTY For one year for VM33S from the date of purchase, from an authorized dealer, Blue Angel Pumps will repair or replace, at its option for the original purchaser, any part or parts of its Sump Pumps or Water Pumps (“Product”) found upon examination by Blue Angel Pumps to be defective in materials or workmanship.
