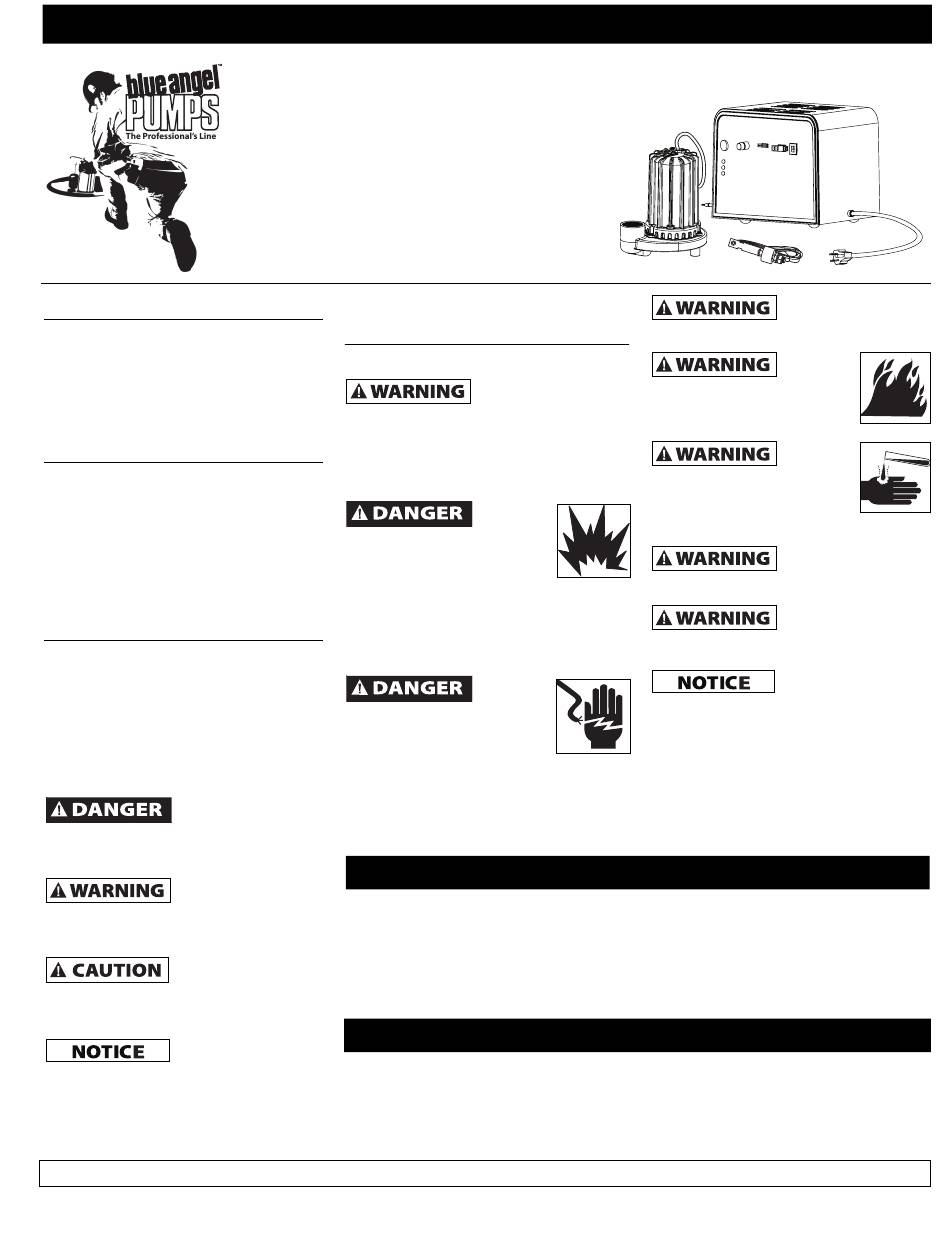

Operating Instruction and Parts Manual

Description

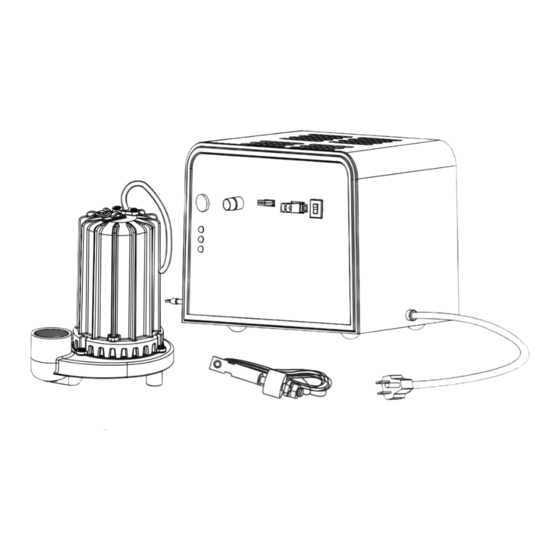

The BSP45 is a battery operated back-up
sump pump. It does not replace a
regular pump. It is designed to provide
protection in the event household
electrical power fails or main pump fails.

Unpacking

Inspect this unit before it is used.
Occasionally, products are damaged
during shipment. If the pump or
components are damaged, return the
unit to the place of purchase for
replacement. Failure to do so could
result in serious injury or death.

Safety Guidelines

This manual contains information that
is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe the
following symbols.
Danger indicates an
imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
Warning indicates a
potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
Caution indicates a
potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Notice indicates
important
information, that if not followed, may
cause damage to equipment.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2008 Blue Angel™ Pumps
Please read and save these instructions. Read carefully before attempting
to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety information. Failure to comply
with instructions could result in personal injury and/or property damage!
Retain instructions for future reference.
24-Volt Backup
Sump Pump
General Safety
Information
CALIFORNIA PROPOSITION 65
contain chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm. Wash
hands after handling.
GENERAL SAFETY
Do not use to pump
flammable or explosive fluids
such as gasoline, fuel oil,
kerosene, etc. Do not use in a
flammable and/or explosive
atmosphere. Pump should only be used
to pump clear water. Fatal injury and/or
property damage could result.
If the basement has water or
moisture on the floor, do not
walk on wet area until all
power is turned off. If the shutoff box
is in the basement, call an electrician.
Remove pump and either repair or
replace. Failure to follow this warning
could result in fatal electrical shock.

Pump Specifications

Power supply requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120V, 60 Hz
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Perminent Magnet DC Motor
Normal water removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 GPM @ 5 Feet @ 26V DC
Liquid temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°F to 120°F
Circuit requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 amps AC (min)
Pump Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 in. high x 8
Pump run time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Seconds

Pump Construction

Motor housing, volute, seal plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cast Iron
Impeller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Thermoplastic
Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Float switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Reed Style
For parts, product & service information
visit www.blueangelpumps.com
qualified electrician.
This product or its
Do not expose battery to
power cord may
sparks or flames as an
explosion or fire could result.
Battery acid is corrosive.
Avoid spilling on skin or
clothing. Eye protection must
be worn when handling the battery.
primary sump pump discharge.
required.
pump clear water. This pump is not
designed to handle effluent, salt
water, brine, laundry discharge or any
other application which may contain
caustic chemicals and/or foreign
materials. Pump damage may occur if
used in these applications and will void
warranty.
BSP45
All wiring must be
performed by a
A check valve must
be used on the
A ground fault
circuit interrupter is
This pump must
only be used to
3
/
in. base
4
1
/
in. NPT
2
353601-002 7/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Professional BSP45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blue Angel Pumps Professional BSP45

  • Page 1 BSP45 Operating Instruction and Parts Manual Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
  • Page 2 Operating Instructions and Parts Manual Battery Information CHART 1 - STANDBY POWER If battery acid contacts your PUMPING CAPACITY The system is designed to operate most eye(s), flush with cold running water efficiently with sealed lead acid (SLA) Amp Hours Total Gallons for 10 minutes and seek immediate Per Battery...
  • Page 3 BSP45 Pump Installation Installation of this unit may take several hours. Before disabling your Floor main pump, have ready an appropriate Joist means of evacuating the sump. Slope Ridgid 1. Turn power to main pump off. Pipe Down 2. Pump must be installed using 1 ”...
  • Page 4 Operating Instructions and Parts Manual Pump Installation (Continued) 3. A check valve will be required in Floor the discharge line of BOTH the Joist “Y” Rigid PVC Main AC pump and the BSP45 Connector Pipe pump to prevent recirculation of water into the sump pit.
  • Page 5 BSP45 PS/BC Installation CHART 2 - PS/BC STATUS LIGHTS LIGHT ON WHEN ACTION REQUIRED (Continued) Low Voltage or Blown Fuse Check Fuse or 1. Place battery box within six feet of Replace Batteries the sump and a 115 VAC separately Yellow Battery OK None...
  • Page 6 Operating Instructions and Parts Manual Maintenance 5. If pump operates normally, plug 4. Unplug the main pump and fill sump (Continued) PS/BC into wall outlet, turn on main with water until back up pump turns pump. If pump fails to operate on.
  • Page 7 BSP45 For Replacement Parts, call 1-888-636-6628 Please provide following information: Address parts correspondence to: -Model number Blue Angel -Serial number (if any) 101 Production Drive -Part descriptions and number as shown in parts list Harrison, OH 45030 U.S.A. Ref. Part No.
  • Page 8 Operating Instructions and Parts Manual Limited Warranty For three years from the date of purchase, Blue Angel™ Pumps will repair or replace, at its option, for the original purchaser any part or parts of its Sump Pumps or Water Pumps (“Product”) found upon examination by Blue Angel™ to be defective in materials or workmanship.
