Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENT
DIMENSIONS
ON LEVEL (FACTORY SET)
OFF LEVEL (FACTORY SET)
CONSTRUCTION
MOTOR HOUSING
Cast Iron (ALL MODELS)
VOLUTE
Cast Iron (ALL MODELS)
IMPELLER
Glass Reinforced Thermoplastic (T50SW,
F50SW)
Cast Iron (200SW, 100SW, 75SW)
SHAFT
Steel
DISCHARGE
2 in. NPT (T50SW, F50SW)
3 in. NPT supplied 2 in. Adapter (200SW,
100SW, 75SW)
PERFORMANCE GAL/HR
Discharge Head (Lift
Model
HP
5 ft
T50SW
1/2
7680
F50SW
1/2
7680
PERFORMANCE GAL/HR
Model
HP
20 ft
200SW
2
-
100SW
1
9800
75SW
3/4
6700
© 2018, Blue Angel/Scott Fetzer Company
120 V, 60 Hz (T50SW, F50SW)
230 V, 60 Hz (200SW, 100SW, 75SW)
Single Phase, Dielectric Oil Filled (T50SW, F50SW)
Permanent Split Capacitor (200SW, 100SW, 75SW)
2 HP...............(200SW)
1 HP...............(100SW)
3/4 HP..........(75SW)
1/2 HP..........(T50SW, F50SW)
15 A (minimum)
16-5/8 in. high x 9-5/8 in. base (T50SW)
17 in. high x 10-5/8 in. base (F50SW)
18 in. high x 11 in. base (200SW, 100SW, 75SW)
Approximately 19. in. (T50SW)
Approximately 13 in. (F50SW)
Approximately 10-1/2 in. (T50SW)
Approximately 8 in. (F50SW)
Distance)
10 ft
15 ft
6600
1920
6600
1920
Discharge Head (Lift Distance)
25 ft
30 ft
35 ft
9600
6400
4000
6300
3400
1300
3400
1400
-
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
40 ft
2300
-
-
Intended for Indoor Use Only
www.blueangelpumps.com
Sewage Pump
Sewage

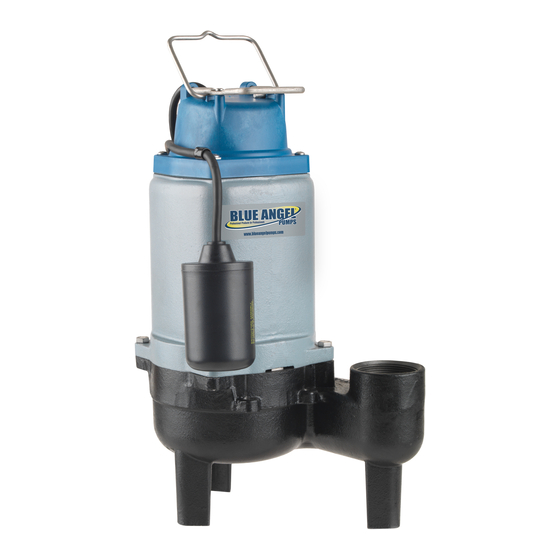

T50SW (Tether Float Switch)
F50SW (Vertical Float Switch)
200SW, 100SW, 75SW
610001W-026 E 1/20
