Summary of Contents for iScooter X02

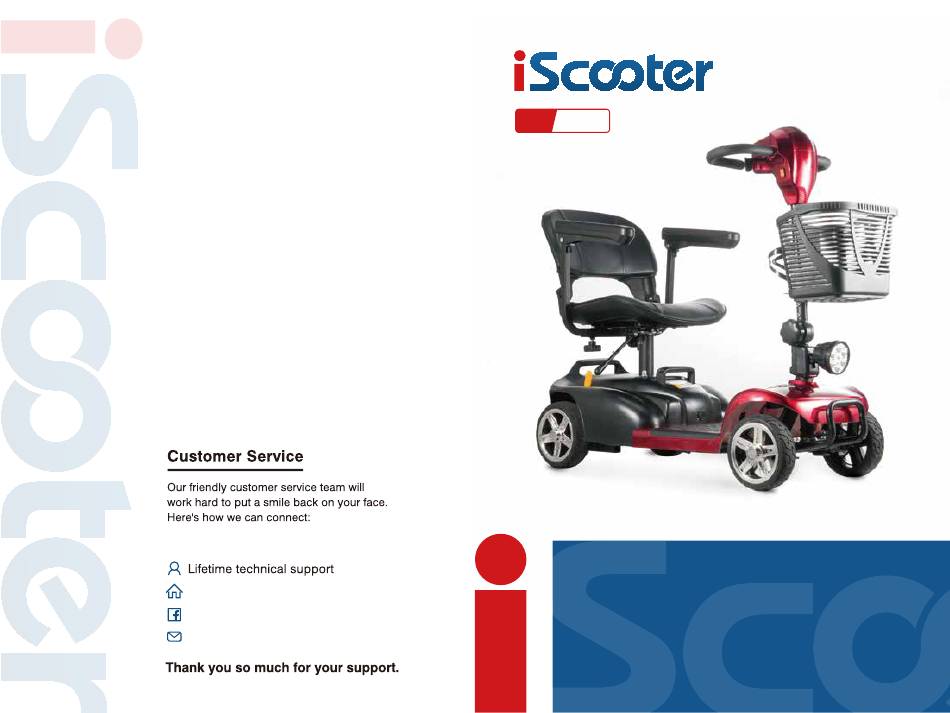

- Page 1 The pictures in this manual are for reference only. www.iscooterglobal.co.uk www.facebook.com/iScooterEU support@iscooterglobal.co.uk UK-V3...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Ⅰ. INTRODUCTION Ⅱ. PRODUCT DETAILS Ⅲ. SPECEFICATION IV. ASSEMBLY V. OPERATION ⅤI. MAINTENANCE Ⅶ. CLEANING VIII. SAFETY IX. WARRANTY X. CONTACT US... -
Page 3: Ⅰ. Introduction
Ⅰ. INTRODUCTION Read and follow all instructions, warnings, and notes in this manual before attempting to operate your mobility scooter for the first time. If there is any information in this manual which you do not understand, or if you require additional assistance for assembly or operation, please contact with your authorized local provider. -
Page 4: Ⅱ. Product Details

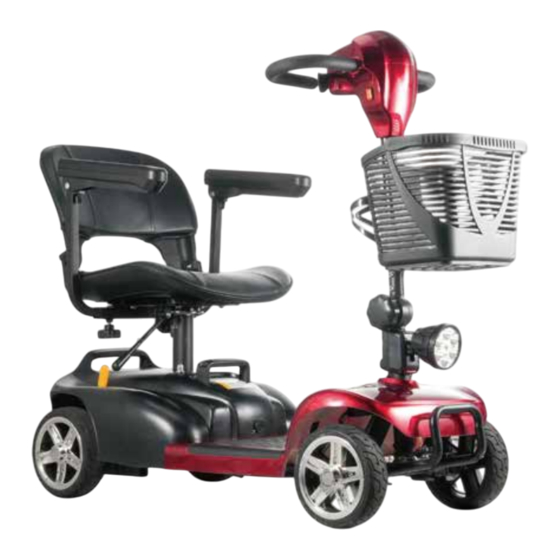

We will be appreciated to hear your suggestions for this manual and the evaluation to the safety, reliability of this product and the dealers authorized of this company. Ⅱ. PRODUCT DETAILS This scooter mainly consists of below parts: scooter body, seat unit, armrests, control panel, steering handles, transaxle, wheels, manual freewheel lever, anti-tip wheels, battery pack, headlight, and controller. - Page 5 CONTROL PANEL c. Battery indicator a. Key switch b. Speed dial f. Left throttle control lever d. Headlight switch e. Horn switch a. Key switch Turn the key to the “ON” position to turn on the scooter or to the “OFF”...
- Page 6 d. Headlight switch Press to turn on/off the headlight. e. Horn switch Press or hold to sound the horn. f. Left throttle control lever Pull the lever to move the scooter backward or push to move the scooter forward. The bigger the angle, the higher the speed. Slowly release the lever, and the scooter will slow down.
- Page 7 MANUAL FREEWHEEL LEVER The yellow lever is the manual freewheel lever. Whenever you do not want to move your scooter by motor, you can push the lever to the “Freewheel Mode” position. Move the position of the lever to switch between drive mode and freewheel mode. ...
- Page 8 ATTENTION! • When your scooter is in the freewheel mode, the brake system is disabled, and the functions of the throttle control levers are inhibited by the control system. Meanwhile, the horn sounds while the power is on. • Never drive your scooter in the freewheel mode without your attachment.
-
Page 9: Ⅲ. Specefication
III. SPECIFICATIONS Scooter Unfolded Size* (L*W*H) 1100*500*950 mm Scooter Weight* (N.W.) 42.75kg Ground Clearance 85mm Maximum Forward Speed 8km/h Maximum Weight Capacity 120kg Tyre Φ197*60 mm solid tyres Brake Electromagnetic brake system Range per Charge 20km ... -
Page 10: Assembly
IV. ASSEMBLY Unpacking Open the packaging box of your new scooter, remove all protective liners, and then remove the folded scooter from the box. Adjusting Tiller Angle . Loosen the tiller angle adjustment knob. . Adjust the tiller to your desired angle. - Page 11 Installing Battery Pack . Put the battery pack into the battery tray. Note that the electrode terminals on the battery pack should be aligned with that in the battery tray. .Then, fully insert the battery pack into the battery tray. Notice: •...
- Page 12 . Insert the pin into the hole of the seat tube. . Tighten the seat post tightening knob. Installing Seat . Fully attach the seat to the . Check if the seat is locked in seat post. (Make sure the seat place.
- Page 13 . Slide the armrests into the tube below the seat. Adjust the armrests to your desired width and then tighten the tightening knobs. Installing Basket . Slide the basket onto the . Install the basket holder on holder. the tiller. .
-
Page 14: Operation
V. OPERATION 1. How to drive this mobility scooter Get on the scooter, sit down, insert the key, and turn the key to the “ON” position to turn on the scooter. Turn the speed dial according to the road conditions, surrounding conditions, and personal preferences. - Page 15 Park your scooter near to a wall outlet and turn off the scooter. Open the charging port cover. (Keep the charging port clean and dry.) Plug the output connector of the charger into the charging port. Plug the input connector of the charger into the wall outlet. The charger indicator will glow red, indicating the battery is charging.
- Page 16 3. New Battery’s Usage To break in the new battery for maximum efficiency, please follow the notes here below: • Fully charge any new battery prior to its initial use. This brings the battery up to about 90% of its peak performance level. •...
-
Page 17: Ⅴi. Maintenance
VI. MAINTENANCE General Guidelines • Avoid knocking or bumping the tiller and controls. • Avoid prolonged exposure of your scooter to extreme conditions, such as overheat, cold, or moisture. • Keep the control panel clean. • Make sure all connectors are tight and secured properly. •... -
Page 18: Ⅶ. Cleaning
CHECK LIST Table Check Items At any time Weekly Monthly Six monthly All parts Turning, Driving, Devices, etc. Brakes Connections Battery Charge Tire wear Motors Console devices Clean VII. CLEANING Controller: Wipe the controller surface with a dry and soft cloth. Motor: Clean the dirt on the surface of the motor, especially the dirt on the lead line of the motor. -
Page 19: Safety
VIII. SAFETY 1. Check Before Usage • Check all electrical connections. Make sure they are tight and not corroded. • Check all connections to the battery tray. Make sure they are secured properly. • Check the brakes. Make sure they are sensitive and reliable. •... - Page 20 WARNING! • When climbing an incline, do not zigzag or drive at an angle up the face of the incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a tip or a fall. • Always exercise extreme caution when negotiating an incline. •Don’t drive up or down a potentially hazardous incline (areas covered with snow, ice, cut grass, wet leaves, etc.).
- Page 21 WARNING! • Do not set your scooter in freewheel mode unattended. Failure to do so may cause personal injury. • Do not attempt to set your scooter in freewheel mode while seated on it. Personal injury may occur. • Do not park your scooter in freewheel mode while on an incline. The scooter could roll uncontrollably down on its own, causing personal injury.
- Page 22 7. Transfer onto or off Scooter To avoid injury, the following safety precautions are useful for you while you attempt to transfer on or off your scooter. • Remove the key from the key switch. • Ensure your scooter is not in freewheel mode. Flip up or move away the armrests.
-
Page 23: Warranty
• Do not expose your scooter to any type of moisture at any time (rain, snow, mist, or wash). Such exposure will damage your scooter. • Never operate your scooter if it has been exposed to moisture until it has been dried thoroughly. IX. -
Page 24: Contact Us
4. Declaration of Conformity Shenzhen Xincheng Times Technology Co., Ltd. hereby declares that the device of type "X02" complies with the legal regulations of the EU Directives 2014/30/EU and 2011/65/EU (RoHS).
Need help?
Do you have a question about the X02 and is the answer not in the manual?
Questions and answers
Where us the circuit breakert on a x02d mobility scooter
I turned the scooter on and a booster lever drive the yellow lever to drive and when I got it on all it does. Is it beep and it won't go forward or backwards?
If your iScooter X02 beeps and won't move forward or backward, check the manual freewheel lever. If it is in the "Freewheel Mode" position, the brake and drive systems are disengaged, and an alarm will sound when the key is in the “ON” position. Push the lever backward to the "Drive Mode" position to re-engage the brake and drive systems, which will allow the scooter to move.
This answer is automatically generated
@Mr. Anderson , that dosen,t fix the problem. It seems that it is in the key area. Some times it will work others it will not
How to fold down scooter for transport in car
To fold down the iScooter X02 for transport in a car:
1. Adjust or remove the handlebar by loosening it with the provided tool.
2. Fold the handlebar down, as it is designed to be collapsible.
3. Detach the seat and basket if needed.
4. Fold the main frame as instructed in the manual.
This allows the scooter to fit into a car trunk.
This answer is automatically generated
Disable back up beep
The backup beep on the iScooter X02 cannot be disabled according to the provided information.
This answer is automatically generated
I have the problem, that some times it works, and other it desn;t. How do I get to the control area to check the connections. I believe problem is there. Remove key and insert, will make it go, then it stops.
How do I open the battery pack
How to remove the battery for transfer in your car
how do i turn off the sound
I'm trying to figure out how to take the battery pack off when I put it in the trunk so it's not so heavy.
