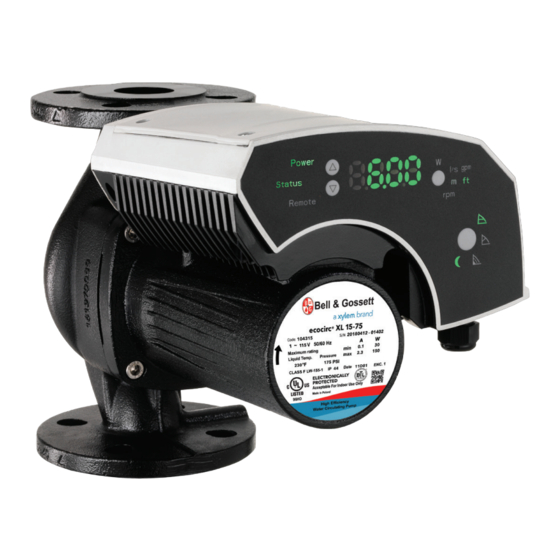

Xylem Bell & Gossett ecocirc XL Quick Start Up Manual

QUICK STARTUP GUIDE
______________________________________________________________________
WARNING
This guide does not replace the instruction and operating manual (IOM)
Read the manual carefully before installing and using the product. Improper use of the product can cause personal
injury and damage to property and may void the warranty
______________________________________________________________________
Startup checklist
 Mount pump in the system according to flow direction indicated on the pump housing and
with motor housing in one of the allowed orientations shown in figure 1.
1
 Make sure the pump is properly aligned with the system piping. Do not attempt to spring
the suction or discharge line in position.
 On 3-phase pumps, install two (2) Absolute Pressure Sensors provided with the pump.
 Make sure that power supply matches nameplate electrical ratings of the pump.
 Figure 3 shows wiring terminals for single phase and figure 3a shows for 3-phase pumps.
2
 Please note that 3-phase pumps will rotate only in one direction set at the factory. Wire
swapping is not an option with these units.
 Connect auxiliary input/output signal wires to the pump as indicated.
3
 Power and control wiring must be run in separate channels.
 Fill the system with water.
4
 Open all valves in the system to facilitate proper air venting of system piping.
 Power the pump ON and see that all LEDs are lit and successive submenus start rolling.
5
(refer to the "Electronic Drive Manual" in case of errors or alarm codes on display)
 At each power-on, the automatic air venting procedure is executed.
 In case of residual air inside the system creating noise or excessive vibration:
o Vent the system again.
6
o Recall the automatic air venting procedure by pressing the up and down arrows
❺ simultaneously.
o If problem is not resolved, refer to instruction manual and/or the electronic drive
manual.
 Set control mode of the pump, by short pressing button ❶ (see figure 2 or 2a).
7
 Short press button ❺ to display the actual set points (see figure 2 or 2a).
8
9
 Change values as desired with arrow buttons ❺ (see fig. 2 or 2a)
10
 To change the displayed units of measurement, press the button ❸ (see fig.2 or 2a)
 To change the unit of measurement of head or flow, press the button ❸ for more than
11
1sec. (see fig. 2)
 The user interface can be locked/ unlocked by pressing and holding down the two arrow
12
setting buttons ❺ and the parameter button ❸ simultaneously for two
The user interface will be automatically locked after ten minutes of pressing the last button.
Operation
seconds.
ecocirc XL
.
Pump Display
-
-
-
The display and the LEDs switch-on for 1 second
and then a sequence of submenus for advanced
functions begin to appear.
The user interface displays "deg" (degassing)
and a count-down begins until completion of the
procedure:
4DEG - 3DEG - 2DEG – 1DEG
At the end of the air venting procedure, the pump
starts to run with default settings.
At the user interface, the chosen mode LED will
light up.
Constant pressure mode
Proportional pressure mode
Fixed speed mode
Night mode
On display the actual setpoint starts blinking
The setpoint stops blinking on display and the
new parameters will be displayed
• Flow: m
. Head: m ↔ ft
By pressing any button when the user interface
is locked, the display shows
Unlocked user interface displays:
P0002557‐rev2
March 2019
W
3
m /h gpm
m ft
rpm
3
/h ↔ gpm (US)
