Neware Battery Tester Calibration Manually Instructions
1. Manual calibration of current
1.1 Power cord connection

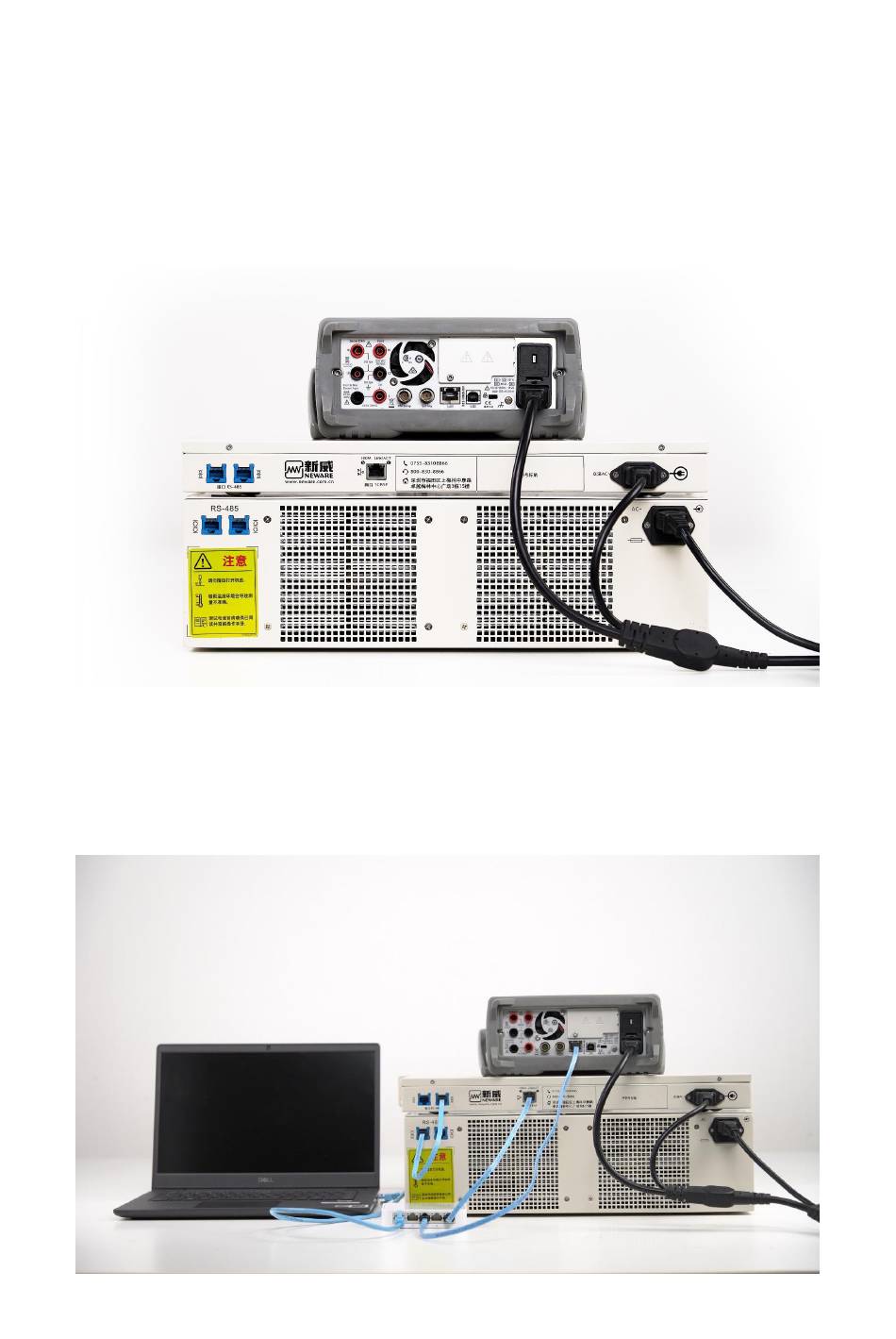

Firstly, connect the power cord of the multimeter, control unit(middle machine),
and battery testing equipment, as shown in Figure 1.
1.2 Connecting network cables
Connect the control unit(middle machine) to the battery testers using a network
cable, connect the control unit(middle machine) to the switch(TPLINK), connect the
multimeter to the switch(TPLINK), and finally connect the switch(TPLINK) to the
computer using a network cable, as shown in Figure 2.
Neware Technology Limited
(BTS-5V12A)
Figure
1
Web: batterygrading.com
Email: support@batterygrading.com
