Vision X CR3 Instruction Manual

Instruction Manual
CR3 Fog Light Mounting Kit
Chevy Colorado, GMC Canyon
XIL-OEGM1CR

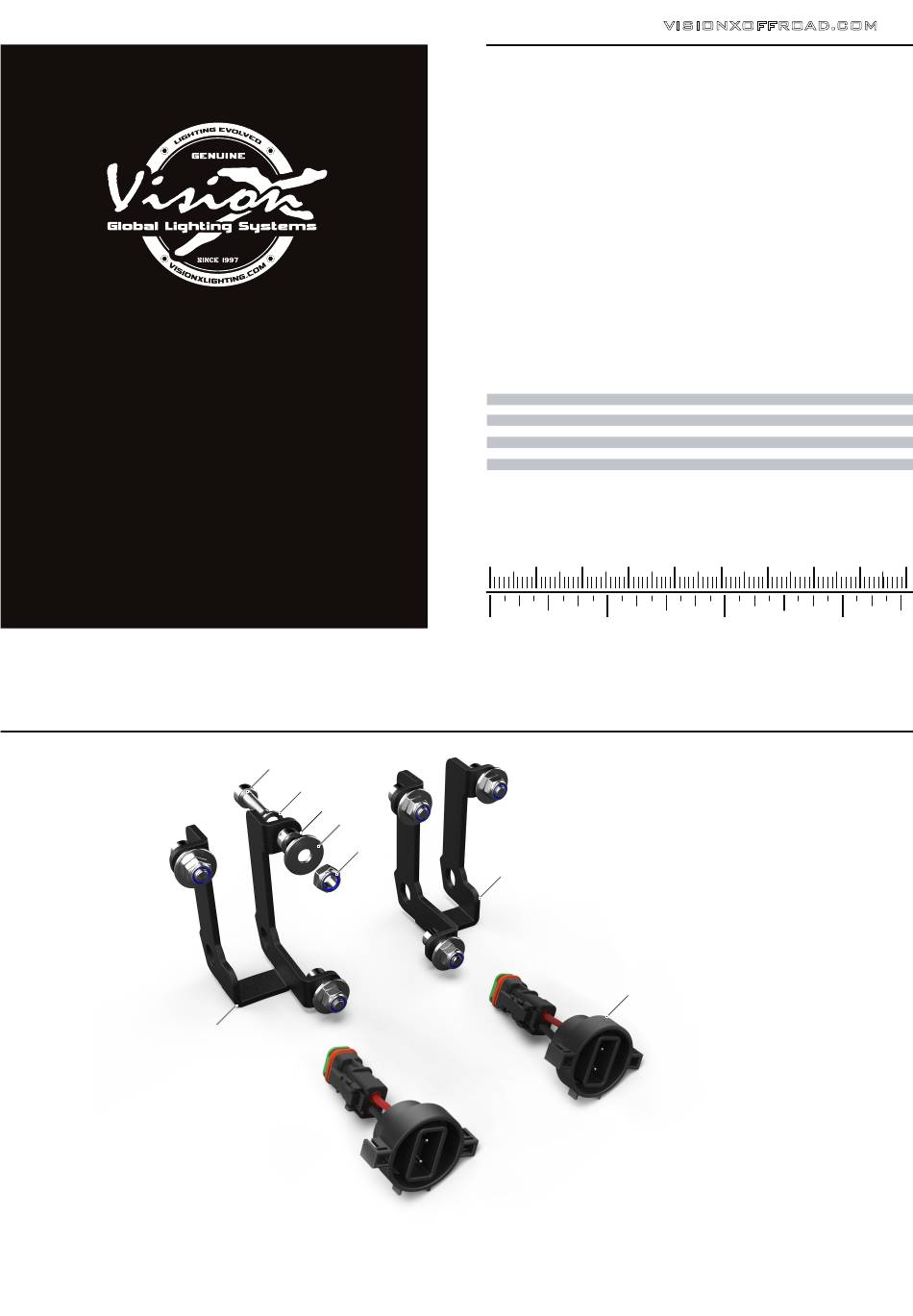

What's In The Box?
Kit Contents
(a) LHS Mounting Bracket......(LAH.53.001).................................Qty 1
(b) RHS Mounting Bracket......(LAH.53.002).................................Qty 1
(c) M6x18mm Socket Head Screw DIN 912...................................Qty 6
(d) M6 Washer..........................................................................Qty 6
(c)
(d)
(e)
(f)
(g)
(b)
Instruction Rev00
Thank you for choosing VISION X
We know you would rather be riding your bike than wrenching on it, so we go the extra
mile to make sure our instructions are clear and as easy to understand as possible. If
you have any questions, comments, or suggestions don't hesitate to give our gear
experts a call at (888) 489-9820 or visit WWW.VISIONXOFFROAD.COM
Please Read Before Installing
vISION X products should always be installed by a qualified technician. If you are
unsure of your ability to properly install a product, please have the product installed
by your local dealer. VISION X takes no responsibility for damages caused by improper
installation. Caution: When installing electronics it is extremely important to pay close
attention to how wires are routed to ensure the wires will not bind and have enough
slack to operate properly.
Installation Tips
We strongly recommend using medium strength liquid thread locker on all screws,
nuts, and bolts. It is also important to ensure that all hardware is tightened to the
proper torque specifications as listed in your owner's manual. For included accessory
hardware please refer to the default torque specifications provided below. Inspect all
hardware after the first 30 miles to ensure proper torque specifications are
maintained.
Bolt Size in-lbs
M3 10.0 in-lbs
23.0 in-lbs
M4
M5 44.5 in-lbs
M6 78.0 in-lbs
M8 -
M10 -
M12 -
Hardware Sizing Guide
Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the "mounting
surface" to the end of the screw, so only include the screw head when measuring
countersunk screws.
0 10 20 30
mm
0 1
in
(a)
(h)
(e) Spacer: ID=6.53 OD=11.1 L=4.76.........................................Qty 6
(f) M6 Oversized Washer...........................................................Qty 6
(g) M6 Nyloc Nut DIN 985..........................................................Qty 6
(h) H16 to 2 Pin Deutsch DT (Reverse Polarity).(P-HARNESS.16D.R)Qty 2
VISIONXOFFROAD.COM
ft-lbs
-
-
3.5 ft-lbs
6.5 ft-lbs
13.5 ft-lbs 18.0 Nm
30.0 ft-lbs 41.0 Nm
52.0 ft-lbs 71.0 Nm
40 50 60 70
2
Nm
1.0 Nm
2.5 Nm
5.0 Nm
9.0 Nm
80 90
3
