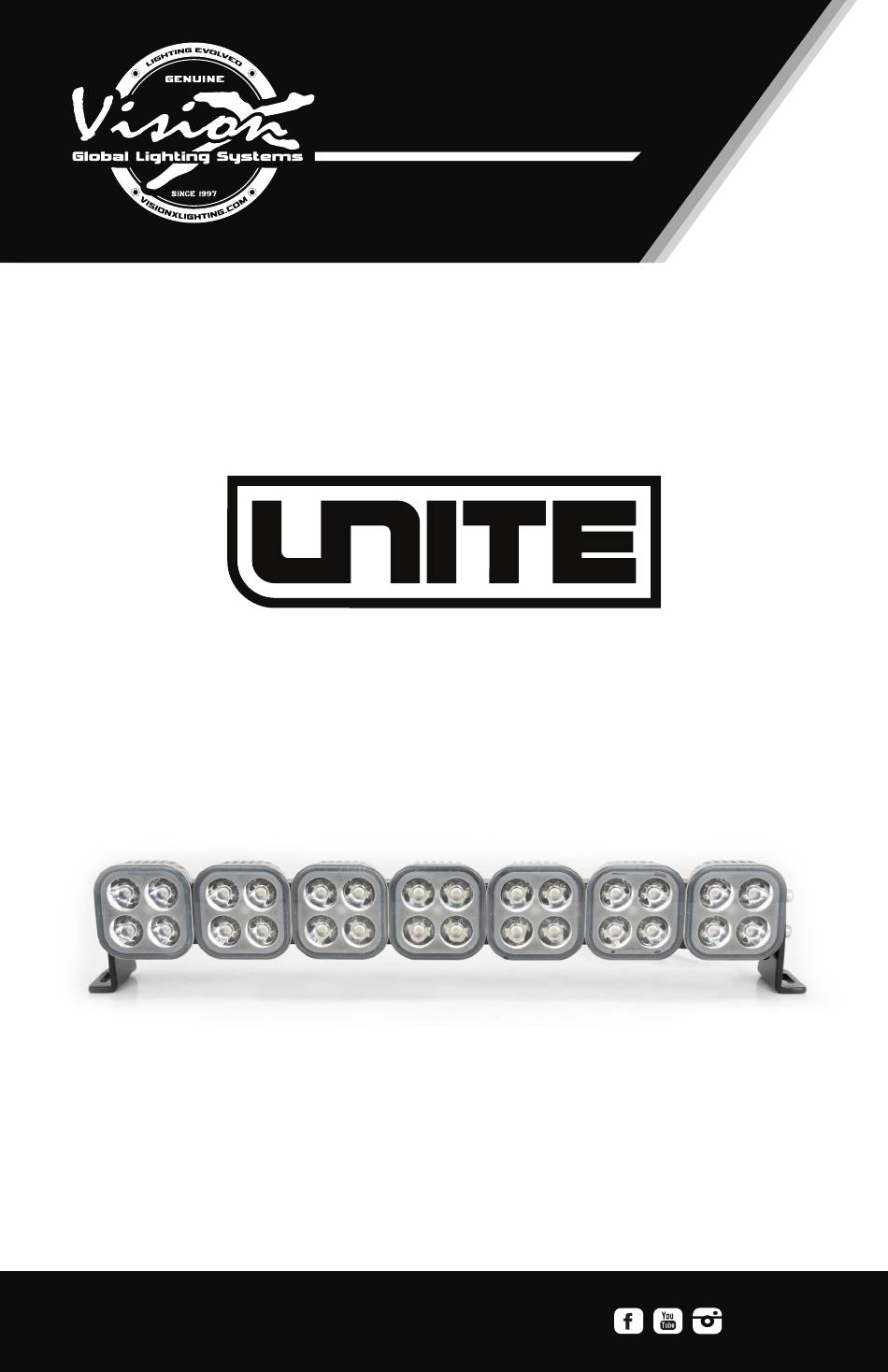

- Page 1 INSTALLATION INSTRUCTIONS UNITE SERIES MODULAR LIGHT BAR Installation Instructions & User’s Manual (6”-20”) VISIONXLIGHTING.COM...
- Page 2 3. The placement of LED lighting should not restrict airflow to the radiator, block head lamps, turn signals, or parking lights. 4. Ensure you are using proper gauge wire and connectors when wiring without Vision X Wiring Harness. WARNING: Bolts, Nuts, and Washers are Stainless Steel.
- Page 3 UNITE MODULAR BAR INCLUDED WITH UNITE QUICK CONNECT RAIL Quick Power Wing Mounts Connect Rail Plug/Cap LIGHT RAIL MOUNTING POWER Qty: 1 Qty: 2 Qty: 1 Deutsch Power Pigtail Screws Connector POWER WIRING HARDWARE Qty: 1 Qty: 1 Qty: 2 Wing Mount Mounting Nylock Nut...
- Page 4 INSTALLATION INSTRUCTIONS UNITE MODULE ASSEMBLY INSTRUCTIONS 1. Included with each module is a set of allen head bolts and locking T-Nuts. Insert the two allen head bolts from the back and loosely thread on the locking T-Nuts with the rounded end facing towards the module. Leave about a 2-3 threads gap.
- Page 5 UNITE MODULAR BAR 4. Prep the Quick Connect Rail by installing the left (passenger side) wing mount using 2 wing mount bolts and a 13mm socket wrench. (Figure 4.) 5. Slide the first module onto the quick connect rail by aligning the T-Nuts on the back of the module.
- Page 6 INSTALLATION INSTRUCTIONS 8. Slide on the last module with Deutsch Power Connector attached. (Figure 8.) 9. Install the wing mount using 2 Wing Mount Bolts and a 13mm socket wrench. (Figure 9.) FIG. 8 FIG. 9 6. Adjust all the modules so that they are centered on the bar. Once centered, secure all the modules to the rail by tightening the bolts on the back of each module using the 5mm Allen Key.
- Page 7 UNITE MODULAR BAR UNITE MODULE MULTI-CIRCUIT INSTRUCTIONS THIS FEATURE IS ONLY AVAILABLE WITH THE PURCHASE OF ADDITIONAL UNITE POWER ACCESSORIES. • To utilize the Multi-Circuit power accessories, add the Deutsch Power Connectors and Power Plugs/Caps to the specific sections of the Unite Bar you choose using the provided set screws and 2.5mm Allen Key.
-
Page 8: Mounting Installation Instructions
INSTALLATION INSTRUCTIONS MOUNTING INSTALLATION INSTRUCTIONS 1. Determine where the light/lights will be placed. 2. Place mounting bracket with light to desired location. Using a marker or pick tool, mark the center point of the bolt hole on the mounting surface. 3. - Page 9 UNITE MODULAR BAR SINGLE CIRCUIT WIRING DIAGRAM: FOR USE WITH VISION X WIRING HARNESS (R1) (W2) (P1) (S1) (W1) (C1) *To Light COMPONENTS KEY • Part (R1): Relay • Part (W1): Power Wire for Relay Coil a. 9-32V DC Positive (+) Input Wire •...
- Page 10 2. Adjust the light bar to desired angle and re-tighten the 4 Wing Mount Bolts. FIG. 11 MAINTENANCE All Vision X models have been designed for maintenance free use. In the case that an LED lamp or other part replacement is needed, please contact your authorized service center. VISIONXLIGHTING.COM...
- Page 11 UNITE MODULAR BAR LIGHTING EVOLVED...
- Page 12 LIGHTING EVOLVED “Innovating to provide the world’s most advanced lighting systems” LEARN MORE | CONTACT US VISIONXLIGHTING.COM | INFO@VISIONXUSA.COM...
