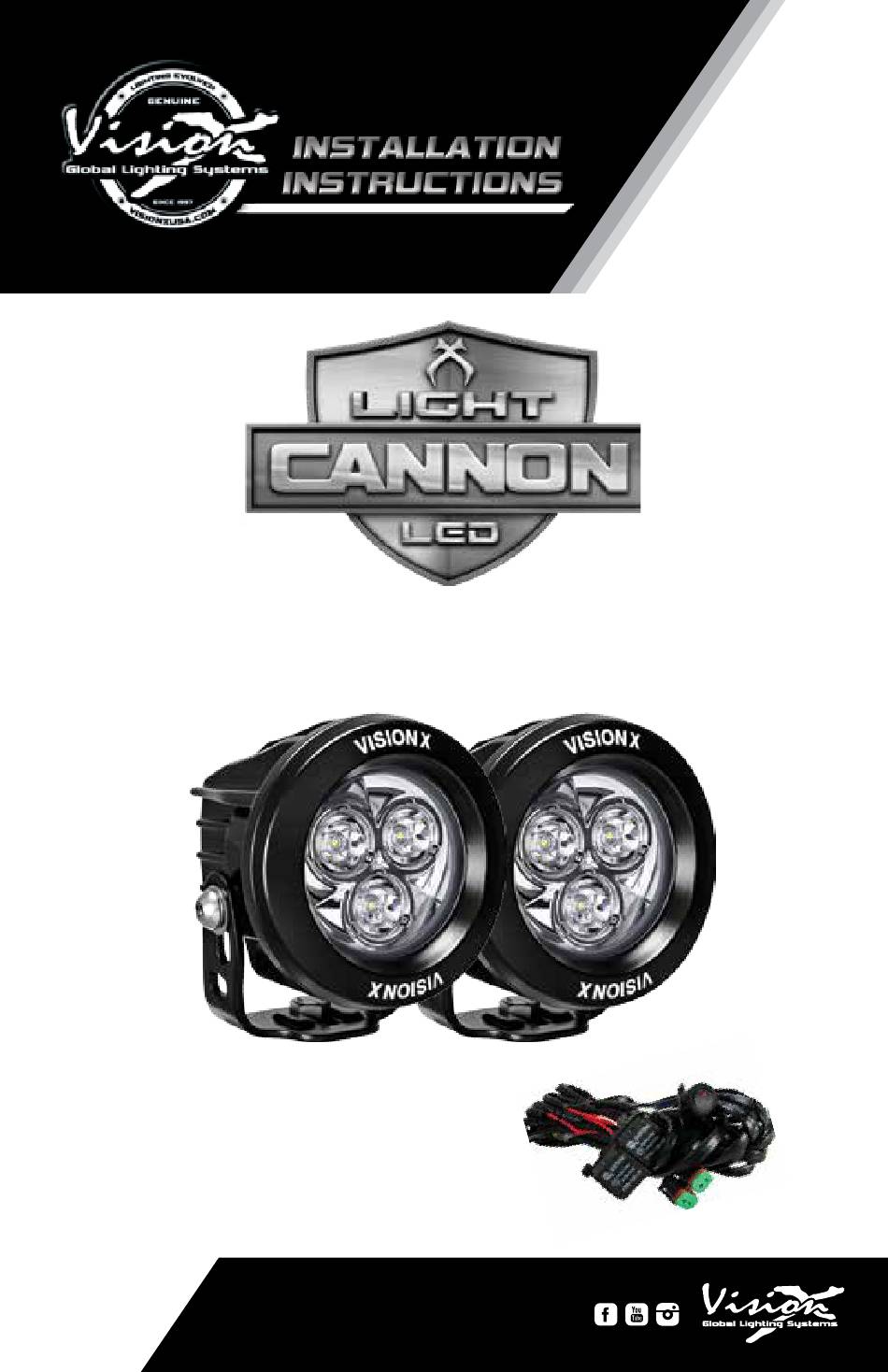

- Page 1 CG2 LED MINI CANNON KIT Installation Instructions & User’s Manual VISIONXLIGHTING.COM...
- Page 2 MAINTENANCE 1. All Vision X models have been designed for maintenance free use. In the case an LED lamp or other part replacement is needed please contact your authorized...
- Page 3 Qty: 2 Qty: 2 WARNINGS As with many other high-tech products, this VISION X LED requires a bit of attention before you can use it. Please read the accompanying information carefully first. 1. Don’t stare directly into the light or shine directly into the eyes of another person as this may cause temporary loss of vision.
- Page 4 XIL-PDIMMER, or XIL-PDIMMERBUTTON. Do Not connect the Prime Drive wire without authorized accessories as this will damage the electronics. MANUFACTURER RECOMMENDATION For those unfamiliar with electrical wiring on vehicles, Vision X recommends that all LED Lighting products are professionally installed.
- Page 5 3.7” CG2 LED MINI CANNON WIRING DIAGRAM: (R1) (R2) (P1) (W4) (S1) (W3) (W2) (W1) (C1) (C2) *To Light *To Light COMPONENTS KEY Part (R1 & R2) Relay Part (W1 & W3) Power Wire for Relay Coil a. 9-32V DC Positive (+) Input Wire Part (W2 &...
- Page 6 VISION X WARNING: Bolts, Nuts, and Washers are Stainless Steel. DO NOT USE Pneumatic or Electric Tools to Tighten and Loosen. The Hardware Will Permanently Lock Together. MOUNTING INSTALLATION INSTRUCTION 1. Determine where the light/lights will be placed. 2. Place mounting bracket with light to desired location. Using a marker or pick tool, mark the center point of the bolt hole on the mounting surface.
- Page 7 3.7” CG2 LED MINI CANNON (B1) (Mounting Bracket) (W1) (N1) MOUNTING KEY Part (B1) Bolt [M8] (Mounting Bracket) Part (W1) Washer Part (N1) Nut [M8] (B2) ADJUSTMENT KEY Part (B2) 5mm Locking Bolt (Mounting Bracket) TIP: For complete application guide see website...
- Page 8 You May Also Be Interested In: Vehicle Specific Fog Lighting Brackets Visit www.visionxusa.com to see full range. Part # - 4009257 Part # - 4009264 Item # - XIL-PDIMMER Item # - XIL-PDIMMERBUTTON SECURITY NUT Dial Knob Dimmer to Adjust Push Button Dimmer for Prime Available in multiple sizes the Light Output of Prime Drive...
