Summary of Contents for Vision X CG2-CPZ610KIT

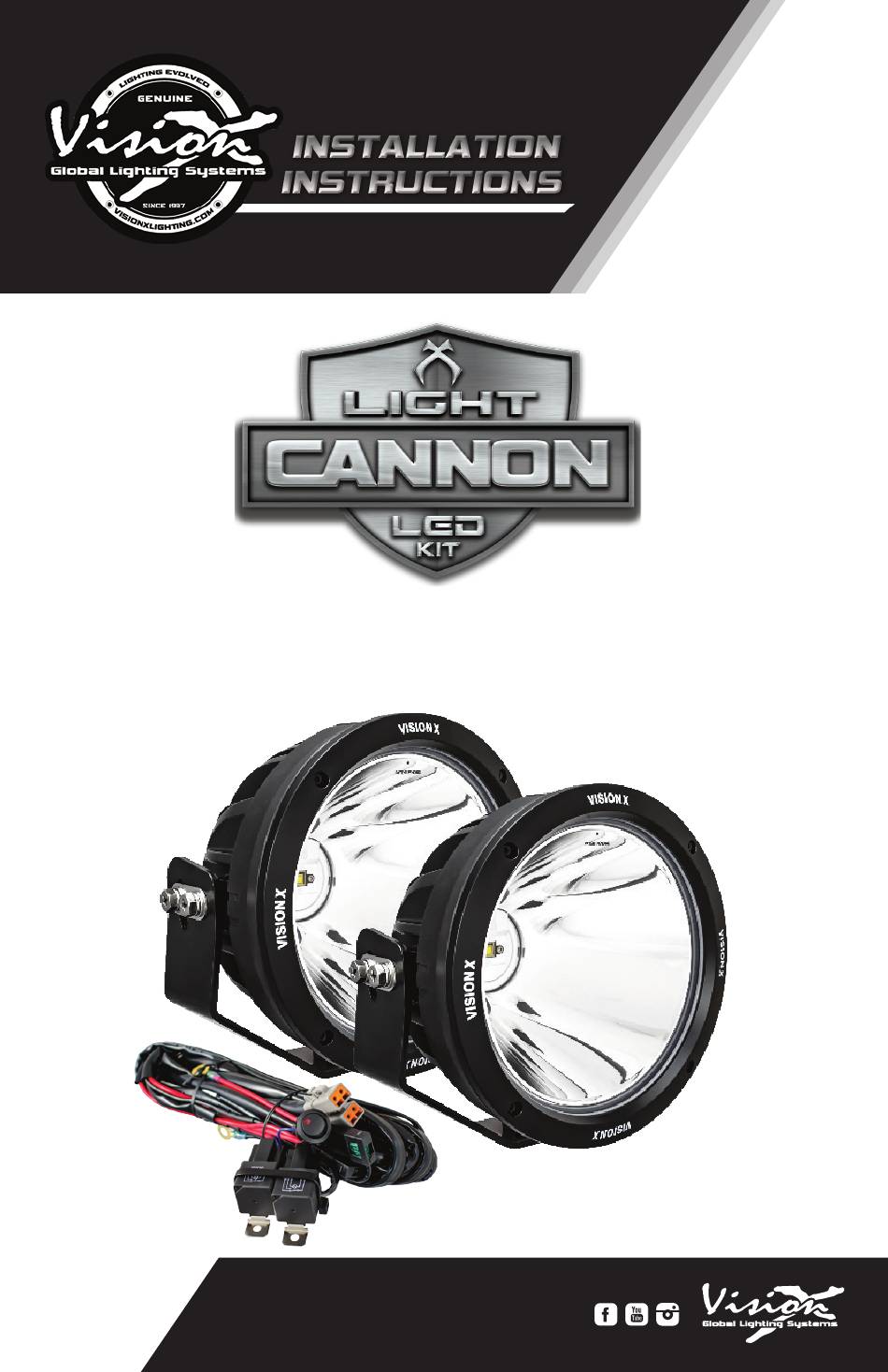

- Page 1 GEN 2 Installation Instructions & User’s Manual VISIONXLIGHTING.COM...
- Page 2 MAINTENANCE 1. All Vision X models have been designed for maintenance free use. In the case an LED lamp or other part replacement is needed please contact your authorized...
- Page 3 Qty: 2 Qty: 2 WARNINGS As with many other high-tech products, this VISION X LED requires a bit of attention before you can use it. Please read the accompanying information carefully first. 1. Don’t stare directly into the light or shine directly into the eyes of another person as this may cause temporary loss of vision.
- Page 4 VISION X WARNING: Bolts, Nuts, and Washers are Stainless Steel. DO NOT USE Pneumatic or Electric Tools to Tighten and Loosen. The Hardware Will Permanently Lock Together. MOUNTING INSTALLATION INSTRUCTION 1. Determine where the light/lights will be placed. 2. Place mounting bracket with light to desired location. Using a marker or pick tool, mark the center point of the bolt hole on the mounting surface.
- Page 5 6.7” GEN 2 LED LIGHT CANNON LIGHT ANGLE ADJUSTMENTS 1. Use a 13mm socket to loosen the 2 Hex head bolts Part (B2) on each side of the light. 2. Adjust the light to your desired angle and tighten Bolts (B2).
- Page 6 5. Drill the hole to the required size for the Switch (S1) and mount to desired position. 6. Reconnect the Switch (S1) to the Harness. 7. Test Light. MANUFACTURER RECOMMENDATION For those unfamiliar with electrical wiring on vehicles, Vision X recommends that all LED Lighting products are professionally installed.
- Page 7 6.7” GEN 2 LED LIGHT CANNON WIRING DIAGRAM: (R1) (R2) (P1) (W4) (S1) (W3) (W2) (W1) (C1) (C2) *To Light *To Light COMPONENTS KEY Part (R1 & R2) Relay Part (W1 & W3) Power Wire for Relay Coil a. 9-32V DC Volt Positive (+) Input Wire Part (W2 &...
- Page 8 You May Also Be Interested In: TANTRUM Rugged LED Rock Light Kit Available in variety of Colors SECURITY NUT SECURITY BOLT CLAMP TUBE MOUNT (2.0”-3.0” Diameter Available) Available in multiple sizes Available in multiple sizes Clear Amber Blue Black Pattern - Spot Pattern - Euro Pattern - Elliptical Pattern - Flood...
