Summary of Contents for Vision X Xmitter Prime Extreme

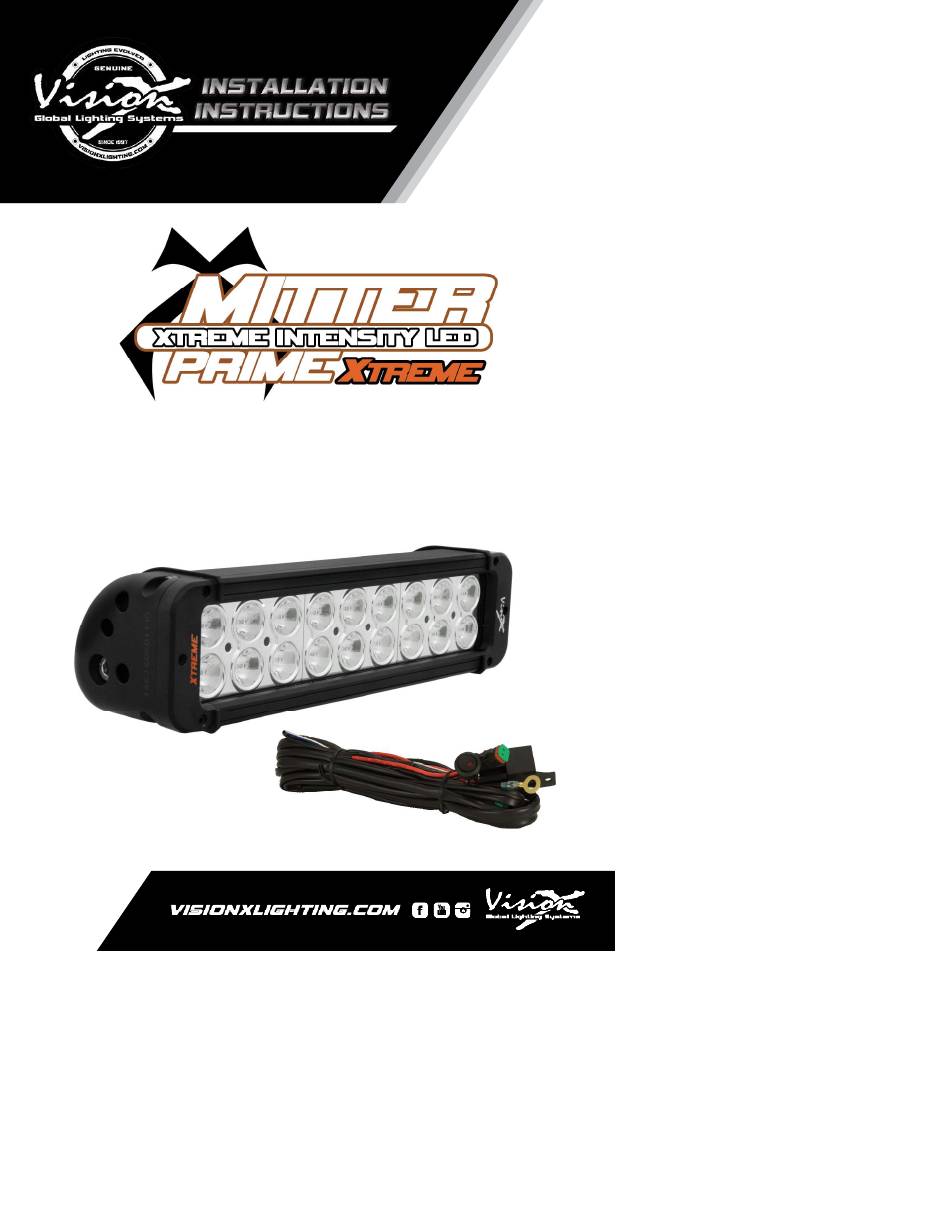

- Page 1 Installation Instructions & User’s Manual...
-
Page 2: Maintenance
MAINTENANCE 1. All Vision X models have been designed for maintenance free use. In the case an LED lamp or other part replacement is needed please contact your authorized... - Page 3 PART (A1) Qty: 1 WARNINGS As with many other high-tech products, this VISION X LED requires a bit of attention before you can use it. Please read the accompanying information carefully fi rst. 1. Don’t stare directly into the light or shine directly into the eyes of another person as this may cause temporary loss of vision.
- Page 4 XIL-PDIMMER, or XIL-PDIMMERBUTTON. Do Not connect the Prime Drive wire without authorized accessories as this will damage the electronics. MANUFACTURER RECOMMENDATION For those unfamiliar with electrical wiring on vehicles, Vision X recommends that all LED Lighting products are professionally installed.
-
Page 5: Wiring Diagram
XMITTER PRIME XTREME WIRING DIAGRAM: (R1) (P1) (W2) (S1) (W1) (C1) *To Light COMPONENTS KEY Part (R1) Relay Part (W1) Power Wire for Relay Coil a. 9-32V DC Positive (+) Input Wire Part (W2) Ground Wire for Relay Coil a. 9-32V DC Negative (-) Input Wire Parts (C1) Deutsch Connectors for Lights a. - Page 6 VISION X WARNING: Bolts, Nuts, and Washers are Stainless Steel. DO NOT USE Pneumatic or Electric Tools to Tighten and Loosen. The Hardware Will Permanently Lock Together. MOUNTING INSTALLATION INSTRUCTION FOR FEET 1. Start by setting the light bar in the location that you plan to mount it in.
- Page 7 XMITTER PRIME XTREME INSTALLATION IMAGES Fig. 1 Fig. 2 Fig. 3 TIP: Vision X recommends the use of liquid thread-locker, or Loctite, to ensure that every bolt and nut are safely secured. TIP: For complete application guide see website...
- Page 8 You May Also Be Interested In: Part # - 9890975 Item # - XIL-OEH0713JK CLAMP TUBE MOUNT Jeep JK Vehicle Specifi c Hood Mount Bracket (0.75”-3.0” Diameter Available) (visit www.visionxusa.com for a full list of vehicle specifi c products) Part # - 9888811 Item # - XIL-LPECM Part # - 4009257 Part # - 4009264...
