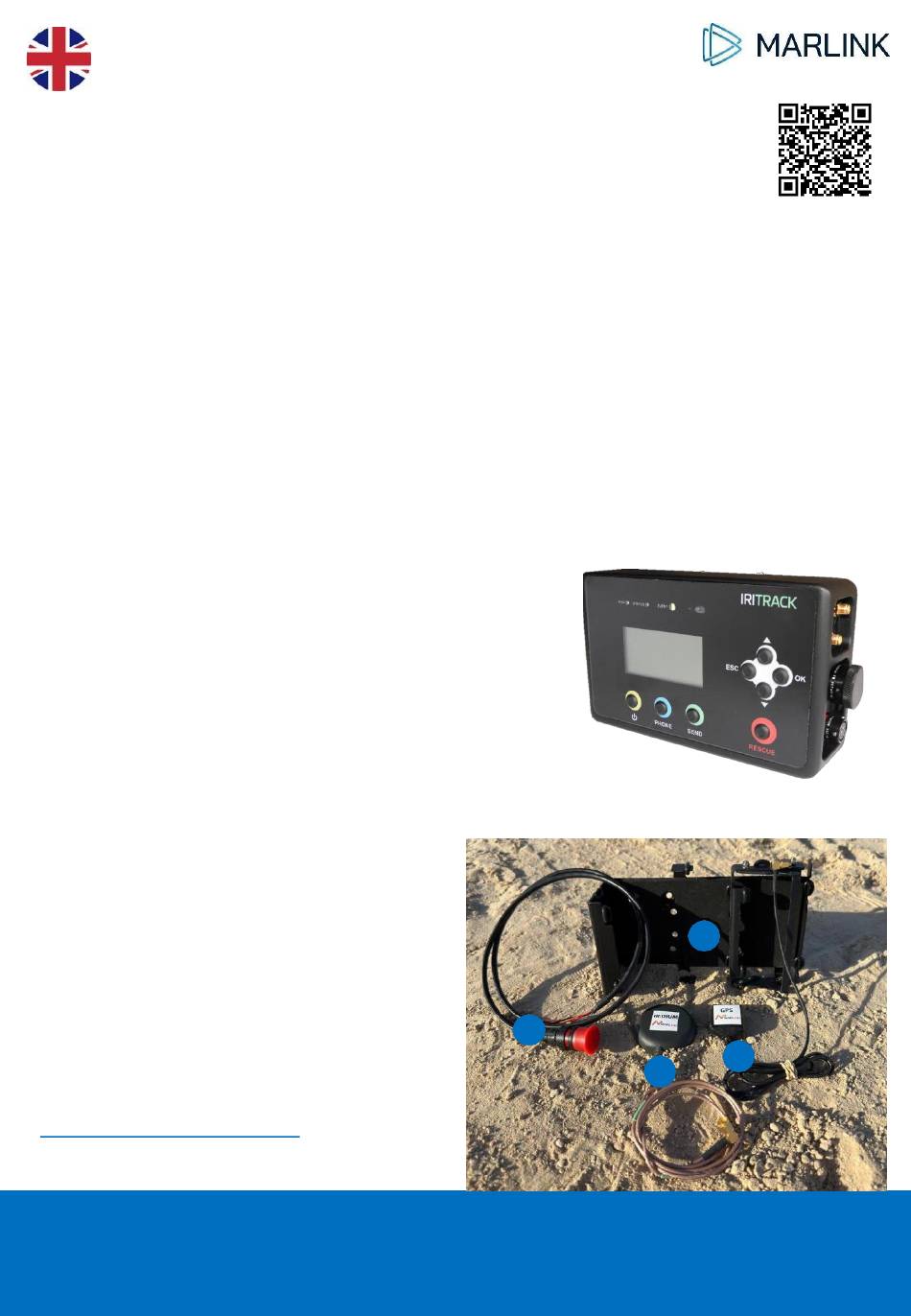

IRITRACK V3 : MOUNTING GUIDE
The Iritrack
is a real-time satellite (Iridium) tracking and security system providing :
- Geo-tracking on map of all vehicles (competitors, organization, rescue,...) with feedback on
passage times, speed, temperature, quality of installation (antennas, power supply), etc.
- Sending data to Race HQ (race management authority) :
▪ Automatic Alarms :
▪ Alarms/Manual Alerts (press the buttons)
▪ Medical emergencies →
▪ Safe stopping (mechanical, assistance, break, etc.) →
- Phone communication →
- Text message with the Race HQ
Iritrack technical specifications :
1) Dimensions : 180 x 112 x 53 mm (L x l x P), without
bracket/cables
2) Weight : 830g
3) Consumption : 12V, 80mAh, (15mAh on standby)
4) External power supply : Input: DC 6-42V
5) Protection required with a 1A fuse
6) Internal battery : rechargeable Li-ion, 5600 mAh
7) Internal antennas Iridium, GPS and radio
8) Microphone et speaker
Kit composition bike/quad (S80171):
1) Iritrack bracket – S80140
2) Power cable 1m with
transparent terminals – S80139
3) Iridium Antenna (1m) – S27689
4) GPS Antenna (1m) – S27680
Order your equipment and find more
information on the Marlink e-shop :
https://eshop.marlink.com/fr/
114/126, avenue d'Alfortville – 94600 CHOISY LE ROI – France
Tél : +33 (0)1 48 84 34 00 - email : services.events@marlink.com
S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 –
BIKE - QUAD
in case of a fall, accident or rollover (inclinometer, decelerometer)
Red button
Blue button
RC 334 306 172 www.marlink.com
Green button
2
3
1
4
1
Advertisement
Related Manuals for MARLINK IRITRACK V3
Summary of Contents for MARLINK IRITRACK V3
- Page 1 114/126, avenue d’Alfortville – 94600 CHOISY LE ROI – France Tél : +33 (0)1 48 84 34 00 - email : services.events@marlink.com S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 –...
-
Page 2: Power Supply
POWER SUPPLY Power supply cable Iritrack must always be powered, from the beginning to the end of the Rally. Power cable must be directly connetected to vehicle battery or fuse box (no breaker). If needed you can link Iritrack power cable to an extension as shown below (not included in the kit but available on our e-shop S80131) : Prepare your Iritrack power cable, separatig black wire from red and orange Connect the power cable to your extension lead (lugs supplied), battery or fuse box :... - Page 3 BRACKET Open the bracket by pulling the right handle. Make sure to keep 50mm clear space on the right of the bracket to open it properly and connecting the box while respecting the curvature of the cables. Before fixing your bracket, make sure that it is in the correct position; when stationary, you must have : ✓...
-
Page 4: Antennas And Cables
ANTENNAS AND CABLES ✓ GPS and Iridium antennas must be fixed (glued/rigged) horizontally on the navigation tower and clear of any obstacle at 180° to the sky (side-by-syde possible). They may not be painted or integrated into the coachwork. COMPLIANT NON COMPLIANT ✓... -
Page 5: Good Practice
GOOD PRACTICE ✓ Active motorbike components (headlights, navigation tools, speed limiter, etc.) must be approved and must not radiate on the Iritrack's GPS and Iridium frequencies. We will be particularly attentive to these potential disturbances during rallies. ✓ It is strictly forbidden to clean the Iritrack or the remote box with a karsher-type system, as this could damage the equipment! EXEMPLE OF COMPLIANT INSTALLATIONS Access to buttons + screen... - Page 6 IRITRACK REMOTE : MOTO – QUAD The remote box is an extension of the Iritrack in a reduced format offering the same functions as the latter (screen, buttons, voice, message). It must be fixed or screwed (Ø 4,50mm) to the navigation tower or handlebars (see photo below), then connected to the Iritrack via the cable built in the offset.
