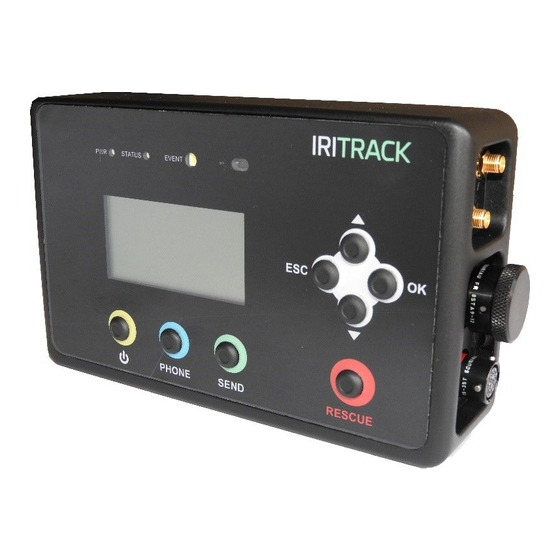

MARLINK IRITRACK V3 Mounting Manual

Car – ssv – truck
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Technical characteristics :

1) Dimensions : 180 x 112 x 53 mm (L x l x P), without bracket, plugs and cables
2) Weight : 830g
3) Consumption : 12V, 100mA on rest, 1500mA on communication
4) External power supply : Input: DC 6-42V (1A)
5) Internal battery : rechargeable Li-ion, 6800mAH - 3.75V
6) Internal antennas Iridium, GPS et radio
7) Microphone and speaker

Kit composition :

1) Iritrack bracket V3 (New) – APR4063
2) Power cable 1m V3 with terminals (New) – APR4059
3) Antenna Iridium 3m (car), 5m (truck) – APR4053/4056
4) Antenna GPS – APR2861
5) Cable GPS 3m (car), 5m (truck) – APR4030/4032
114/126, avenue d'Alfortville – 94600 CHOISY LE ROI – France
S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 –
RC 334 306 172 www.marlink.com - services.events@marlink.com
MOUNTING GUIDE IRITRACK V3
CAR – SSV – TRUCK
1
2
Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54
3
4
5
Iridium
GPS
Power
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRITRACK V3 and is the answer not in the manual?

Questions and answers

Related Manuals for MARLINK IRITRACK V3

Summary of Contents for MARLINK IRITRACK V3

  • Page 1 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
  • Page 2 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
  • Page 3 BRACKET Below, the New bracket of the Iritrack V3 and its sizes (open & closed) in millimetres (211,25 mm*134*70,5 mm). Space requirement to open the new bracket is 260mm in the width, essential to open the bracket and connect the device respecting a well cables curvature.
  • Page 4 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
