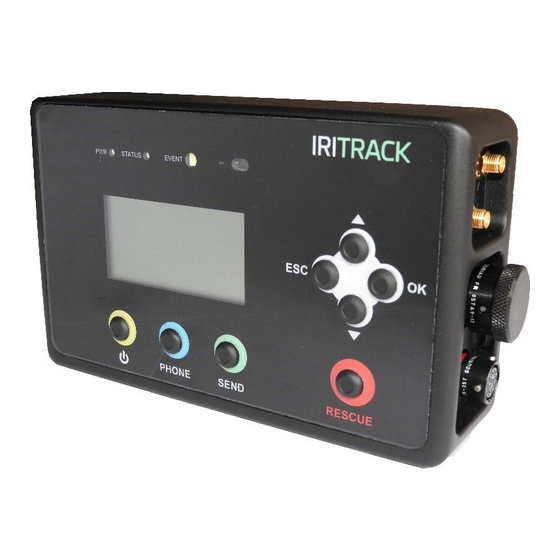

MARLINK IRITRACK V3 Mounting Manual

Bike - quad

Technical characteristics :

1) Dimensions : 180 x 112 x 53 mm (L x l x P), without bracket, plugs and cables

2) Weight : 830g

3) Consumption : 12V, 100mA on rest, 1500mA on communication

4) External power supply : Input: DC 6-42V (1A)

5) Internal battery : rechargeable Li-ion, 6800mAH - 3.75V

6) Internal antennas Iridium, GPS et radio

7) Microphone and speaker

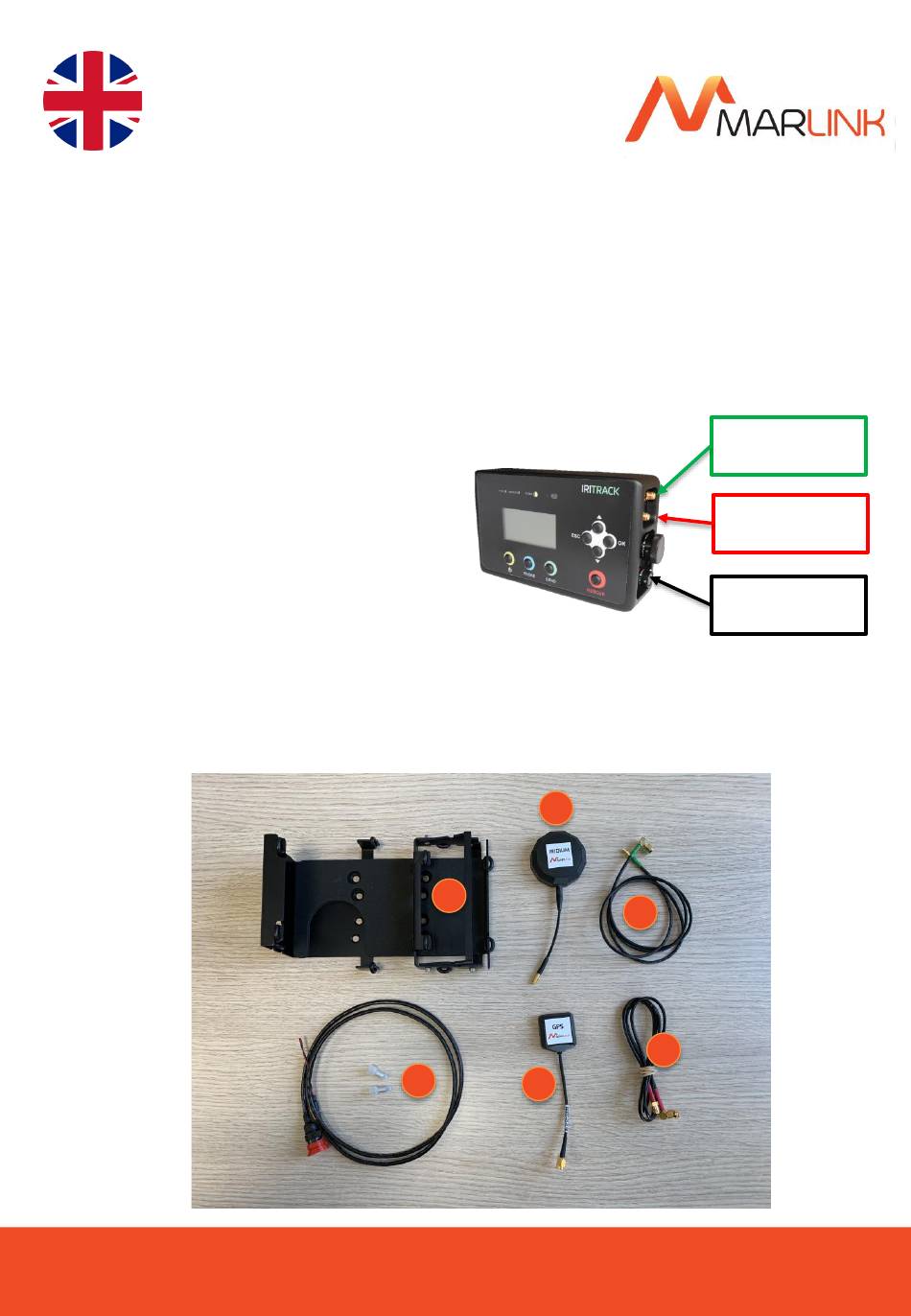

1) Iritrack bracket V3 (New) – APR4063

2) Power cable V3 1m with terminals (New) – APR4059

3) Antenna Iridium (10cm) – APR4036

4) Cable Iridium 1m (New) – APR4084

5) Antenna GPS (10cm) – APR2861

6) Cable GPS 1m – APR4029

114/126, avenue d'Alfortville – 94600 CHOISY LE ROI – France

S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 –

RC 334 306 172 www.marlink.com - services.events@marlink.com

MOUNTING GUIDE IRITRACK V3

BIKE - QUAD

Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54

Iridium

GPS

Power

Table of Contents

Do you have a question about the IRITRACK V3 and is the answer not in the manual?

Page 1 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
Page 2 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
Page 3 SILENT-BLOCKS The bracket must be installed with a shock absorption system : silent-blocks → ref Marlink : APR4057 (available on our E-shop https://eshop.marlink.com/en//) Without a valid shock absorption system, the installation will be declared as no compliant at the technical checks.
Page 4 Tél : +33 (0)1 48 84 34 00 - Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 6130 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
Page 5 1) Dimensions : 143 x 74 x 30 mm (L x W x D), without cable 2) Cable gland: 14,50mm 3) Weight : 220g, 4) Supplied by the Iritrack V3 (5-36VDC) The remote must be connected to the Iritrack through its power cable To turn on the Remote, turn on the Iritrack (ON button) •...
