MARLINK IRITRACK V3 Mounting Manual

What is Iritrack ?
Iritrack is an embedded real-time satellite (Iridium) tracking and security system providing reliable
two-way data and voice communications in a single device:
- Live tracking and time passage
- Geo-tracking on map of all vehicles (competitors, organization, rescue,...)
- Automatic alarm sending (inclinometer, decelerometer) & manual (buttons) to Race HQ in case
of accident, medical emergency, technical/mechanical issue
- Phone and text message communication with the Race HQ
*For more information, please see Iritrack User Guide
Iritrack is delivered just before the Rally after Administrative Checks validation.
Technical Characteristics:
1) Dimensions: 180 x 112 x 53 mm (L x l x P), without bracket/cables
2) Weight: 830g
3) Consumption: 12V, 100mA on rest, 1500mA on communication
4) External power supply: Input DC 6-42V (1A)
5) Internal battery: rechargeable Li-ion, 6800mAH - 3.75V
6) Internal antennas Iridium, GPS et radio
7) Microphone and speaker

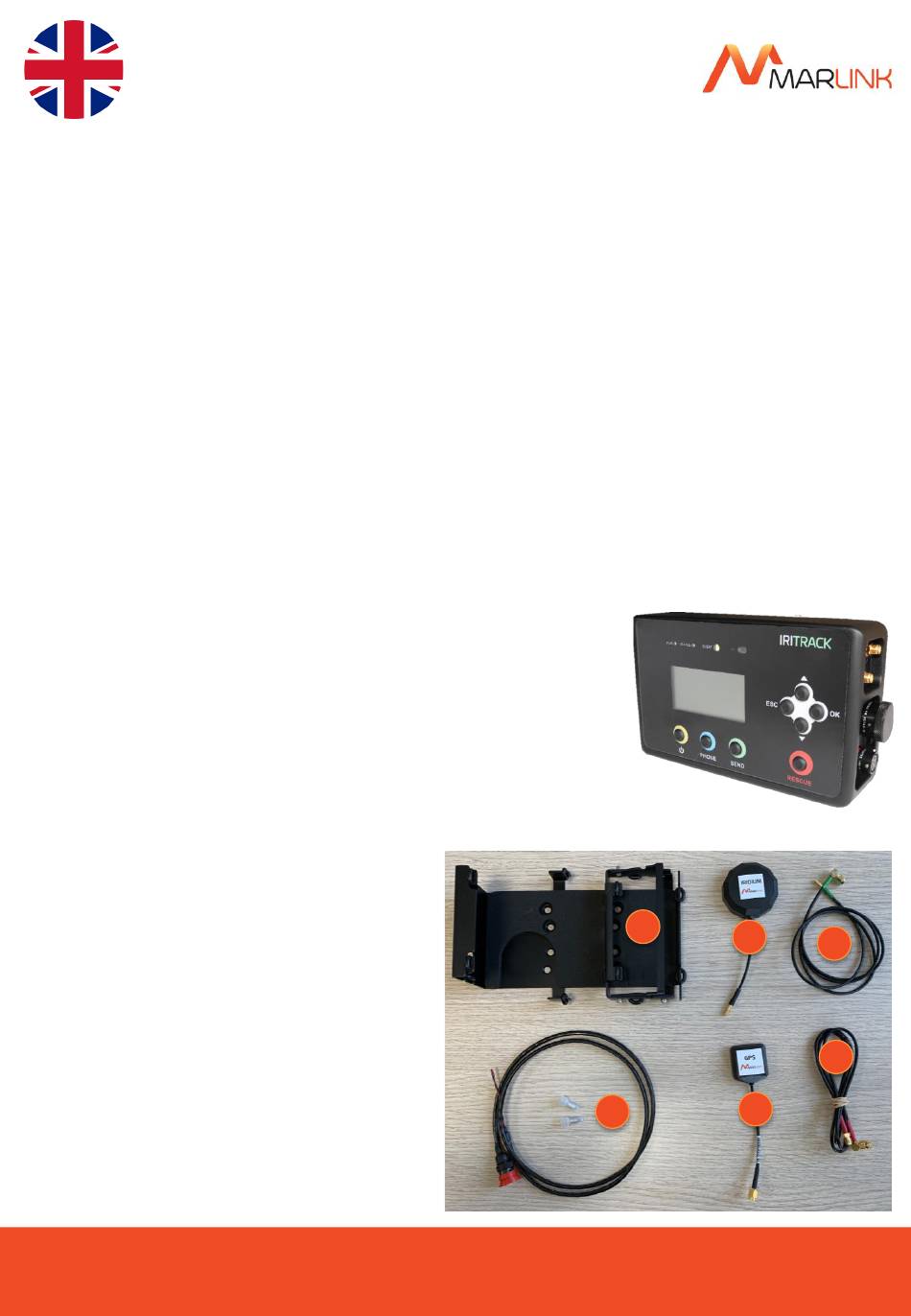

Kit composition:

1) Iritrack bracket – APR4063
2) Power cable 1m with terminals – APR4059
3) Iridium Antenna – APR4036
4) Iridium Cable 1m – APR4084
5) GPS Antenna – APR2861
6) GPS Cable 1m – APR4029
Marlink e-shop to order your equipment and
find more information:
https://eshop.marlink.com/en/
