1
3
Technical characteristics of the New Iritrack:
•
Dimensions: 180 x 112 x 53 mm (L x W x D), without bracket, plugs and cables
•
Weight: 830g
•
Consumption: 12V, 100mA on rest, 1500mA on communications
•
External power supply: Input: DC 6-42V (1A)
•
Internal battery: rechargeable Li-ion, 6800mAH - 3.75V
•
Internal Iridium, GPS and radio antennas
•
Embedded loud speaker & microphone.
The magnetic antenna must be installed horizontally and clear of all obstacles at 180 degrees towards the sky,
on the tower of the vehicle (metal surface).
The GPS and Iridium antennas can be side by side. It is forbidden to paint or to integrate them into the body of
the vehicle.
Connect the GPS cable to the GPS antenna and bring the GPS connector (SMA) to the bracket. Then, bring the
Iridium connector (SMA) to the bracket.
NEW
2
4
4
5
ANTENNAS AND CABLE
CAUTION: It is very important to put a shrinkable tube on each antenna / cable to couple
them.
Before heating the shrinkable tube, make sure the connectors are properly locked.
114/126, avenue d'Alfortville – 94600 CHOISY LE ROI – France - Tél : +33 (0)1 48 84 34 00 Fax : +33 (0)1 48 52 53 54
S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 5912 Z - SIREN 334 306 172 00084 – RC 334 306 172

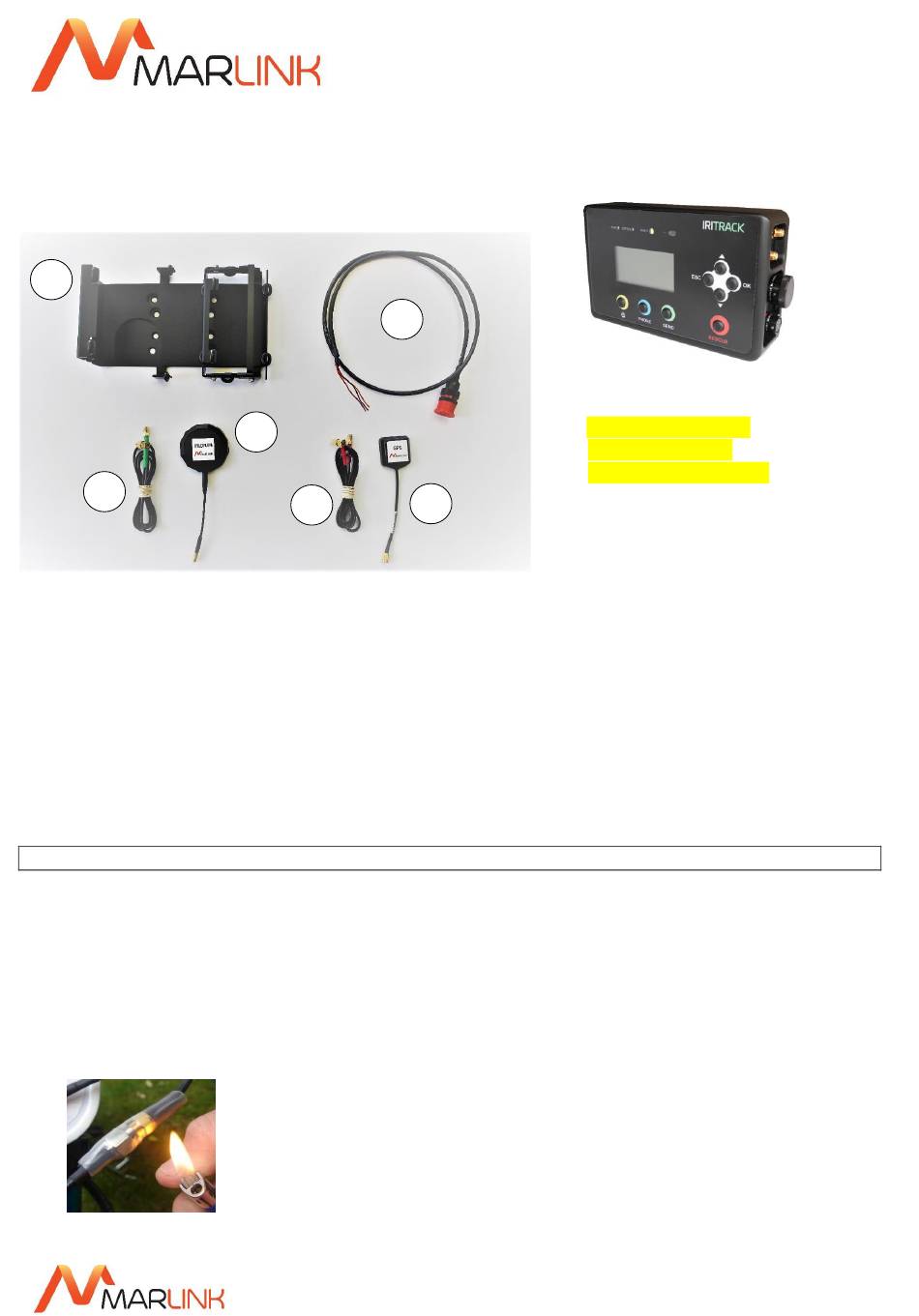

IRITRACK KIT – BIKE/QUAD

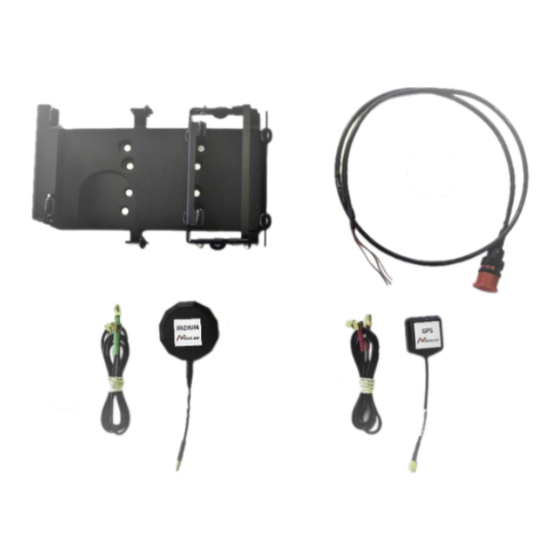

KIT COMPOSITION:
1: New Iritrack bracket
2: New power cable
3: New 1m Iridium Cable
4: Iridium antena (cut at 10cm)
6
5: 1m GPS cable
6: GPS antena (cut at 10cm)
www.marlink.com - services.events@marlink.com
