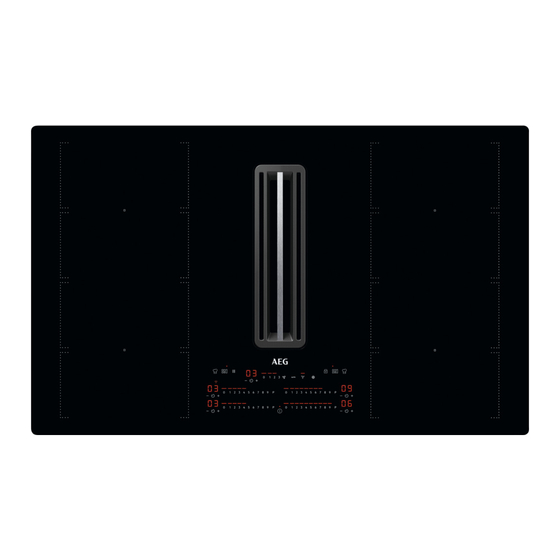

AEG CCS84779CB User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CCS84779CB
USER
MANUAL
EN
User Manual
Hob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCS84779CB and is the answer not in the manual?

Questions and answers

Related Manuals for AEG CCS84779CB

Summary of Contents for AEG CCS84779CB

  • Page 1 CCS84779CB User Manual USER MANUAL...

  • Page 2: Table Of Contents

    13. ENVIRONMENTAL CONCERNS..............29 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 Children should be supervised to ensure that they do • not play with the appliance and mobile devices with My AEG Kitchen. Keep all packaging away from children and dispose of • it appropriately. WARNING: Keep children and pets away from the •...
  • Page 4 WARNING: The appliance must not be supplied • through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. CAUTION: The cooking process has to be supervised.

  • Page 5: Safety Instructions

    ENGLISH If the supply cord is damaged, it must be replaced by • the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard. If the appliance is connected directly to the power • supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles.
  • Page 6 2.2 Electrical Connection installation. Make sure that there is access to the mains plug after the WARNING! installation. Risk of fire and electric • If the mains socket is loose, do not shock. connect the mains plug. • Do not pull the mains cable to •...
  • Page 7 ENGLISH • When you place food into hot oil, it glass ceramic. Always lift these may splash. objects up when you have to move • Never use an open flame when the them on the cooking surface. integrated hood operates. •...

  • Page 8: Installation

    3. INSTALLATION 3.5 Attaching the seal - On- WARNING! top installation Refer to Safety chapters. 1. Clean the worktop around the cut out 3.1 Before the installation area. 2. Attach the supplied 2x6mm seal Before you install the hob, write down the stripe to the lower edge of the hob, information below from the rating plate.
  • Page 9 ON-TOP INSTALLATION INTEGRATED INSTALLATION max.R5 min.55 max.R5 min.55 14,5 min.55 min.4 min.55 min.4 min. 1500 min. 1500 25-50 25-50 Find the video tutorial "How to install your AEG Extractor Hob" by typing out the full name indicated in the graphic below.

  • Page 10: Product Description

    Once the filter housing is How to install your AEG assembled, put it inside the hood cavity Extractor Hob and place the grid on the hood. 4. PRODUCT DESCRIPTION 4.1 Product overview...
  • Page 11 ENGLISH 4.3 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sen‐ Function Description field ON / OFF To activate and deactivate the appliance. Timer To set the function. To increase or decrease the time.

  • Page 12: Before First Use

    Onboarding can be done from On to Off. with Wi-Fi or Bluetooth (recommended). Refer to "Menu 1. Download My AEG Kitchen from the structure". app store. 2. Open the app and register to get an The network is forgotten.

  • Page 13: Daily Use

    ENGLISH 6. DAILY USE 6.4 OptiHeat Control (3 step WARNING! Residual heat indicator) Refer to Safety chapters. WARNING! 6.1 Activating and As long as the deactivating indicator is on, there is a risk of burns from residual heat. Press and hold to activate or deactivate the hob.
  • Page 14 Activating and deactivating The timer finishes counting down, a signal sounds and 00 blinks. The cooking the hood zone deactivates. Press any symbol to stop the signal and blinking. The hood can operate alongside the hob during the cooking session, as well as Minute Minder while the hob is switched off.
  • Page 15 ENGLISH 4. Press 0 on the hob control bar to mode of the hood, press AUTO or any other setting on the hood control deactivate a cooking zone or bar. deactivate the hob. A signal sounds and the indicator above If the residual heat indicator appears, the symbol disappears.

  • Page 16: Additional Functions

    Setting Possible op‐ For more details on the tions settings and easier menu navigation download My Wi-Fi On / Off (--) AEG Kitchen. Wi-Fi signal Three levels of OffSound Control strength signal strength. Onboarding On - the hob is You can activate / deactivate the sounds onboarded.
  • Page 17 ENGLISH The previous heat setting / fan speed setting comes on. Heat setting The hob deacti‐ vates after 7.4 Lock 6 - 9 1.5 hours You can lock the control panel while the hob operates. It prevents an accidental change of the heat setting / hood speed Fan speed setting The hood deacti‐...
  • Page 18 FlexiBridge function The flexible induction cooking area consists of four sections. The sections can be combined into two cooking zones with different size, or into one large cooking area. You choose the combination of the sections by choosing the mode applicable to the size of the cookware you want to use.
  • Page 19 ENGLISH Incorrect cookware position: Incorrect cookware position: FlexiBridge Max Bridge mode FlexiBridge Big Bridge mode To activate the mode press until you To activate the mode press until you see the correct mode indicator . This see the correct mode indicator .
  • Page 20 • The heat setting display of the left front control bar shows the heat setting for this function. To change the heat setting use the left front control bar only. The left rear control bar is deactivated while the function operates.

  • Page 21: Hints And Tips

    ENGLISH deactivate the cooking zones when the 8. To deactivate the function, press set time runs out. The timer affects all You can also press 0 on the left front three cooking areas activated by the control bar. function at the same time. A signal sounds and the indicator above the symbol disappears.
  • Page 22 • crack noise: cookware is made of in the operation time depends on the different materials (a sandwich heat setting level and the length of the construction). cooking operation. • whistle sound: you use a cooking 8.4 Examples of cooking...

  • Page 23: Care And Cleaning

    ENGLISH 8.5 Hints and Tips for the increases gradually. You can also adjust the speed of the fan manually. hood • In case of exhaust installation you have to install a window switch. You • The grid covering the hood is made of need to buy it separately as it is not aluminium and stainless steel.
  • Page 24 9.4 Cleaning the hood filter The filter prevents grease particles from getting into the hood system. The hob has a built-in counter that reminds you about cleaning the filter. After 100 hours 2.

  • Page 25: Troubleshooting

    ENGLISH 10. TROUBLESHOOTING WARNING! Refer to Safety chapters. 10.1 What to do if... Problem Possible cause Remedy You cannot activate or op‐ The hob is not connected to Check if the hob is correctly erate the hob. an electrical supply or it is connected to the electrical connected incorrectly.
  • Page 26 Problem Possible cause Remedy There is no sound when The sounds are deactivated. Activate the sounds. Refer to you touch the panel sen‐ "Daily use". sor fields. The flexible induction The cookware is in a wrong Place the cookware in the cor‐...
  • Page 27 ENGLISH Problem Possible cause Remedy The control bar for hood The fan may turn off by itself Open the window (you may blinks and the hood does in certain conditions, e.g. need to install the window not start or turns off. when the room is not proper‐...

  • Page 28: Technical Data

    Make sure, you operated the hob correctly. If not the 11. TECHNICAL DATA 11.1 Rating plate Model CCS84779CB PNC 949 597 943 00 Typ 66 D4A 05 CA 220 - 240 V / 400 V 2N 50 Hz Induction 7.35 kW...

  • Page 29: Energy Efficiency

    Hungary, Malta, Netherlands, Austria, Poland, Portugal, Romania, Slovenia, Slovakia, Finland, Sweden, Norway, Iceland, Liechtenstein, Switzerland, Turkey and Northern Ireland. 12. ENERGY EFFICIENCY 12.1 Product Information* Model identification CCS84779CB Type of hob Built-In Hob Number of cooking areas Heating technology Induction...
  • Page 32 www.aeg.com/shop...
