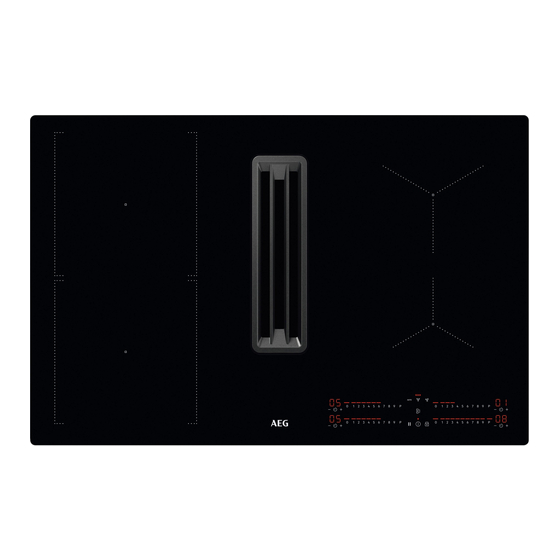

- Page 1 EN User Manual | Hob CCE84543CB aeg.com\register...
-
Page 2: Table Of Contents
FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. - Page 3 installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the...
- Page 4 • WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. •...
-
Page 5: Safety Instructions
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar. • Clean the hood filter regularly and remove grease deposits from the appliance to prevent the risk of fire. • If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard. - Page 6 • If the appliance is installed above a cable. Contact our Authorised Service drawer: Centre or an electrician to change a – Do not store any small pieces or damaged mains cable. sheets of paper that could be pulled in, •...
- Page 7 induction cooking zones when the • Cookware made of cast iron or with a appliance is in operation. damaged bottom can cause scratches on • When you place food into hot oil, it may the glass / glass ceramic. Always lift these splash.
-
Page 8: Installation
3. INSTALLATION Integrated installation WARNING! 1. Clean the rabbets in the worktop. Refer to Safety chapters. 2. Cut the supplied 3x10 mm seal stripe into 3.1 Before the installation four stripes. The stripes must have the same length as the rabbets. Before you install the hob, write down the 3. - Page 9 ON-TOP INSTALLATION Find the video tutorial "How to install your AEG Extractor Hob 80 cm" by typing out the full name indicated in the graphic below. ENGLISH...
- Page 10 CAUTION! www.youtube.com/electrolux www.youtube.com/aeg Connections via contact plugs are forbidden. How to install your AEG Extractor Hob 80 cm CAUTION! Do not drill or solder the wire ends. It is Filter housing assembly forbidden. Before first use make sure to place the filter...
-
Page 11: Product Description
4. PRODUCT DESCRIPTION 4.1 Product overview Grid Cabinet back wall fitting Filter Tube Filter housing Adapter Connector 4.2 Cooking surface layout Induction cooking zone Control panel Hood ENGLISH... - Page 12 4.3 Control panel layout 1 12 Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Description field On / Off To activate and deactivate the appliance. Pause To activate and deactivate the function. Timer To set the function.
-
Page 13: Before First Use
5. BEFORE FIRST USE 4. Press to exit. WARNING! Power levels Refer to Safety chapters. Refer to “Technical data” chapter. 5.1 Power limitation CAUTION! Power limitation defines how much power is Make sure that the selected power fits used by the hob in total, within the limits of the house installation fuses. - Page 14 directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware. The indicators appear when a cooking zone is hot. They show the level of the residual heat for the cooking zones you are currently using: - continue cooking, - keep warm,...
- Page 15 Minute Minder Activating and deactivating the hood You can use this function when the hob is The hood can operate alongside the hob activated but the cooking zones do not during the cooking session, as well as while operate. The heat setting shows 00. the hob is switched off.
- Page 16 5. To deactivate the function during cooking A signal sounds and the indicator above the and switch to the manual mode of the symbol disappears. hood, press AUTO. Automatic modes - fan speed levels Hood Residual heat level (hob is off) Residual heat level (hob is Boiling Frying...
-
Page 17: Additional Functions
To exit the menu: press Sym‐ Setting Possible options OffSound Control Alarm / error histo‐ The list of recent You can activate / deactivate the sounds in alarms / errors. the Menu > User settings. To enter user settings: press and hold for 3 seconds. -
Page 18: Hints And Tips
The heat setting is lowered to 1. The speed of To deactivate the function: press . Do the hood fan decreases to 1. not set any heat setting / hood setting. Press 2. To deactivate the function: press and hold for 3 seconds, until the indicator The previous heat setting / fan speed setting above the symbol disappears. - Page 19 • not correct: aluminium, copper, brass, glass, ceramic, porcelain. Cookware is suitable for an induction hob • water boils very quickly on a zone set to the highest heat setting. • a magnet pulls on to the bottom of the cookware.
-
Page 20: Care And Cleaning
Heat setting Use to: Time Hints (min) Keep cooked food warm. as neces‐ Put a lid on the cookware. sary 1 - 2 Hollandaise sauce, melt: butter, choco‐ 5 - 25 Mix from time to time. late, gelatine. Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on. - Page 21 special hob scraper on the glass surface • wipe away the excess liquid gathered on at an acute angle and move the blade on the bottom of the hood cavity using a the surface. sponge or a dry cloth, • Remove when the hob is sufficiently •...
- Page 22 a. Slide the filter elements inside the Disassembling / reassembling the filter filter housing along the built-in runners. Make sure that the black The filter and filter housing are located right sides are facing inwards and the under the grid in the centre of the hob. silver sides are facing out.
-
Page 23: Troubleshooting
10. TROUBLESHOOTING WARNING! Refer to Safety chapters. 10.1 What to do if... Problem Possible cause Remedy You cannot activate or operate The hob is not connected to an elec‐ Check if the hob is correctly connected the hob. trical supply or it is connected incor‐ to the electrical supply. - Page 24 Problem Possible cause Remedy The control bar blinks. There is no cookware on the zone or Put cookware on the zone so that it the zone is not fully covered. fully covers the cooking zone. The cookware is unsuitable. Use cookware suitable for induction hobs.
-
Page 25: Technical Data
11. TECHNICAL DATA 11.1 Rating plate Model CCE84543CB PNC 949 597 893 00 Typ 66 D4A 01 AA 220 - 240 V / 400 V 2N, 50 Hz Induction 7.35 kW Made in: Germany Ser.Nr....7.35 kW 11.2 Cooking zones specification... - Page 26 12.3 Product Information and Product Information Sheet for hood Product Information Sheet according to (EU) No 65/2014 Supplier’s name or trade mark Model identifier CCE84543CB Annual Energy Consumption - AEChood 30.9 kWh / a Energy Efficiency Class Fluid Dynamic Efficiency - FDEhood 33.1...
-
Page 27: Environmental Concerns
Energy Efficiency Index - EEIhood 42.0 Measured air flow rate at best efficiency point - QBEP 268.5 m3 / h Measured air pressure at best efficiency point - PBEP Maximum air flow - Qmax 630.0 m3 / h Measured electric power input at best efficiency point - WBEP 105.8 Nominal power of the lighting system - WL Average illumination of the lighting system on the cooking surface - Emiddle... - Page 28 867373868-E-062023...
