10.0 Power Switch & Rear Panel Connections

10.1 Power Switch

The power switch for the 2500+ is located on the right side of the front panel.

10.2 Rear Panel

The rear panel of the 2500+ provides the Left and Right audio input, output, and side chain
connections, as well as AC power connections, voltage selection, and fuse.

10.2.1 Audio Connections

Each audio channel, Left and Right, has an INPUT, OUTPUT, and SIDE CHAIN input connection.
NOTE: Channel 1 = Left and Channel 2 = Right

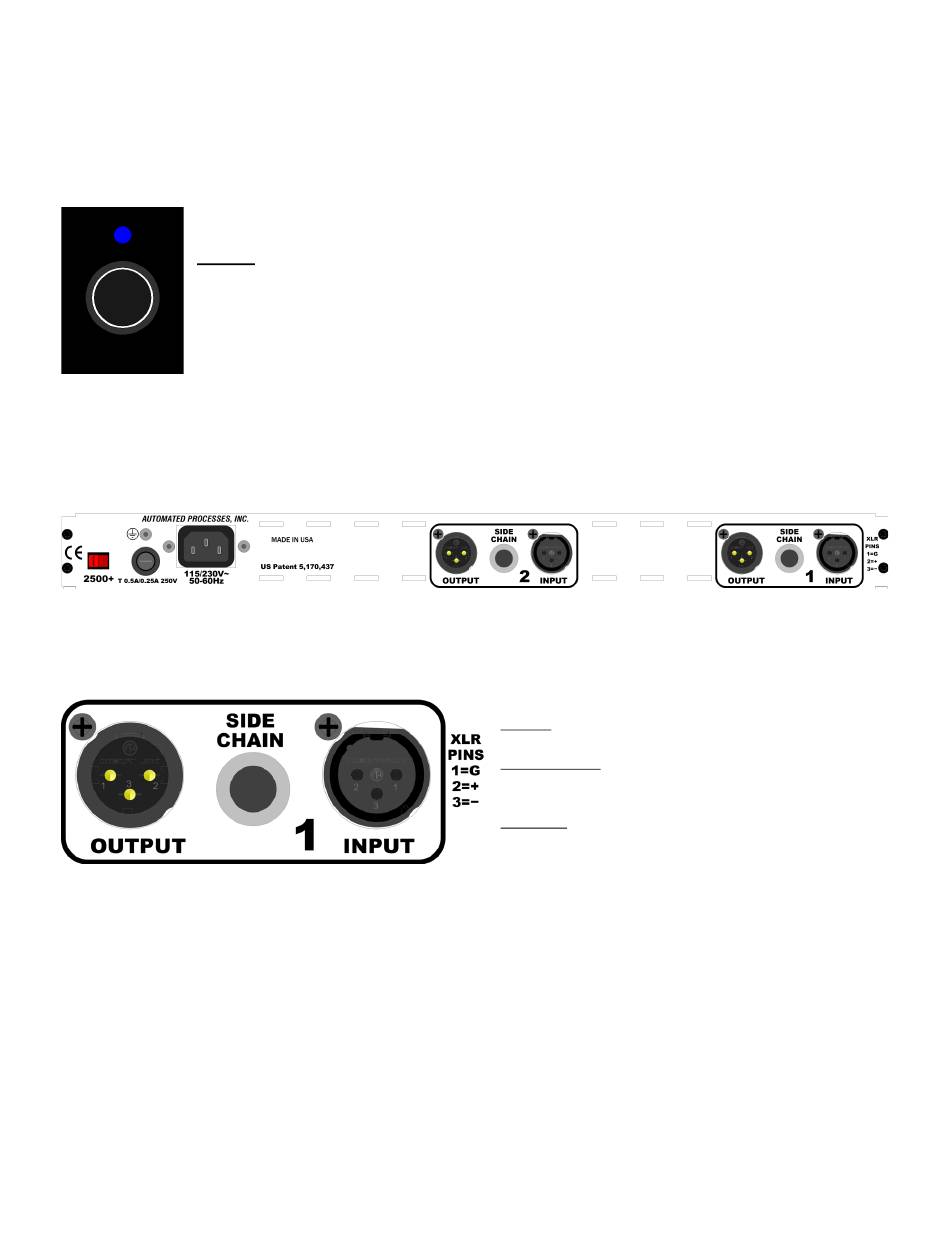

2500+ Bus Compressor
Power: Toggle to power the 2500+ ON and off
Blue LED illuminates when powered ON
INPUT: Balanced, line-level
3-pin female XLR connector
SIDE CHAIN: Balanced, line-level input
¼" TRS connector
Tip=+, Ring=-, Sleeve=ground
OUTPUT: Balanced, line-level
3-pin male XLR connector
