8.0 Stereo VU Meters

The Left and Right stereo VU meters can indicate gain reduction and the signal level at the INPUT and
OUTPUT connectors.

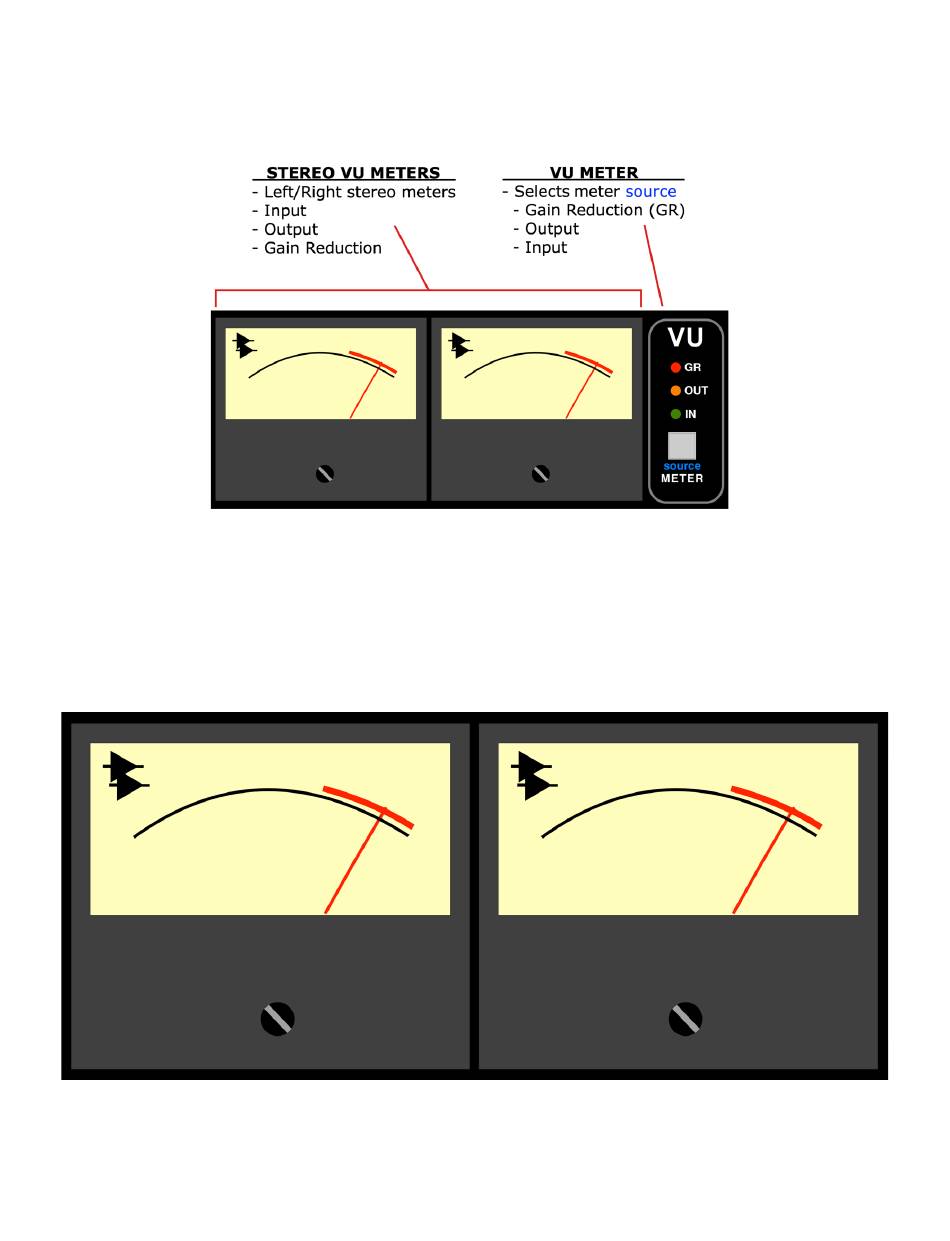

8.1 VU Meter Controls

8.1.1 Stereo VU Meters
The Left and Right stereo VU meters indicate the amount of gain reduction being applied, as well as
the signal level at the INPUT and OUTPUT connectors. 0 VU is +4dBu.
The GAIN scale shows the amount of gain reduction during compression, with the 0 point being all the
way to the right, allowing more resolution of the gain reduction scale. The range of the meter is from
0 (no gain reduction) to 20dB of gain reduction.
