SolarEdge TerraMax™ Inverter Cover Nut holder

replacement - Support kit manual

This manual describes the procedure for replacing the Cover Nut holder attachments on the

SolarEdge TerraMax inverter cover.

Revision history

Version 1.2, July 2024 – Updated name of DC switch and required tools

Version 1.1, March 2024 – Changed name to TerraMax

Version 1.0, January 2024 – Initial release.

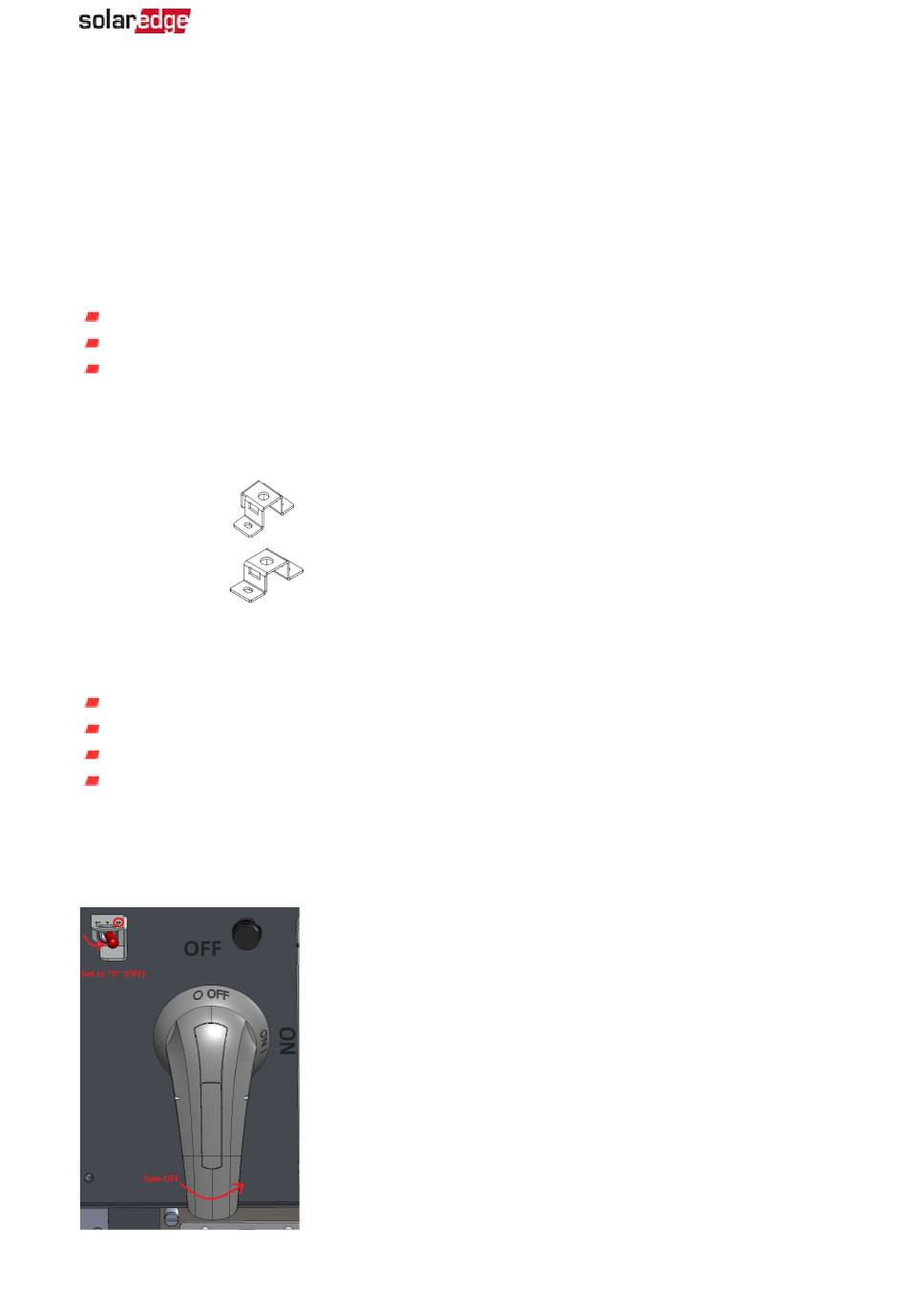

Kit contents

SolarEdge TerraMax Inverter cover nut holder PN: FLD-3PH-OR-CVR-OMG

Holder M5 nut x2

M4 x 10 hexalobular screws x2

Required tools

Torque screwdriver

4mm hex bit

T25 torx bit

Voltmeter

Before you begin

1. Set the P/1/0 switch to "0" (OFF).

2. Turn the DC Disconnect (DCD) switch to the OFF position.

SolarEdge TerraMax Inverter Cover Nut holder replacement

Version 1.2, July 2024

Need help?

Do you have a question about the TerraMax and is the answer not in the manual?

Page 1 SolarEdge TerraMax inverter cover. Revision history Version 1.2, July 2024 – Updated name of DC switch and required tools Version 1.1, March 2024 – Changed name to TerraMax Version 1.0, January 2024 – Initial release. Kit contents SolarEdge TerraMax Inverter cover nut holder PN: FLD-3PH-OR-CVR-OMG...

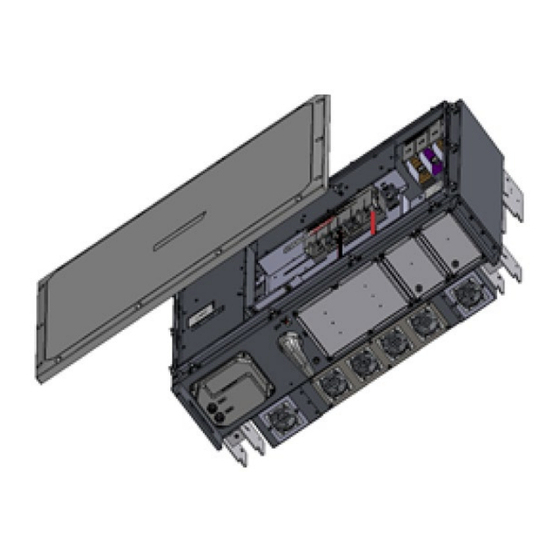

Page 2 Remove the cover NOTE The inverter cover assembly is too big for one person to handle safely. SolarEdge recommends that two people remove and handle the cover assembly. To remove the cover, use a screwdriver with a 4mm hex bit to release the screws holding the cover in place.
Page 3 3. Place the new Cover Nut holder in position, re-insert the screws and, using a torque screwdriver, tighten the screws to a torque of 2.4N·m (21.2lbf·in). SolarEdge TerraMax Inverter Cover Nut holder replacement...
Page 4 Turn on the power 1. Unlock the power distribution panel and turn ON the AC circuit breaker/s. 2. Remove the padlock and turn the DCD switch ON. 3. Set the P/1/0 switch to “1” (ON). SolarEdge TerraMax Inverter Cover Nut holder replacement...
