SolarEdge TerraMax

Long Bracket replacement - Support kit manual

This manual describes the procedure for replacing the SolarEdge TerraMax Inverter Internal

Fan for Long Bracket.

Revision history

Version 1.2, July 2024 – Updated name of DC switch and required tools

Version 1.1, March 2024 – Name changed to TerraMax

Version 1.0, December 2023 – Initial release

Kit contents

SolarEdge TerraMax Inverter Internal Fan for Long Bracket

PN: FLD-3PH-OR-IN-02.

Required tools

Torque screwdriver

4mm hex bit

Flat screwdriver

Voltmeter

Before you begin

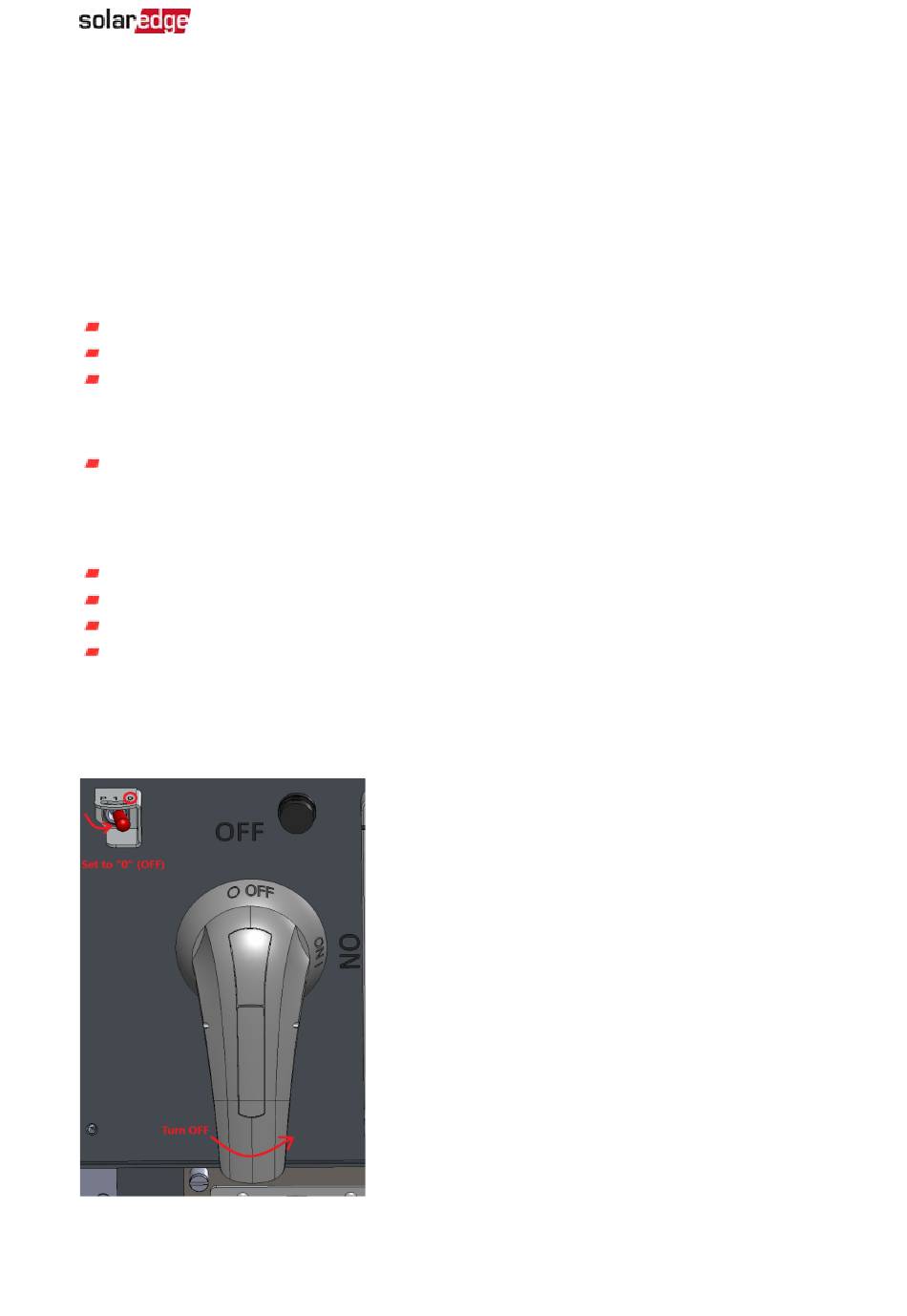

1. Set the P/1/0 switch to "0" (OFF).

2. Turn the DC Disconnect (DCD) switch to the OFF position.

SolarEdge TerraMax Inverter Internal Fan for Long Bracket replacement

Inverter Internal Fan for

Version 1.2, July 2024

Need help?

Do you have a question about the TerraMax and is the answer not in the manual?

Page 1 SolarEdge TerraMax Inverter Internal Fan for Long Bracket replacement - Support kit manual This manual describes the procedure for replacing the SolarEdge TerraMax Inverter Internal Fan for Long Bracket. Revision history Version 1.2, July 2024 – Updated name of DC switch and required tools Version 1.1, March 2024 –...
Page 2 To remove the cover, use a screwdriver with a 4mm hex bit to release the screws holding the cover in place. NOTE The inverter cover assembly is too big for one person to handle safely. SolarEdge recommends that two people remove and handle the cover assembly. Inverter Cover Assembly...
Page 3 2. Using a flat screwdriver, loosen the two screws holding the fan. 3. Pull the fan and bracket out of the inverter. Removing the fan and bracket 4. Disconnect the fan’s power cable. SolarEdge TerraMax Inverter Internal Fan for Long Bracket replacement...
Page 4 1. Unlock the power distribution panel and turn ON the AC circuit breaker/s. 2. Remove the padlock and turn the DCD switch ON. 3. Set the P/1/0 switch to “1” (ON). SolarEdge TerraMax Inverter Internal Fan for Long Bracket replacement...
