Kyocera TASKalfa 2550ci Service Manual page 400

(2) MP tray paper feed section
The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper
feed roller. Also, function of the MP separation pad prevents paper from multiple feeding.
2
1. MP paper feed roller
2. MP separation pad
3. MP bottom plate
4. Actuator(MP paper feed sensor)
YC2-11
YC2-12
YC2-13
YC2-14
YC2-2
EPWB
YC5-9
YC44-6
YC44-3
YC44-2
3
4

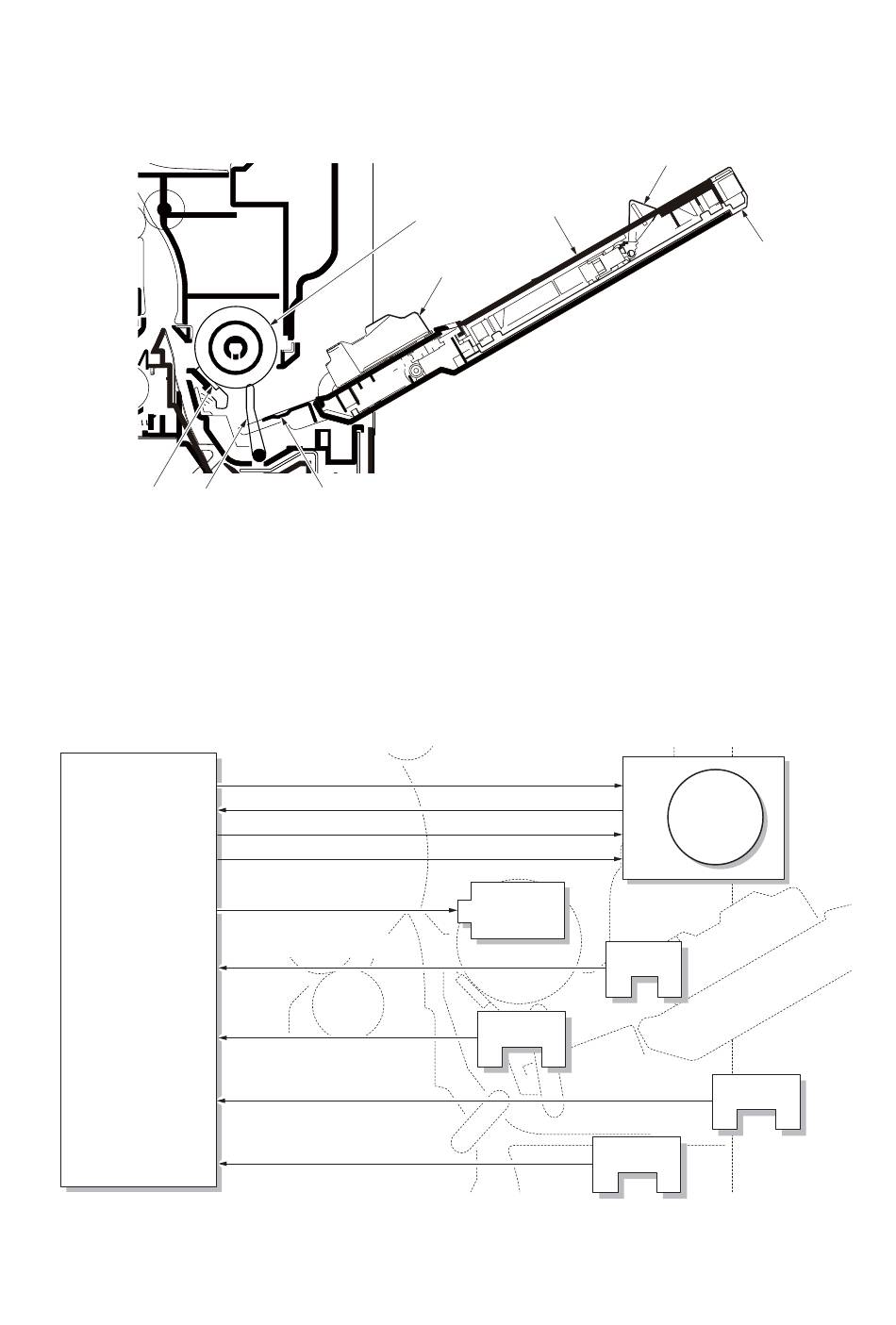

Figure 2-1-3 MP tray paper feed section
FEED_MT_CW
FEED_MT_LDY
FEED_MT_CLK
FEED_MT_REM
MPF_SOL_REM
MPF_SENSE
MPF_TRAY
MPFLSIZE
MPFWSIZE
Figure 2-1-4 MP tray paper feed section block diagram
5
1
7
5. MP (multi purpose)tray
6. MP tray extension
7. MP paper width guide
8. Actuator (MP paper length switch)
MPSOL
MPTDSW
2-1-3
8
6
6
5
CM1
4
3
MPPS
MPPLSW
MPPWSW
2MV
