(2) Detaching and refitting the drive unit 2
Procedures
1. Remove the rear cover.
(See page 1-5-5)
2. Remove five connectors.
3. Remove four screws and then remove
the drive unit 2.
4. Check or replace the drive unit 2 and
refit all the removed parts.
(3) Detaching and refitting the drive unit 3
Procedures
1. Remove the rear cover.
(See page 1-5-5)
2. Remove two connectors.
3. Remove two wire holders and then
release the wires.
4. Remove four screws.
5. Release the hook and remove the drive
unit 3.
6. Check or replace the drive unit 3 and
refit all the removed parts.
Drive unit 2
Screw
Screw
Screw
Screw
Hook
Screw
Screw
Screw
Screw
Drive unit 3
1-5-20
Connectors
Connector
Drive unit 2

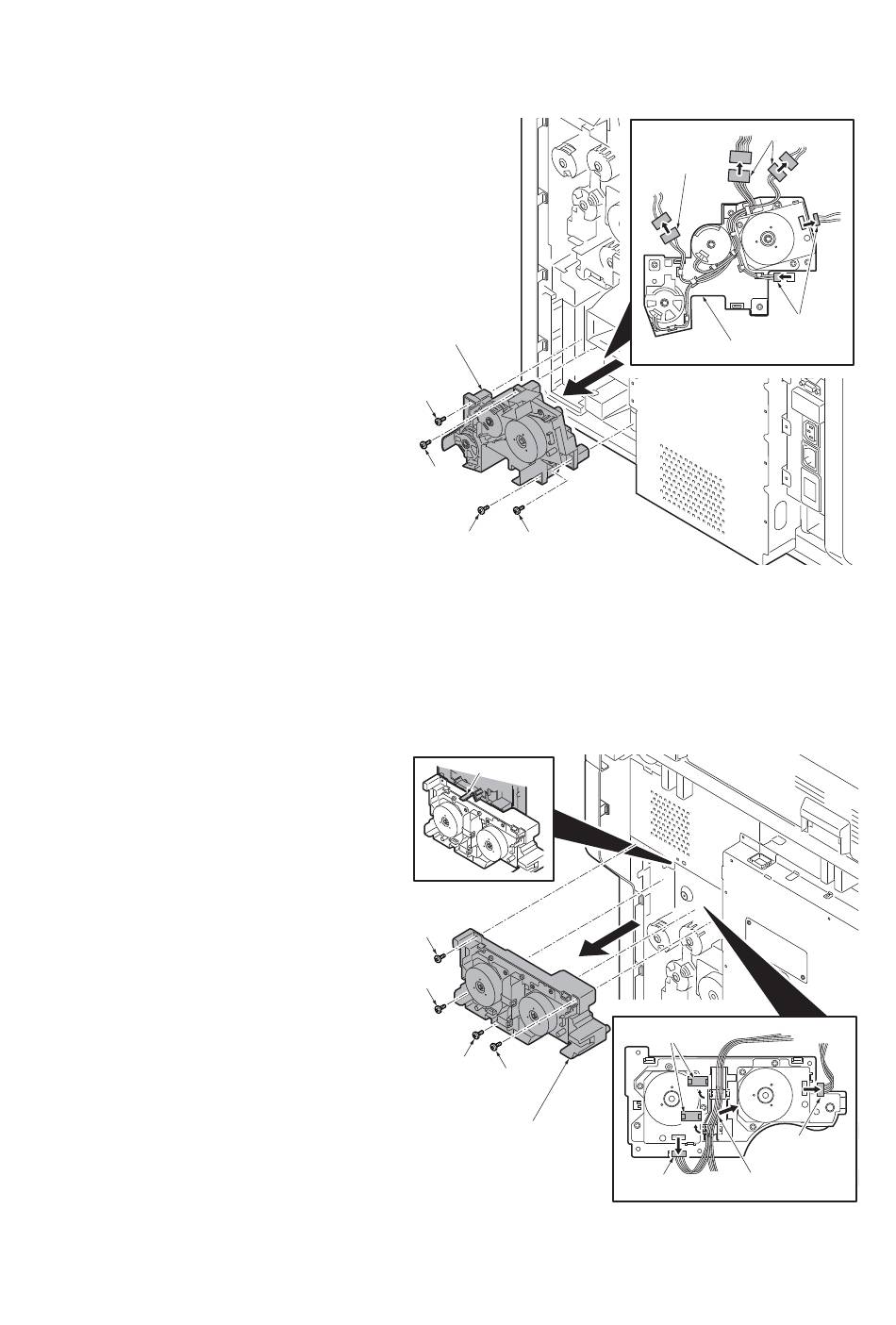

Figure 1-5-34
