Summary of Contents for Dreame F9

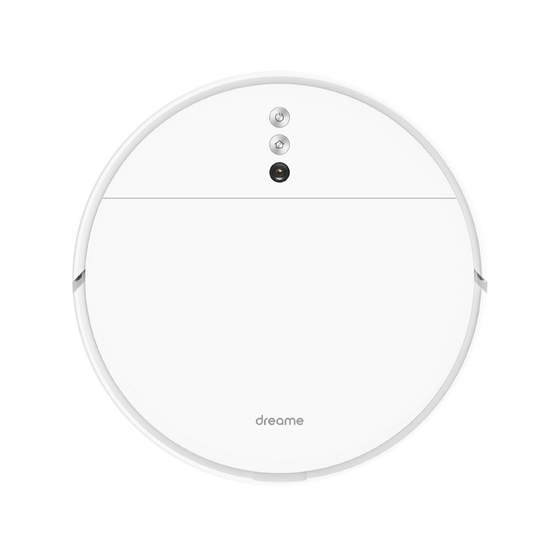

- Page 1 Dreame F9 Robot Vacuum...
-
Page 2: Table Of Contents
1. How to connect Dreame F9 robot with Mi Home app? ........2 2. How to reset Wi-Fi with Dreame F9 robot? ............3 3. How to use the Spot Clean function with Dreame F9 robot? ......4 4. How to use the Do-Not-Disturb mode with Dreame F9 robot? ....4 5. - Page 3 6． How does Dreame F9 return to dock for charging? ........12 7． How to clean the main brush of Dreame F9? ............ 12 8． How to clean the dust compartment and filter of Dreame F9? ....13 9． How to clean the driving wheels of Dreame F9? ..........15 10．...
- Page 4 5． What should I pay attention to before cleaning with Dreame F9? .... 20 6． Do I need to charge the F9 for 16 hours for the first three tasks? ..... 20 7 ． Do I need to update the firmware whenever there is a new version released?..........................20...
- Page 5 What should I do if the side brush or main brush is entangled during cleaning？ ..........................23 What should I do if the F9 is entangled with the power cord of the dock during cleaning？ ........................ 23 Why does F9 reclean an area after being moved？ ........23 Why does F9 fail to reposition itself？...
- Page 6 Does F9 consume any power when connected with the dock？ .... 26 Why does F9 fail to return to the dock? ............26 Why does F9 keep trying to connect after returning to the dock? ..26 Is the dust compartment difficult to open? ........... 27 What if the water tank fall off during mopping? ..........
-
Page 7: General
General 1．What is Dreame F9 robot？ A：Dreame F9 robot is a smart robot vacuum and mop that can handle sweeping and mopping at the same time in different house types, and return to the dock after cleaning, a powerful tool to make floor cleaning easier. -
Page 8: What Advantages Does Vslam Navigation Have Over Lds Laser Navigation
A：Dreame F9 is powered by a vision navigation technology with embedded vision sensors, keeping the robot height at only 8 cm. Compared with LDS laser navigation products, F9 is thinner and easier to enter the bottom of beds, cabinets, and other furniture for a larger cleaning coverage. -
Page 9: How To Reset Wi-Fi With Dreame F9 Robot
Tip: Due to different firmware versions of the app, actual operation may be slightly different from the above. 2. How to reset Wi-Fi with Dreame F9 robot? A：When your phone fails to connect with the robot due to router configuration changes, forgetting password or other reasons, open the top cover and observe the Wi-Fi indicator LED. -
Page 10: How To Use The Spot Clean Function With Dreame F9 Robot
A：DND mode is enabled by default from 22:00 pm to 08:00 am, you can disable or edit DND mode with Mi Home app. During the DND period, F9 will stop cleaning and voice reporting, and the power indicator is turn off. -
Page 11: How To Use Dreame F9 Robot Advanced Map Feature
Dreame F9 robot? A：Launch Mi Home APP, go to Settings - Experimental Features and enable Carpet Boost, where F9 will automatically detect carpets and boost the suction power for optimal cleaning effect. Tip: Carpet detection has a certain probability of misidentification when using on low pile carpet. -
Page 12: How Does Dreame F9 Robot Clean Up The Entire House
A ： Yes. The robot supports overcharging protection, and will disconnect automatically once fully charged. What is the size of Dreame F9? A：The dimensions of Dreame F9 is 350*350*80 mm. With a height of 8.0 cm, the robot could pass through all furniture who has ground clearance higher... -
Page 13: How Long Does It Take To Fully Charge Dreame F9
How long does it take to fully charge Dreame A：6 to 8 hours. How long could the Dreame F9 work? A: The Dreame F9 could work longer than 150 minutes at standard mode, yet the working time might be affected by temperature and the situation of cleaning surface. -
Page 14: Regularly
Does Dreame F9 have any consumables that need to be replaced regularly? A： Consumables Maintenance Main brush It is recommended to clean every week and replace the main brush every 6-12 months for a better cleaning result. Filter It is recommended to clean every week and replace the filter... -
Page 15: 2． How To Charge Dreame F9
Dreame F9 onto the charging dock, it will begin charging when you hear the voice“start charging”. Note: Dreame F9 may fail to power on in low battery. Please connect the robot with the dock manually. 3． How to mop with Dreame F9? A：... - Page 16 （2）Fill the water tank: Open the cover of the water tank, fill with water and close the cover. （3）Align the mop module with the markings in the rear of the robot, keep the module level and push in until you hear a click sound, indicating it is properly installed.
-
Page 17: 4． How To Remove The Water Tank With Dreame F9
4． How to remove the water tank with Dreame F9? A： After F9 returns to the dock after cleaning, press the buckles on both sides of the mop module, and pull back to remove the water tank. -
Page 18: 6． How Does Dreame F9 Return To Dock For Charging
Power ≤ 15% is indicated by orange flashes, power > 15% is indicated by white flashes. Tip: If the F9 fails to return to dock, it will automatically return to the starting point of cleaning. Please manually put the robot back to the dock for charging. -
Page 19: 8． How To Clean The Dust Compartment And Filter Of Dreame F9
6-12 months for a better cleaning result. 8． How to clean the dust compartment and filter of Dreame F9? A： （1）Open the upper cover of the robot, press the buckle to remove the dust compartment; （2）Open the compartment cover marked with the arrow and remove... - Page 20 （3）Fill the dust compartment with water, close the cover, shake the compartment left and right, pour out, and repeat for several times; Note: Wash the compartment with water only. Do not add any detergent or clean the filter screen with finger or brush. （4）Remove the filter screen as illustrated, spin off the water, dry the filter before installing it back to the compartment for use.
-
Page 21: 9． How To Clean The Driving Wheels Of Dreame F9
9． How to clean the driving wheels of Dreame F9? A： 1. Turn the robot over and pull the driving wheels upward. 2. Clean the hair and dirt on the wheels and axles. 3. Reinstall the wheels by pressing them firmly down. -
Page 22: 11． How To Clean The Mop Of Dreame F9
11． How to clean the mop of Dreame F9? A： 1. Remove the mop pad from the module. 2. Wash and dry the mop. Tip: It is recommended to clean up after each time after use. Remove the mop after cleaning, in case the sewage backfills the water tank and clog the outlet;... -
Page 23: 13． How To Maintain The Battery Of Dreame F9
4． The Optical Sensor at the bottom of the robot 13． How to maintain the battery of Dreame F9? A : The Dreame F9 is powered by a built-in high-performance Li-Po rechargeable battery pack. In order to maintain battery performance, please keep the robot charged for daily use. -
Page 24: 14． How To Update The Firmware Of Dreame F9
15% battery left. 15． How to restore to factory settings with Dreame F9? A：If F9 still fails to operate normally after restarting, press and hold the reset button with a tool until hearing the voice prompt "start to restore factory settings". -
Page 25: 2． What Should I Do If The F9 Fails To Charge
When connecting to the hot spot of Dreame F9, return to Mi Home app to wait for connection result after hearing the voice report. Ensure the location permission of the app has been enabled before network connection. Failure to enable the permission will result connection failure. -
Page 26: 4． What Should I Do If The Top Cover Of The Water Tank Leaks
A : Make sure the F9 is fully charged before cleaning. Tidy up the space, put away fragile items and objects on the floor before cleaning. 6． Do I need to charge the F9 for 16 hours for the first three tasks? A : No. -
Page 27: Why Does Dreame F9 Keep Cleaning The Same Place Or Miss Spots During
A : The minimum width for F9 to pass through is 38 cm. Any spaces narrower than this number are not available for F9 to clean. Will the cleaning efficacy of F9 drop when cleaning a complicated environment？ A : F9 will clean all corners in your home to ensure a full coverage. In a complex... -
Page 28: How To Reduce The Noise Of F9 During Cleaning
Why does F9 make strange sounds during cleaning? A : When cleaning on tile or wood floor, F9 may produce a slight sound when its bottom rubs on the floor. F9 will clean and sweep the joins on the floor as it passes through, which may produce a slight rattling sound. -
Page 29: Through A Narrow Space
A : F9 may get stuck when it tries to clean a narrow space, for example, the bottom of a closet which is close to its height. Magnetic stripes are provided to help set a virtual wall, or you can block the narrow space with an obstacle to prevent F9 from entering. -
Page 30: Why Does F9 Fail To Reposition Itself
If a person is standing next to the F9, it will fail to reposition itself. Do not stand next to F9 and ensure the camera has full access to all feature points in the room. -
Page 31: Why Does F9 Collide With The Walls When Vacuuming Along The
Clean the dust on the charging interface of the dock and the robot. Why does the battery decrease rapidly during cleaning？ A : After F9 is charged and stored for a long time, it is normal for the battery to... -
Page 32: Does F9 Consume Any Power When Connected With The Dock
0.5 m on both sides and 1.5 meters in front of the dock. If F9 does not start from the dock for cleaning, it may fail to find the dock after finishing up. Please ensure F9 starts cleaning from the dock. -
Page 33: Is The Dust Compartment Difficult To Open
How to mop stubborn stains on the floor? A : F9 may not be able to remove the most stubborn stains on the floor. Please clean them manually. -
Page 34: Why Do I Sell Odor From The Mop And Dust Compartment
A： Make sure the F9 is not working in DND period. If you actively command it to return or manually move it back to the dock, F9 will not resume cleaning either. Why does the performance of F9 fade with missed debris on the floor？... -
Page 35: Why Do I Fail To Update The Firmware Of F9
Check network connection. Does the camera of F9 violate my privacy？ A: Never, the camera of F9 is only used for locating and navigating, all data collected will be stored temporarily then soon deleted, will never violate any privacy of user.
