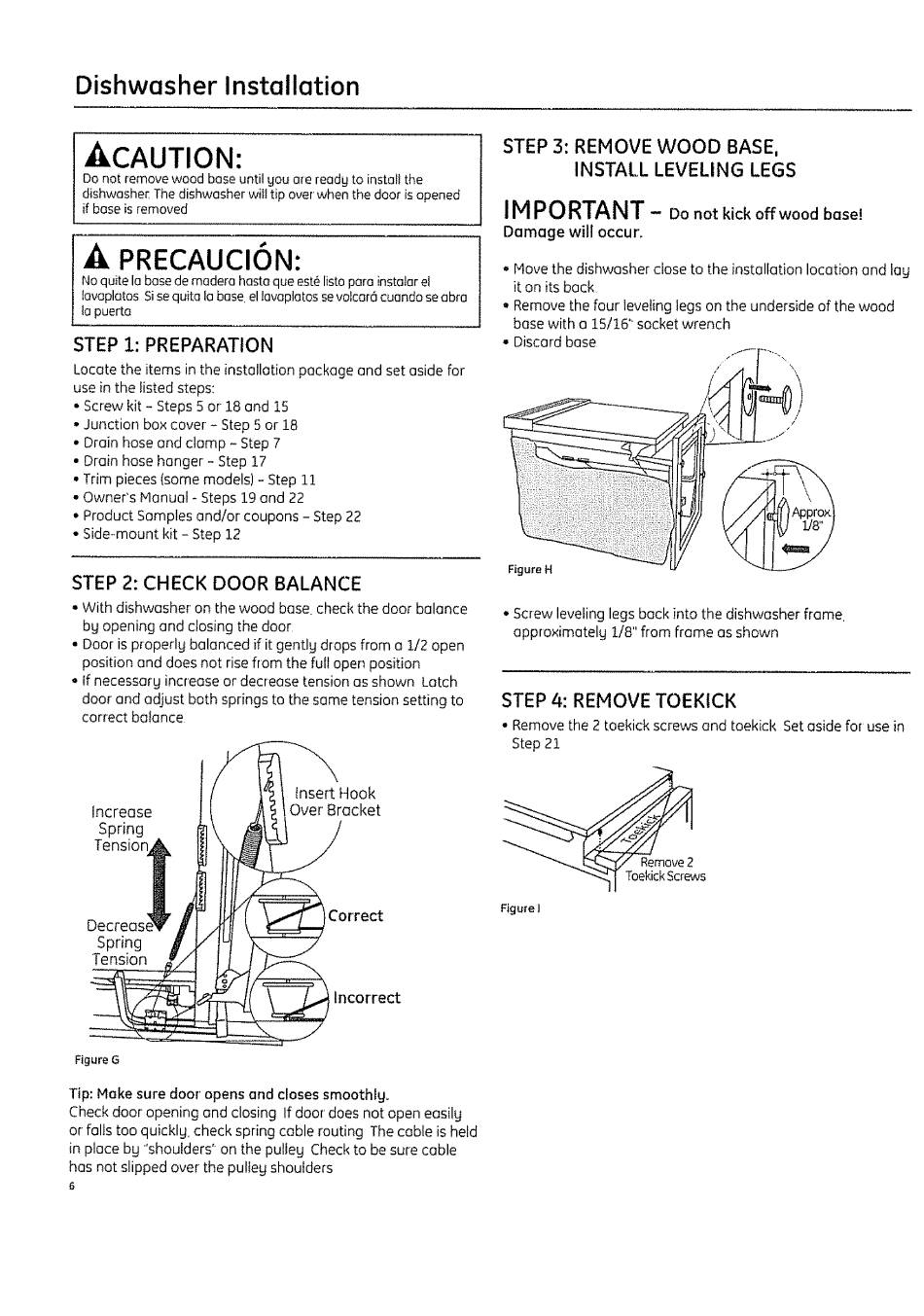

Dishwasher Installation
CAUTION:
Do not remove wood base until gou are readg to instaIl the
dishwasher, The dishwasher will tip over when the door is opened
if base is removed
PRECAUCION:
NOquite la base de madera haste que est_ listo pare instatarel
tavaplatos Si sequite la base ellavaplatos sevolcar6 cuando se abra
la puerto
STEP 1: PREPARATION
Locate the items in the installation package and set aside for
use in the listed steps:
• Screw kit - Steps 5 or 18 and 15
• Junctionbox cover - Step5 or 18
• Drainhose and clamp - Step7
• DFainhose hanger- Step 17
• Trim pieces(some models)- Step 11
• Owner's Hanual - Steps 19 and 22
• Product Samples and/or coupons - Step 22
• Side-mount kit - Step 12
STEP 2: CHECK DOOR BALANCE
• With dishwashe_ on the wood base check the door balance
bg opening and closing the door
• Door is properlg balanced if it gentlg drops from a 1/2 open
position and does not rise flom the full open position
o if necessarg increase or decrease tension as shown Latch
door and adjust both springs to the same tension setting to
correct balance
STEP 3: REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT - Do notkick offwood base!
Damage will occur'.
, Hove the dishwasher close to the installation location and lay
it on its back
• Remove the four leveling legs on the underside of the wood
base with o 15/16" socket wrench
• Discard base
l_[_ tAPr
Figure H
° Screw leveling legs back into the dishwasher frame
approximately 1/8" from frame as shown
STEP 4: REMOVE TOEKICK
• Remove the 2 toekick screws and toekick Set aside for use in
Step 21
Increase
Spring
Tension
insert Hook
Over Bracket
Decrees
Spring
Tension
Correct
incorrect
Figure I
Figure G
Tip: Make sure door' opens and closes smoothlgo
Check door opening and closing If door does not open easilg
or falls too quicklg, check spring cable routing The cable is held
in place bg 'shoulders" on the pulteg Check to be sure cable
has not slipped over the pulleg shoulders
6
