GE GLD3806T Dimensions And Installation Information

Tall tub built-in dishwasher
Hide thumbs

Advertisement

Quick Links

GLD3806/46/66T
GE
Tall Tub Built-In Dishwasher
®
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 10
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: The rough cabinet opening must be at
least 24" deep, 24" wide and approximately
34-1/2" high from floor to underside of
the countertop. Dishwasher must not be
installed more than 10 feet from sink for
proper drainage. All plumbing and
electrical work must be in accordance
with local codes. The power cord and
connections must comply with the National
Electrical Code Section 422 and/or local
codes and ordinances. The cord must be no
longer than 6 ft. from the junction box to
the receptacle.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
60
34-1/2"
Underside of
Countertop
to Floor
Figure A
or
Floor MUST be Even
service,
With Room Floor

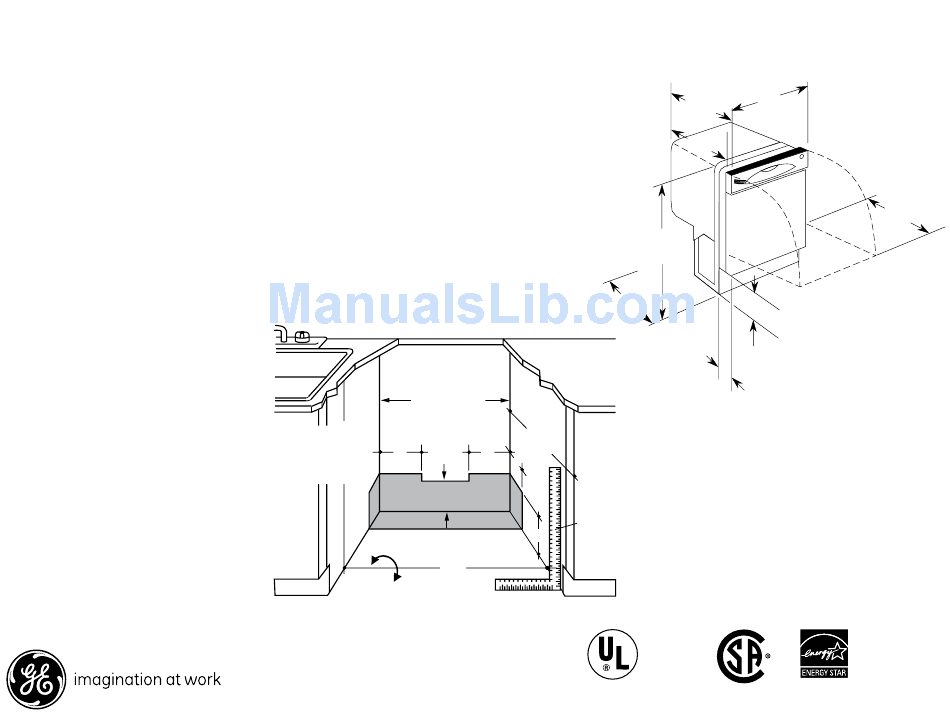

• The rough cabinet opening must be at least 24" deep,
24" wide and approximately 34-1/2" high from floor to
underside of the countertop.
This Wall Area
must be Free
of Pipes or
wires
24"
Min.
5"
5"
4"
4"
Plumbing and Electric Service
Must Enter Inside This Area
6"
24"
Min.
25
MAX.
22
33-3/4" MIN.
adj. to 35"
20-1/2
4 (Adjustable)
4
Cabinets
Square
and
Plumb
Listed by
Underwriters
Laboratories
Specification Created 5/10
24
27-1/2
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
350266
