- Page 1 Visit Our Website SCAN ME PyleUSA.com PLMRA210BT - PLMRA410BT - PLMRA430BT PLMRA830BT - PLMRA630BT Waterproof Bluetooth Amplifier USER GUIDE...
- Page 2 Pyle, founded in the 1960s, has evolved into a renowned manufacturer of high-quality advanced woofers. Our journey started with the iconic Pyle Driver, becoming a household name in original speakers. In the late 20th century, we expanded into replacement speakers, car audio, home audio, marine audio, and professional audio &...
- Page 3 CONTENTS WARNINGS TESTING & CONNECTIONS MAINTENANCE SYSTEM LAYOUT MOUNTING CIRCUITRY PROTECTION FCC CAUTION IC WARNING REGISTER PRODUCT READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE. California Prop 65 Warning WARNING: This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm.
- Page 4 Prevent cables, wires, or power cords from being walked on, bent, stretched, or pinched, especially at the plug or where they connect to the ampli er. • When uncertain about speci cations, consult the Pyle Audio website and refer to FAQs. •...
-
Page 5: Testing & Connections
Service for your ampli er can be obtained from an authorized Pyle Audio service center. To initiate the process, contact Pyle Audio with your proof of purchase (receipt) along with the defective unit. Upon instructions from Pyle Audio, send or deliver the malfunctioning unit to an authorized service center. -
Page 6: Maintenance
Avoid using harsh chemicals, cleaning solvents, or strong detergents. After completing all connections, power on your stereo and listen for the ampli er to activate. If you hear any unusual noises from the speakers, turn o the system and double-check all wiring connections. PLMRA210BT - System Layout www.PyleUSA.com... - Page 7 PLMRA210BT 1. RCA (Low Level Input): The unit is equipped with RCA input jacks. Connect the RCA input with the car stereo or equalizer outputs using RCA type connector cables. 2. Input Gain Control: These are not your ampli er's volume controls.
- Page 8 The Pyle Elite Series Amps o er a range of options and con gurations that di er among the various models in the ampli er line. For detailed information on ampli er connection options and features speci c to your model, refer to the product's speci c model number.
- Page 9 Stereo Input Connection - RCA Type The Elite Series Amps are equipped with plated RCA terminals designed for low- level input connections. To connect to radios and equalizers with line-level output, use RCA-type connector cables. Couple the RCA input on the ampli er with the car stereo or equalizer output using these cables for proper integration.
- Page 10 Speaker Connection - Mono Amp System: Select Elite Series Amps can be bridged from a 2-channel ampli er to a one- channel ampli er. The ideal speaker impedance for optimum operation is 4 ohms. The ampli er will provide stable operation within the range of 2 to 8 ohms loads.
- Page 11 This can be connected to the receiver power antenna lead (Amp turn on), typically blue in color. Always refer to the speci c model information and connection abilities for detailed instructions. Models mentioned: PLMRA210BT, PLMRA410BT, PLMRA430BT, PLMRA630BT, PLMRA830BT. Visit the o cial Pyle website for more information. www.PyleUSA.com...
- Page 12 PLMRA210BT - Wiring www.PyleUSA.com...
- Page 13 PLMRA410BT - Wiring www.PyleUSA.com...
- Page 14 PLMRA410BT - Wiring Note: Elite Series Amps come with built-in short circuit protection. If you accidentally connect any speaker wires to ground, or if positive power (+) and (-) wires short together, the protection circuit will operate automatically and cut o the output. In such a case, you must switch o the entire system immediately,double-check speaker wire connections and isolation, and then switch on the ampli er again.
- Page 15 PLMRA410BT - Wiring Connect the speaker output terminals to the corresponding speakers. The speakers must be high quality and capable of handling high power. Separated return paths and strong wires are required. 1. Connect the +12V pole of the power supply directly to the battery (+) position terminal (In-line fuse 1 foot from battery).
- Page 16 PLMRA430BT - Wiring www.PyleUSA.com...
- Page 17 PLMRA430BT - Wiring www.PyleUSA.com...
- Page 18 PLMRA430BT - Wiring www.PyleUSA.com...

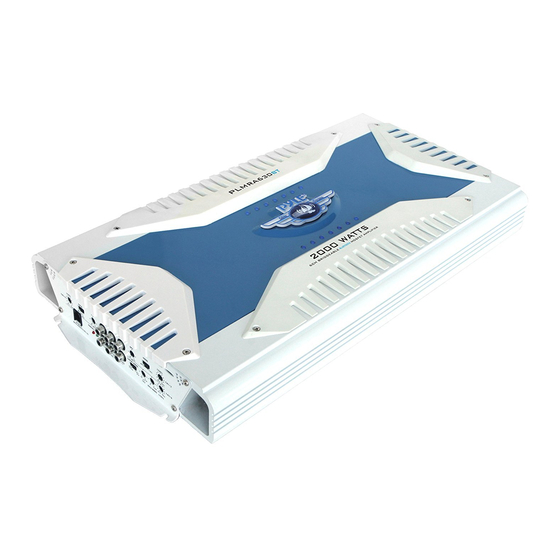

- Page 19 PLMRA630BT - Wiring www.PyleUSA.com...
- Page 20 PLMRA630BT - Wiring www.PyleUSA.com...
- Page 21 PLMRA830BT - Wiring www.PyleUSA.com...
- Page 22 PLMRA830BT - Wiring www.PyleUSA.com...
- Page 23 Elite Series Bluetooth Connection When searching for the amp via your smartphone or other Bluetooth-enabled device, the Bluetooth amp network name will appear as ‘Pyle Amp' in your device list. The amp will not require a password to connect. Once successfully paired with your compatible Bluetooth-enabled device, you will be able to control music streaming ability into the Pyle amp.
- Page 24 If you ever need to replace the fuse or suspect a fault in your system, please contact Pyle technical support or consult a trained professional. When replacing fuses, ensure to use ONLY a fuse of the exact same type and rating to avoid damage or re.
- Page 25 The built-in protection circuitry in the ampli ers will disable the ampli er if it detects an input overload, speaker short circuit, or extreme temperature conditions. When the protection circuit is activated, the Protection LED will illuminate. If this occurs, carefully inspect the system to identify the source of the problem.
-
Page 26: Fcc Caution
FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 27: Register Product
IC warning - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - Page 28 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
