STREET FIGHTER™: ALPHA 2

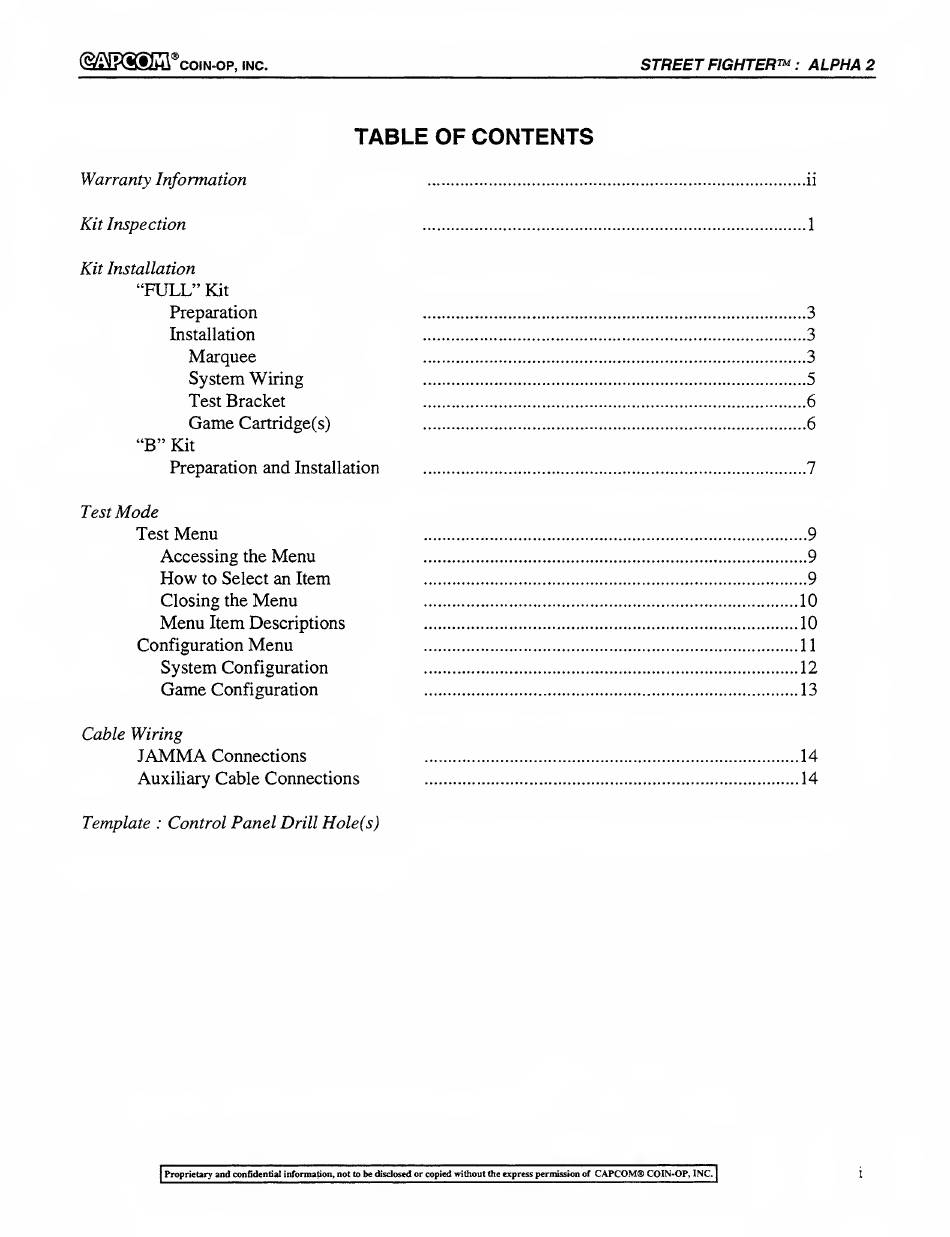

TABLE OF CONTENTS
Warranty Information .ii
Kit Inspection 1
Kit Installation
"FULL" Kit
Preparation 3
Installation 3
Marquee 3
System Wiring 5
Test Bracket 6
Game Cartridge(s) 6
"B" Kit
Preparation and Installation .7
Test Mode
Test Menu 9
Accessing the Menu 9
How to Select an Item 9
Closing the Menu 10
Menu Item Descriptions 10
Configuration Menu 11
System Configuration 12
Game Configuration 13
Cable Wiring
J AMMA Connections 14
Auxiliary Cable Connections 14
Template : Control Panel Drill Hole(s)
