COIN-OP, INC.
STREET FIGHTER
™ :
ALPHA 2

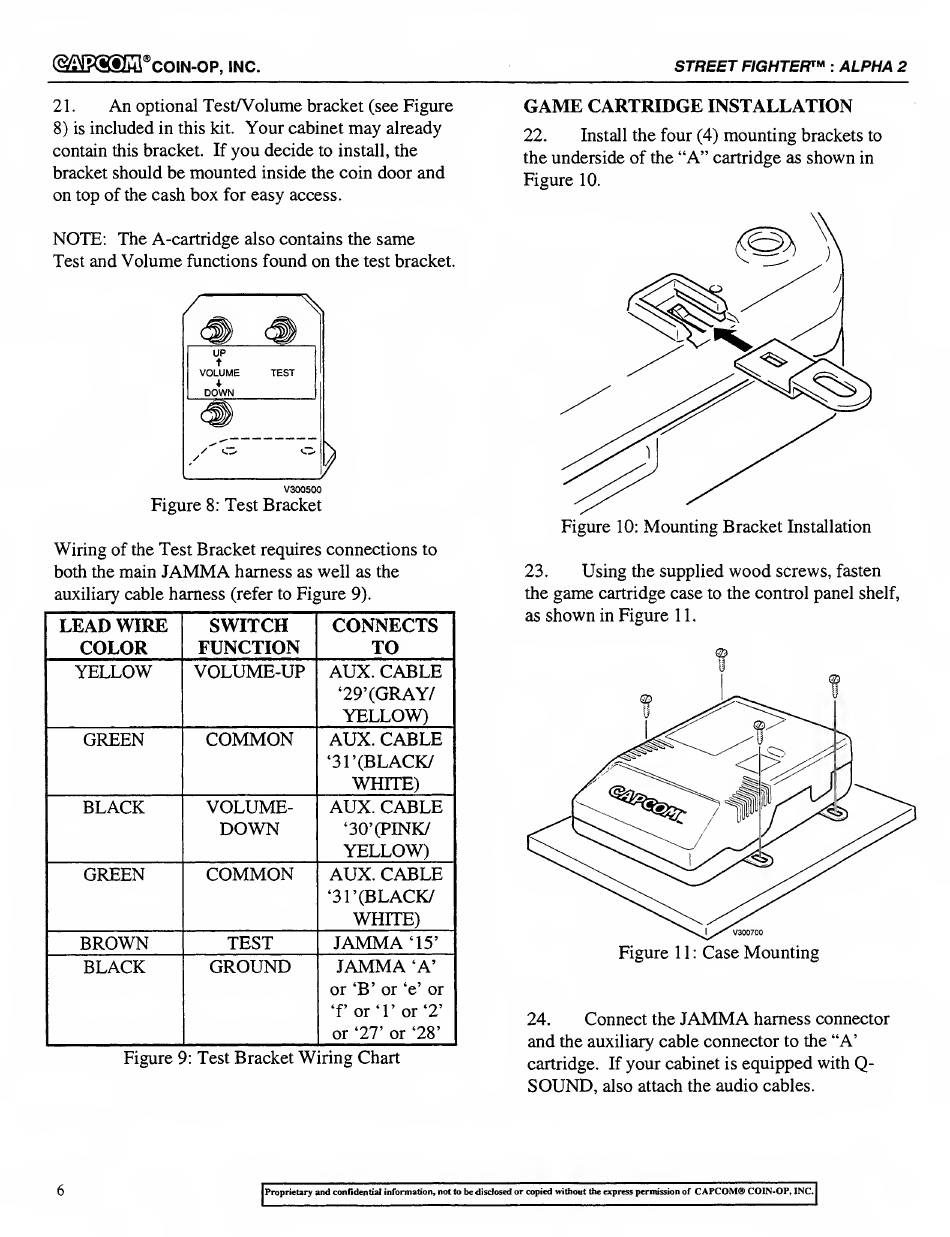

21. An optional Test/Volume bracket (see Figure
8) is included in this kit. Your cabinet may already
contain this bracket. If you decide to install, the
bracket should be mounted inside the coin door and
on top of the cash box for easy access.
NOTE: The A-cartridge also contains the same
Test and Volume functions found on the test bracket.
Wiring of the Test Bracket requires connections to
both the main JAMMA harness as well as the
auxiliary cable harness (refer to Figure 9).
LEAD WIRE
COLOR
SWITCH
FUNCTION
CONNECTS
TO
YELLOW VOLUME-UP AUX. CABLE
'29'(GRAY/
YELLOW)
GREEN COMMON AUX. CABLE
'31' (BLACK/
WHITE)
BLACK VOLUME-
DOWN
AUX. CABLE
'30'(PINK/
YELLOW)
GREEN
COMMON AUX. CABLE
'31'(BLACK/
WHITE)
BROWN
TEST JAMMA '15'
BLACK GROUND
JAMMA 'A'
or 'B' or 'e' or
'f or'1' or'2'
or '27' or '28'
Figure 9: Test Bracket Wiring Chart
GAME CARTRIDGE INSTALLATION
22. Install the four (4) mounting brackets to
the underside of the "A" cartridge as shown in
Figure 10.
Figure 10: Mounting Bracket Installation
23. Using the supplied wood screws, fasten
the game cartridge case to the control panel shelf,
as shown in Figure 11.
f
24. Connect the JAMMA harness connector
and the auxiliary cable connector to the "A'
cartridge. If your cabinet is equipped with Q-
SOUND, also attach the audio cables.
6
