STREET FIGHTER
™ :
ALPHA 2

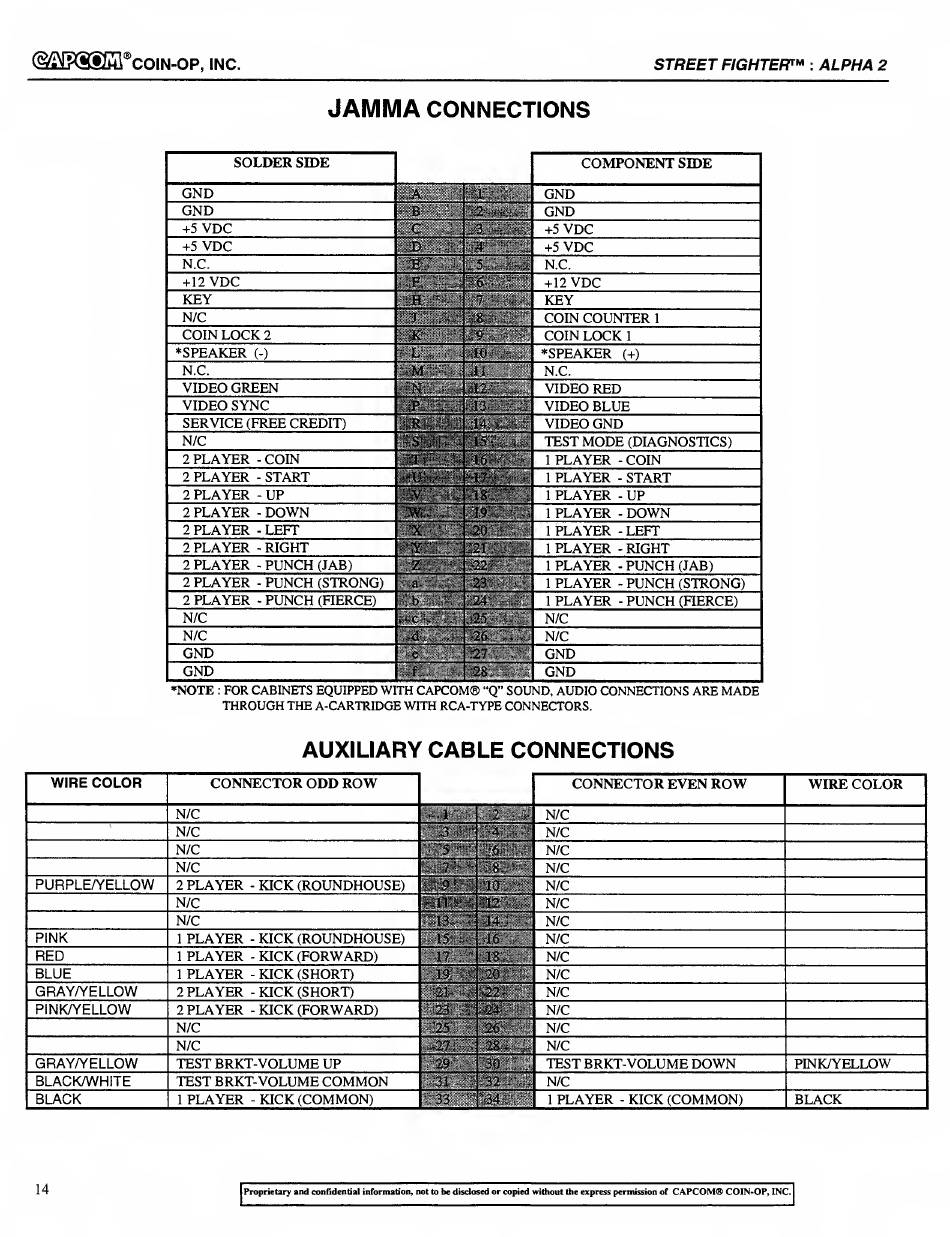

JAMMA CONNECTIONS
SOLDER SIDE
GND
GND
+5 VDC
+5 VDC
N.C.
+12 VDC
KEY
N/C
COIN LOCK 2
♦SPEAKER (-)
N.C.
VIDEO GREEN
VIDEO SYNC
SERVICE (FREE CREDIT)
N/C
2 PLAYER - COIN
2 PLAYER - START
2 PLAYER - UP
2 PLAYER - DOWN
2 PLAYER - LEFT
2 PLAYER - RIGHT
2 PLAYER - PUNCH (JAB)
2 PLAYER - PUNCH (STRONG)
2 PLAYER - PUNCH (FIERCE)
N/C
N/C
GND
GND
♦NOTE : FOR CABINETS EQUIPPED WITH CAPCOM® "Q"
THROUGH THE A-CARTRIDGE WITH RCA-TYPE
IE
COMPONENT SIDE
GND
GND
+5 VDC
+5 VDC
N.C.
+12 VDC
KEY
COIN COUNTER 1
COIN LOCK 1
♦SPEAKER (+)
N.C.
VIDEO RED
VIDEO BLUE
VIDEO GND
TEST MODE (DIAGNOSTICS)
1 PLAYER - COIN
1 PLAYER - START
1 PLAYER - UP
1 PLAYER - DOWN
1 PLAYER - LEFT
1 PLAYER - RIGHT
1 PLAYER - PUNCH (JAB)
1 PLAYER - PUNCH (STRONG)
1 PLAYER - PUNCH (FIERCE)
N/C
N/C
GND
GND
SOUND, AUDIO CONNECTIONS ARE MADE
CONNECTORS.
AUXILIARY CABLE CONNECTIONS
WIRE COLOR
PINK
RED
BLUE
GRAY/YELLOW
PINK/YELLOW
GRAY/YELLOW
BLACK/WHITE
BLACK
CONNECTOR ODD ROW
CONNECTOR EVEN ROW
N/C
■ mia z.m
N/C
N/C 3 r*4 . N/C
N/C 5 6 N/C
N/C
■* *
N/C
2 PLAYER - KICK (ROUNDHOUSE) 9 10
N/C
N/C I 11 12 N/C
N/C 13 " 14 N/C
1 PLAYER - KICK (ROUNDHOUSE) 15 J6
N/C
1 PLAYER - KICK (FORWARD) 17-; ?
N/C
1 PLAYER - KICK (SHORT) i 19 20 N/C
2 PLAYER - KICK (SHORT)
21-
■ -22-
N/C
2 PLAYER - KICK (FORWARD) 23 l &A
N/C
N/C
■25'. v •26L -.
N/C
N/C 28 i N/C
TEST BRKT-VOLUME UP
29 M
TEST BRKT-VOLUME DOWN
TEST BRKT-VOLUME COMMON 31 " 32 't - N/C
1 PLAYER - KICK (COMMON) 33 ' 'r34. 1 PLAYER - KICK (COMMON)
WIRE COLOR
BLACK
