Summary of Contents for MYERS Illuminator Hypernova Series

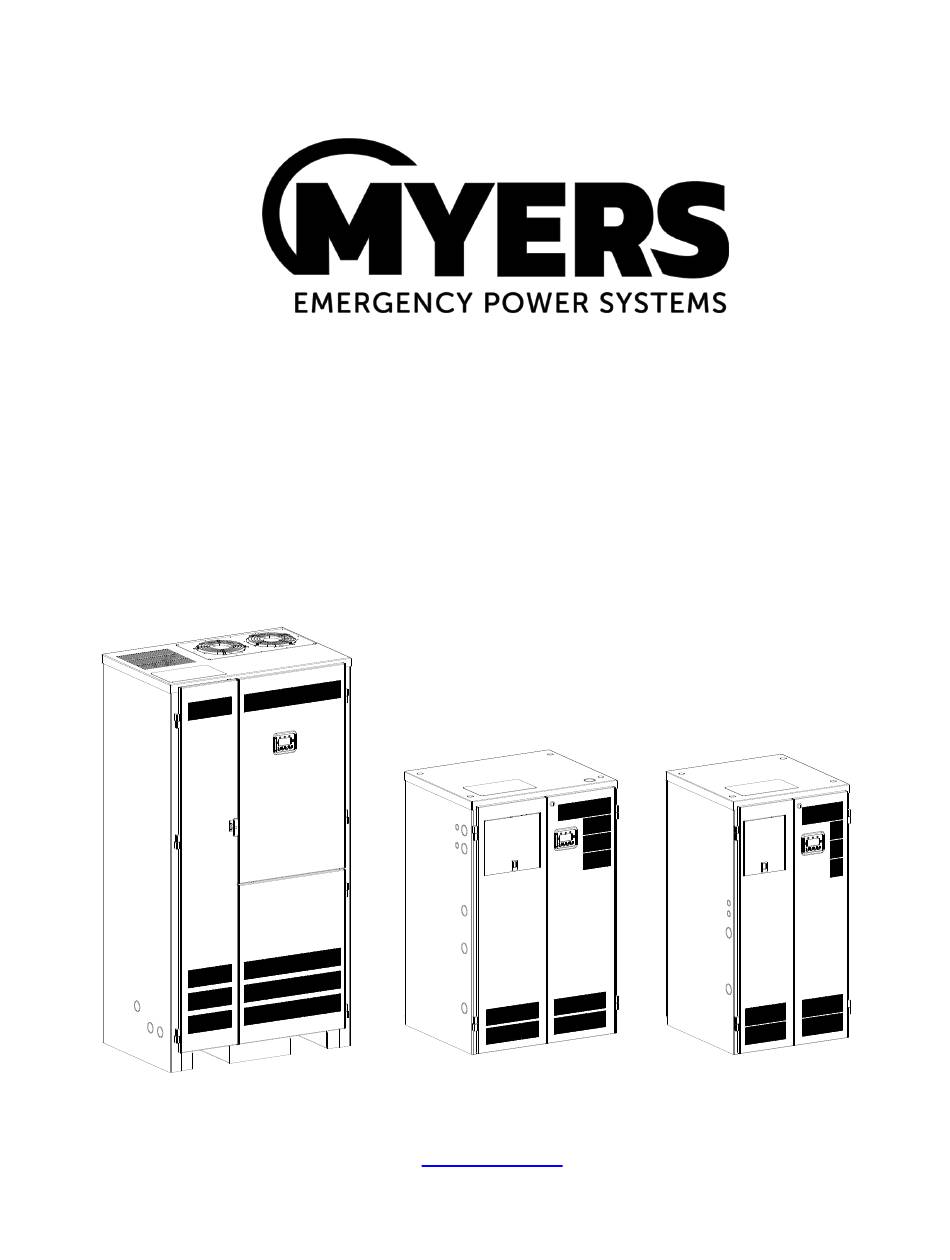

- Page 1 Illuminator System ™ Series Hypernova 5 kVA/kW – 60 kVA/kW Users Manual 44 South Commerce Way, Bethlehem, PA 18017 1-800-526-5088 • (610) 868-3500 • Fax: (610) 868-8686 Service: (610) 868-5400 www.myerseps.com 115894B – Hypernova System Users Manual...
- Page 2 C A U T I O N READ ENTIRE MANUAL AND REVIEW ALL DOCUMENTATION BEFORE ATTEMPTING SYSTEM INSTALLATION FOR SERVICE OR INSTALLATION INFORMATION: TELEPHONE: (610) 868-5400 (24 HR. HOTLINE) FAX: (610) 954-8227 115894B – Hypernova System Users Manual...
- Page 3 This unit contains LETHAL VOLTAGES. All repairs and service should be performed by AUTHORIZED SERVICE PERSONNEL ONLY! There are NO USER SERVICEABLE PARTS inside this unit. IMPORTANT SAFEGUARDS When using electrical equipment, you should always follow basic safety precautions, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
- Page 4 User’s Guide An on-site permanent log of the inspection, testing, and maintenance of the emergency electrical power supply system shall be maintained in accordance with the Manufacturer's operating manual. The log shall include: The date on which the inspection, testing, and maintenance exercise was carried out The name of the person(s) who performed the inspection, testing, and maintenance.
-
Page 5: Table Of Contents
Table of Contents C H A P T E R 1 INTRODUCTION…………………………………………………………………..6 C H A P T E R 2 ENVIRONMENT…………………………………………………………………...8 C H A P T E R 3 STARTUP AND SHUTDOWN PROCEDURE…………………………………..9 C H A P T E R 4 OPERATION………………………………………………………………………12 C H A P T E R 5 FRONT PANEL DISPLAY………………………………………………………..13 C H A P T E R 6 SPECIFICATIONS………………………………………………………………...19 C H A P T E R 7 MAINTENANCE AND SERVICE………………………………………………..20... -
Page 6: Chapter 1 Introduction

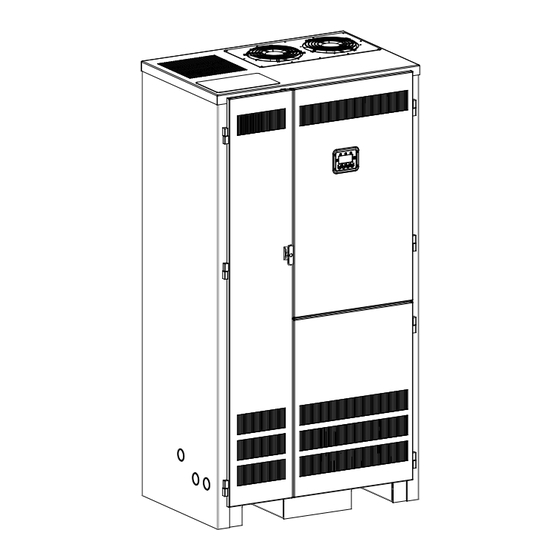

C H A P T E R 1 NTRODUCTION Keep this manual and the System Installation Guide in the folder mounted inside the unit. This unit is a microprocessor controlled PWM (Pulse Width Modulated) pure sine wave based DC to AC power inverter utilizing IGBT technology. It integrates a fully automatic battery charger, a solid-state transfer system, control circuitry, self testing and recording digital meter display, and maintenance free sealed lead calcium type batteries. - Page 7 Service and Support We are committed to outstanding customer service. A service technician is available 24 hours a day, 365 days a year. Service is also available 24 hours a day to give you access to technical notes and product information. You can also visit our web site. NOTE: Please have your unit’s Serial and Model numbers available when you call;...
-
Page 8: Chapter 2 Environment
C H A P T E R 2 NVIRONMENT Make sure the environment is a clean, cool, dry place with normal ventilation. Storage Temperature Store the batteries (in the system or battery cabinet) at -18 to 40°C (0 to 104°F). Batteries have a longer shelf life if they are stored below 25°C (77°F). -
Page 9: Chapter 3 Startup And Shutdown Procedure
C H A P T E R 3 TARTUP AND HUTDOWN ROCEDURE Refer to the Installation Manual to secure the unit and install AC and DC wiring. STARTUP PROCEDURE For the initial startup of the system, follow the instructions in the Startup and Warranty Validation Form. - Page 10 CAUTION: HAZARDOUS VOLTAGES STILL EXIST AT THE BATTERY TERMINAL BLOCK AND WITHIN THE SYSTEM. AUTHORIZED SERVICE TECHNICIANS MUST DISCHARGE DC CAPACITORS AND TURN OFF UTILITY POWER BEFORE SERVICING EQUIPMENT. CAUTION: DO NOT LEAVE THE SYSTEM SHUTDOWN FOR A PROLONGED LENGTH OF TIME. LEAD BASED BATTERIES WILL EXPERIENCE PERMANENT DAMAGE FROM LACK OF CHARGING.
- Page 11 System On Line From Bypass Mode 1. Verify that the Installation Switch is in the (OFF) position. 2. Install all Battery Fuses in all Battery Cabinets. 3. Press and hold DC Pre-charge switch located on the inverter chassis for approximately five seconds.
-
Page 12: Chapter 4 Operation
C H A P T E R 4 PERATION The following is a description of the system status located on the front panel of the OLED Display. These statuses will automatically scroll on the display, along with time and date information, while the emergency lighting inverter is powered. -
Page 13: Chapter 5 Front Panel Display
CH A P T E R 5 RONT ANEL ISPLAY The Front Panel Display assembly consists of an OLED display and a 4-button keypad. The 4 buttons can navigate through all the menus by using the left and right arrow keys, the ENTER and the ESCAPE. - Page 14 LED Function The inverter Front Panel Display (FPD) features three LEDs: A green LED (on the left), an amber LED (in the middle), and a red LED (on the right). One LED (and only one LED) will always be on. The following table describes the meaning behind each of the LEDs: Table 5.1 Keypad Functions LED Color...
- Page 15 System Status To get to the System Status from the default screen, press the ENTER key, scroll to the SYSTEM STATUS heading using the left or the right arrow key, then press the ENTER key again. If there are more than 3 statuses present, use left or the right arrow key to scroll through all.
- Page 16 Input Voltage – Utility Low and High value setpoints in Volts AC. Max Runtime – Elapsed time the inverter may run in emergency mode, setpoint in minutes. Load Reduction – This will automatically generate an alarm when the system output current is 10 percent higher or lower than the setpoint number, set in Amps AC.
- Page 17 Once the password is entered, use the left or right arrow key to view the specific Maintenance setting desired, and the press the ENTER key for more information. The user has access to change the following settings: Self Test, Monthly Test, Yearly Test, Factory Setup, and Clear Logs.
- Page 18 Keypad Setup Mode The Front Panel features a Setup Mode where you can do the following: See the firmware version of the Front Panel Display. • Disable or Re-enable the buzzer on the Front Panel display. WARNING: disabling the • buzzer will disable audible notification when the inverter transfers to battery or when there is an inverter alarm.
-
Page 19: Chapter 6 Specifications
C H A P T E R 6 PECIFICATIONS Illuminator Series Hypernova General Specifications Input Voltage 120/208 or 277/480 Vac 3-phase 4-wire +10% -15%. Input Frequency 60Hz, +/- 3%, 50Hz Available upon request Synchronizing Slew Rate 1Hz per second nominal Protection Input Circuit Breaker Voltage Harmonic Distortion <... -
Page 20: Chapter 7 Maintenance And Service
C H A P T E R 7 AINTENANCE ERVICE The Self-testing feature of the inverter ensures that the system is tested at least once per month for 5 minutes and once per year for 90 minutes. If there are any problems with the self-tests, the fault log shall indicate which faults occurred. - Page 21 TROUBLE SHOOTING CHART 115894B – Hypernova System Users Manual...
- Page 22 RETURN MATERIAL AUTHORIZATION (RMA) POLICY No return material is accepted without written "Return Material Authorization"(RMA). An RMA number is obtainable by contacting the Field Service Department. Every effort will be made to correct problems over the phone before an RMA is granted or a service trip made.
- Page 23 LIMITED WARRANTY The parts and on-site labor for the electronics portion of this equipment are warranted against defects in workmanship and material for a period of one year from time of shipment, but in no case will this warranty be valid if installation of equipment is not accomplished within 180 days from date of shipment.
