LVU-2/5
INSTRUCTION MANUAL

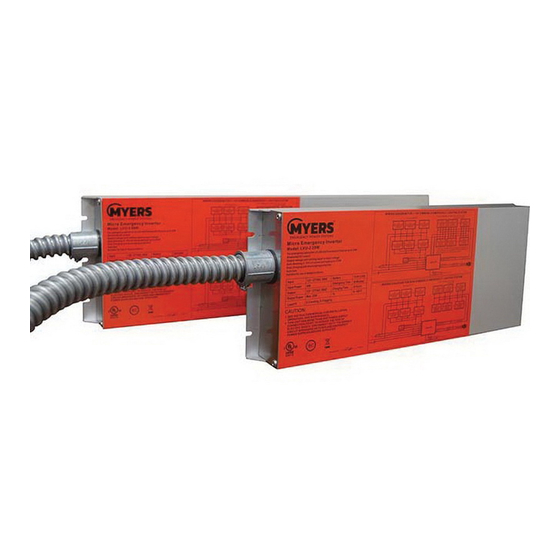

UNIVERSAL MICRO INVERTER
PURE SINUSOIDAL AC OUTPUT
OUTPUT VOLTAGE AUTO SETTING EQUAL TO INPUT VOLTAGE
AUTO DIMMING (1-10V) OF CONNECTED LOAD
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent electric shock, switch off the mains power until installation is
complete and AC Input power is supplied to this product.
2. This product requires an unswitched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National or Canadian Electrical
code and any local regulations.
4. To reduce the risk of electrical shock, disconnect both normal power, emergency power,
unit and connector of this product before servicing.
5. For emergency operation of LED, incandescent, fluorescent, and screw-base
lamps.
6. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta). To ensure
the emergency operating time over 90 minutes, the output emergency power of LVU-2/5
should be maximum of 25W for the LVU-2 and 50W for the LVU-5.
7. Use with grounded, UL Listed, damp location rated fixtures. Do not use outdoors. Do
not mount it near gas, heaters, air outlets or other hazardous locations.
8. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that
is not field replaceable. Contact the manufacturer for information or service.
9. The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition and void warranty.
10. Do not use this product for other than intended use.
11. Installation and service should be performed by qualified service personnel.
12. This product should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
THIS PRODUCT CONTAINS A RECHARGEABLE NICKEL-CADMIUM BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Ni-cd
WWW.MYERSEPS.COM
SAVE THIS INSTRUCTIONS
25B9
Advertisement
Related Manuals for MYERS LVU-2
Summary of Contents for MYERS LVU-2
- Page 1 6. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta). To ensure the emergency operating time over 90 minutes, the output emergency power of LVU-2/5 should be maximum of 25W for the LVU-2 and 50W for the LVU-5.
- Page 2 120V/60Hz 120V/60Hz 277V/50Hz 277V/60Hz 2. INSTALLING THE LVU-2/5 The LVU-2/5 can be mounted inside or outside (nearby or on top of) the luminaire. INSIDE THE LUMINAIRE OUTSIDE THE LUMINAIRE LED test switch One 7/8" (22mm) hole with conduit LED test switch connector for 184600.
- Page 3 CAUTION: DO NOT MATE UNIT CONNECTOR UNTIL INSTALLATION IS COMPLETE AND AC POWER IS SUPPLIED. 1. The LVU-2/5 requires an unswitched AC power supply of 120-277 volt, 50/60Hz. ①②③ 2. Refer the wiring diagrams below for wiring in turns of 3.
- Page 4 1. Instant Auto Test When the system is connected and powered on, the LVU-2/5 model will Auto Test if the load and battery pack are connected properly and if the battery is being charged normally. If there is any abnormal situation, the LTS will flicker.
