—26-—

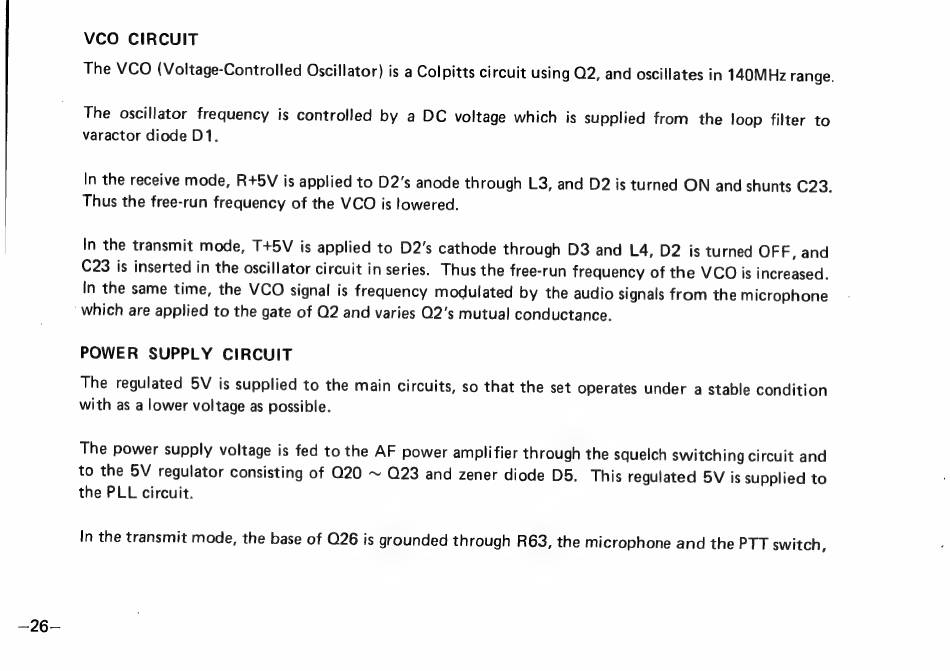

VCO
CIRCUIT
The VCO (Voltage-Controlled Oscillator) is a Colpitts circuit using O2, and oscillates in 140MHz
range.
POWER
SUPPLY
CIRCUIT
