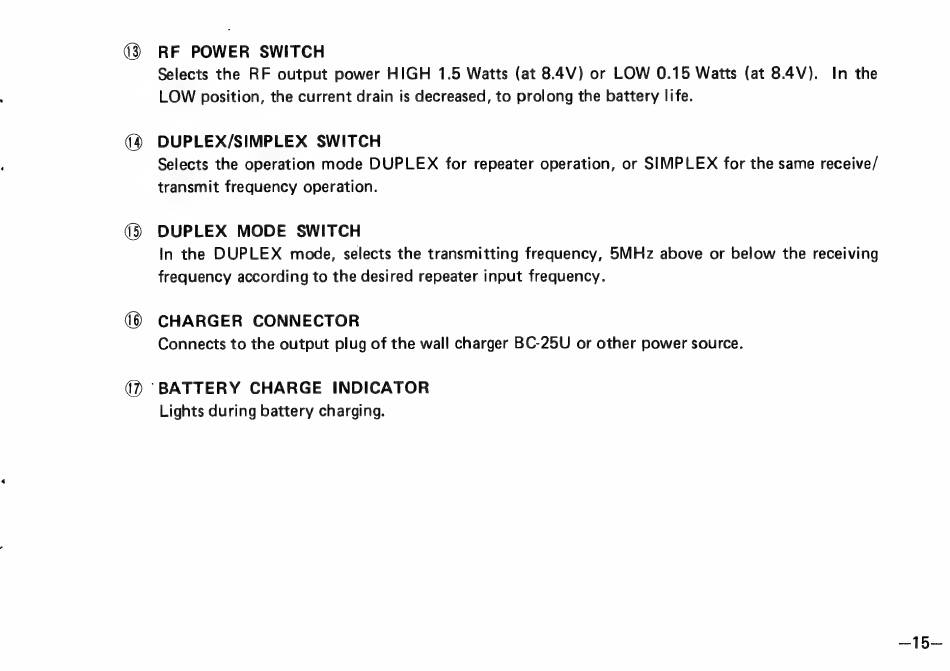

ВЕ POWER SWITCH
Selects the RF output power HIGH 1.5 Watts (at 8.4М) or LOW 0.15 Watts (at 8.4V). In the
LOW position, the current drain is decreased, to prolong the battery life.
DUPLEX/SIMPLEX SWITCH
Selects the operation mode DUPLEX for repeater operation, or SIMPLEX for the same receive/
transmit frequency operation.
DUPLEX MODE SWITCH
In the DUPLEX mode, selects the transmitting frequency, 5MHz above or below the receiving
frequency according to the desired repeater input frequency.
CHARGER CONNECTOR
Connects to the output plug of the wall charger BC-25U or other power source.
"BATTERY CHARGE INDICATOR
Lights during battery charging.
—15-—
