BEITONG ASURA 2PRO User Manual

Wired game controller
Hide thumbs Also See for ASURA 2PRO:

Advertisement

Quick Links

Download this manual
USER MANUAL

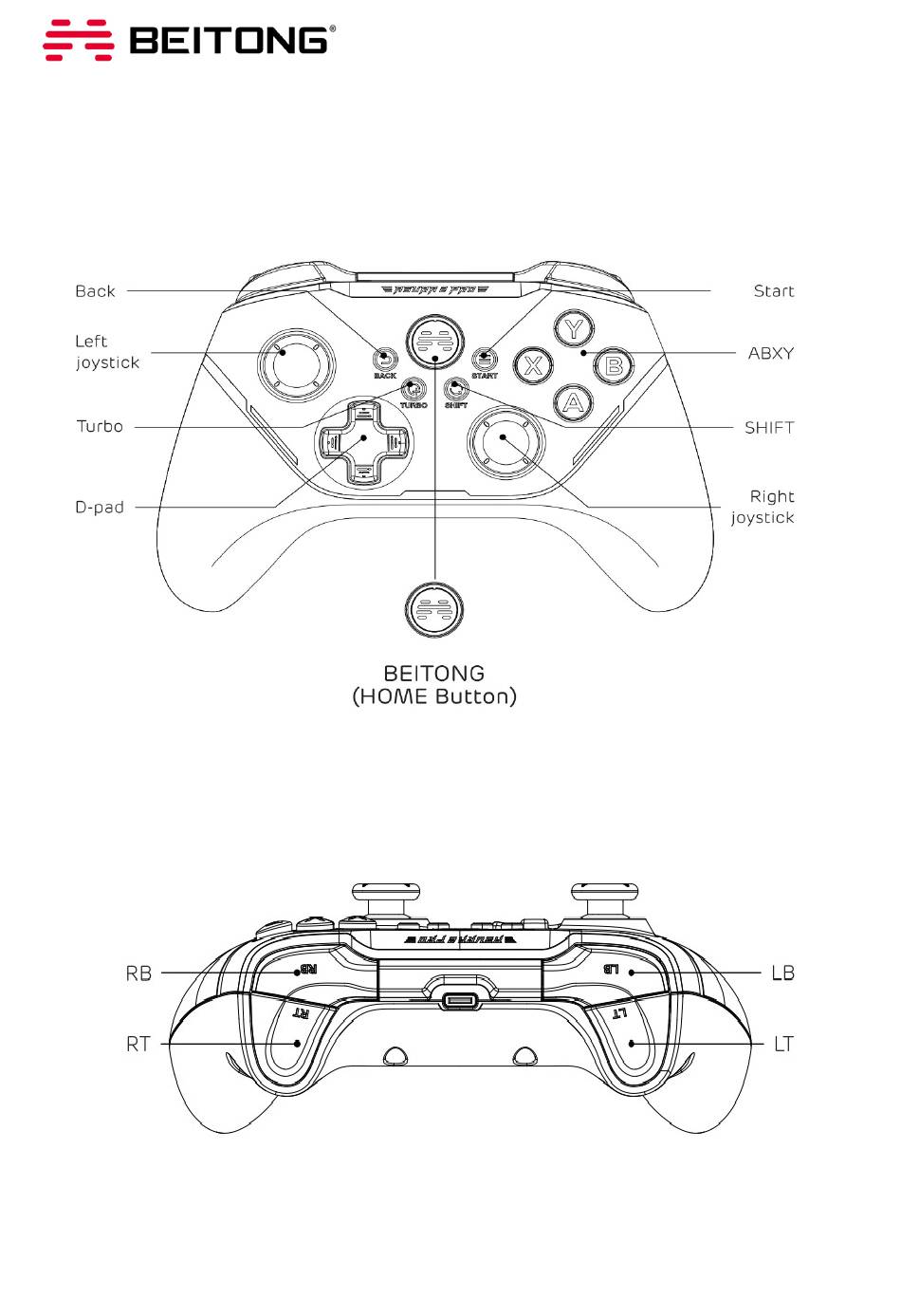

Button Introduction
(LS)
(RS)
Front View
Vertical View
1
ASURA 2PRO WIRED GAME CONTROLLER

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASURA 2PRO and is the answer not in the manual?

Questions and answers

Related Manuals for BEITONG ASURA 2PRO

Summary of Contents for BEITONG ASURA 2PRO

  • Page 1 USER MANUAL Button Introduction (LS) (RS) Front View Vertical View ASURA 2PRO WIRED GAME CONTROLLER...

  • Page 2: Back View

    USER MANUAL M1 Configurable M2 Configurable Button Button Reset Back View Bottom View ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 3 Light Introduction RGB Breathing Light *The Breathing Light refers to the RGB aperture on the outer edge of the HOME Button(BEITONG). When the Controller is connected to the computer, the state of Breathing Light can be customized through the BEITONG ASURA 2 Pro Assistant (BEITONG Game Hall).
  • Page 4 Controller vibrates and the breathing light is on. 2. Connect to TV Insert USB cable of the Controller into the USB interface of the TV, the connection is completed when the Controller vibrates and the breathing light is on. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 5 USER MANUAL Software Configuration Introduction "Controller Assistant" Software Configuration Download and install the software "ASURA 2 Pro Assistant (BEITONG Game Hall)" 1. Download the software "ASURA 2 Pro Assistant" from BEITONG official website: https://www.betop-cn.com/en/#/down , and install it on the computer.
  • Page 6 *If reminded to update the firmware, be sure to click "Confirm". *If the firmware upgrade fails due to factors such as signal disconnection, disconnection or poor contact, please unplug the USB cable and then re-plug again to resume the firmware upgrade. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 7 1. After entering the "ASURA 2 Pro Assistant", click any button value to enter the button value modification interface. 2. In this interface, you can modify the button value according to your needs, click the "Restore Default" button, you can cancel all button modification operations and return to the default state. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 8 1. Click the "Default (Setting)" button in the main interface to enter the advanced settings interface. 2. Drag the "Vibration" slider in the "Basic" tab interface to adjust the vibration intensity. The vibration motors on the left and right sides each have five gears that can be adjusted. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 9 2. Manually adjust the number in the "Turbo" Button function in the "Button" tab to change the Turbo frequency. The default frequency of the Turbo button is 10 times/second, and the maximum frequency is 30 times/second. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 10 1. Click the "Default (Setting)" button in the main interface to enter the advanced settings interface. 2. In the "Joystick" tab, the sensitivity of the left and right joysticks of the Controller can be individually set. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 11 1. Click the "Default (Setting)" button in the main interface to enter the advanced settings interface. 2. The "Light" adjustment settings of the "Basic" tab can modify the color, brightness, frequency and work type of the Controller's Breathing Light as needed. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 12 USER MANUAL Button Macro Function *BEITONG ASURA 2PRO Series supports custom macro settings for LB/RB, M1/M2 back buttons. 1. Click the "Default (Setting)" button in the main interface to enter the advanced settings interface. 2. Click the "Default" button of any button of LB/RB, M1/M2 in the "Button" tab enter into the next interface.
  • Page 13 3. On the next interface, click the "Default" button in the upper right corner, then click to select "Set Macro" in the drop-down menu. 4. Press the desired button combination in the Controller to form a macro command, and then click "Save" to complete the button macro setting. ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 14 1. Click the "Default (Setting)" button in the main interface to enter the advanced settings interface. 2. In the "Joystick" tab, the sensitivity of the left and right joysticks of the Controller can be individually set. ASURA 2PRO WIRED GAME CONTROLLER...

  • Page 15: Joystick Calibration

    Step 1: Press the START button + BACK button in the power-on state, and then press the Right Joystick(RS) to enter the calibration mode. *After entering the joystick calibration state successfully, the Breathing Light turns pink. START + BACK + Press RS ASURA 2PRO WIRED GAME CONTROLLER...
  • Page 16 Step 3: After completing the calibration operation, press the START Button + BACK Button at the same time, and then press the Right Joystick(RS) to exit the calibration. * After exiting the calibration mode, the Breathing Light returns to the multi-color flashing state. START + BACK + Press RS ASURA 2PRO WIRED GAME CONTROLLER...

  • Page 17: Product Specification

    Adaptation PC Window 7 and later, Android TV platform Package BEITONG Asura2 Pro Wired Controller x 1, User Manual x 1 Include ABOUT BEITONG Leading brand of smart gaming peripherals in China Been focusing on game controller and software development more than 25 years...
