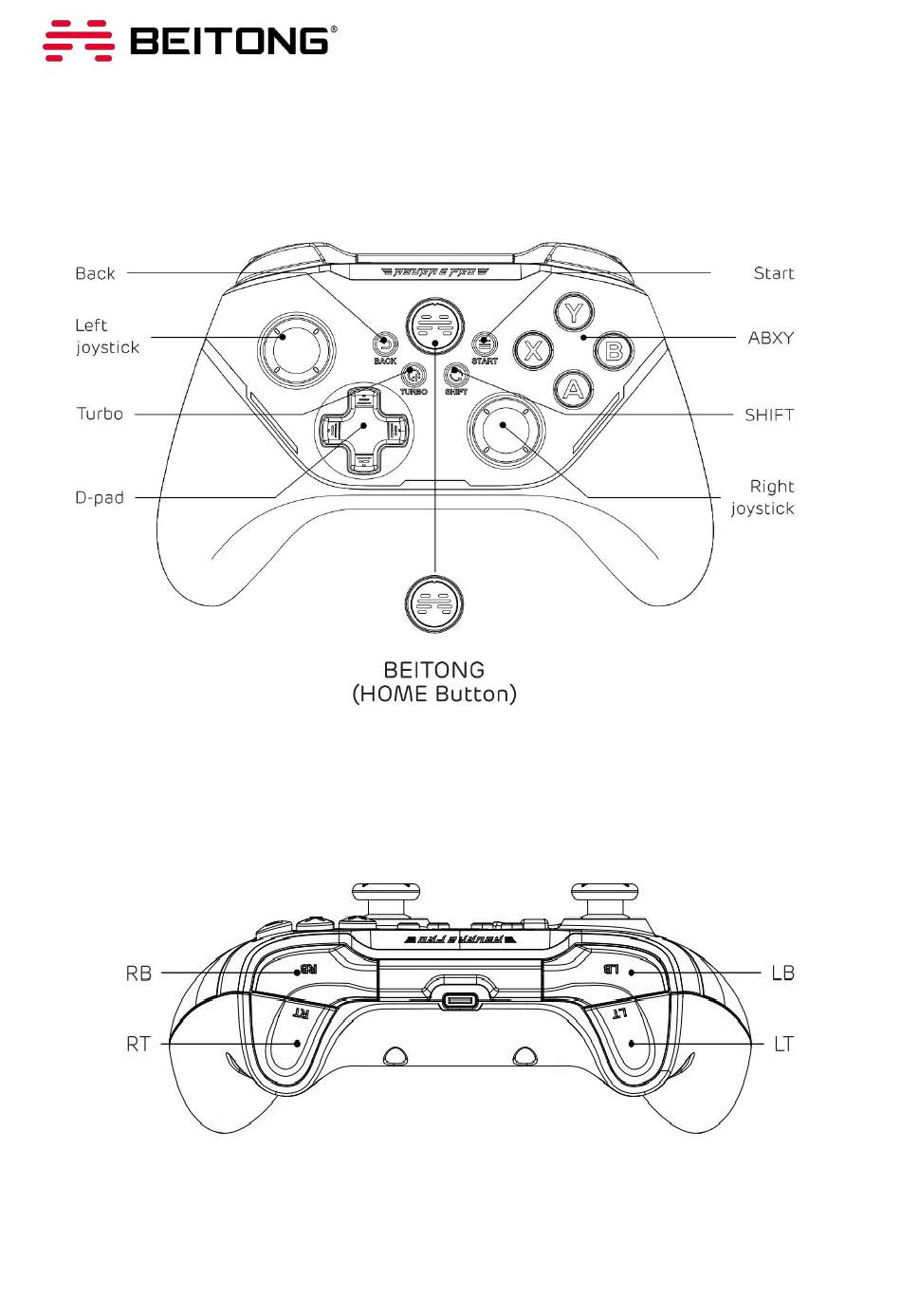

- Page 1 USER MANUAL Button Introduction (LS) (RS) Front View Vertical View ASURA 2PRO WIRELESS GAME CONTROLLER...
-
Page 2: Bottom View
USER MANUAL TYPE-C Port M2 Configurable M1 Configurable Button Button Reset Back View Activator storage slot Bottom View ASURA 2PRO WIRELESS GAME CONTROLLER... -
Page 3: Power On/Off Procedure
Power ON/OFF Procedure Power ON Using the receiver to connect the device, short press the BEITONG LOGO(HOME Button) to turn the Controller on. Power OFF 1. Press and hold the BACK button + B button for about 3 seconds, the Controller will be turned off. - Page 4 Light Introduction RGB Breathing Light *The Breathing Light refers to the RGB aperture on the outer edge of the HOME Button(BEITONG). Under normal connection, the Breathing Light shows white. The state of Breathing Light can be customized through the BEITONG ASURA 2 Pro Assistant (BEITONG Game Hall).
- Page 5 1. Connect to Computer Wireless Connection Insert the wireless receiver into the USB interface of the computer, and press the BEITONG Logo (HOME Button) to turn Controller on. The connection is completed when the Controller vibrates and the breathing light is on.
- Page 6 2. Connect to TV Wireless Connection Insert the wireless receiver into the USB interface of the TV, and press the BEITONG Logo (HOME Button) to turn Controller on. The connection is completed when the Controller vibrates and the breathing light is on.
- Page 7 DOWNLOAD enter into the download page.) 2. Use USB cable to connect the Controller and computer together *In order to use the BEITONG Gamepad Assistant normally, the Controller must be connected to the computer with USB cable.
- Page 8 USER MANUAL 3. Run the software "BEITONG Gamepad Assistant" to set up the Controller function. *If reminded to update the firmware, be sure to click "Confirm". *If the firmware upgrade fails due to factors such as signal disconnection, disconnection or poor contact, please unplug the USB cable and then re-plug again to resume the firmware upgrade.
- Page 9 USER MANUAL Ⅱ. Customizable Buttons 1. After entering the "BEITONG Gamepad Assistant", click any button value to enter the button value modification interface. 2. In this interface, you can modify the button value according to your needs, click the "Restore Default" button, you can cancel all button modification operations and return to the default state.
- Page 10 1. Click the "Settings" button in the main interface to enter the advanced settings interface. 2. Drag the "Vibration" slider in the "Basic" tab interface to adjust the vibration intensity. The vibration motors on the left and right sides each have five gears that can be adjusted. ASURA 2PRO WIRELESS GAME CONTROLLER...
- Page 11 2. Manually adjust the number in the "Turbo" Button function in the "Button" tab to change the Turbo frequency. The default frequency of the Turbo button is 10 times/second, and the maximum frequency is 30 times/second. ASURA 2PRO WIRELESS GAME CONTROLLER...
- Page 12 1. Click the "Settings" button in the main interface to enter the advanced settings interface. 2. In the "Joystick" tab, the sensitivity of the left and right joysticks of the Controller can be individually set. ASURA 2PRO WIRELESS GAME CONTROLLER...
- Page 13 1. Click the "Settings" button in the main interface to enter the advanced settings interface. 2. The "Light" adjustment settings of the "Basic" tab can modify the color, brightness, frequency and work type of the Controller's Breathing Light as needed. ASURA 2PRO WIRELESS GAME CONTROLLER...
- Page 14 USER MANUAL Ⅶ. Button Macro Function *BEITONG ASURA 2PRO Series supports custom macro settings for LB/RB, M1/M2 back buttons. 1. Click the "Settings" button in the main interface to enter the advanced settings interface. 2. Click the "Default" button of any button of LB/RB, M1/M2 in the "Button" tab enter into the next interface.
- Page 15 3. On the next interface, click the "Default" button in the upper right corner, then click to select "Set Macro" in the drop-down menu. 4. Press the desired button combination in the Controller to form a macro command, and then click "Save" to complete the button macro setting. ASURA 2PRO WIRELESS GAME CONTROLLER...
- Page 16 Ⅷ. Custom Sleep Time of the Controller and Calibration Function 1. Click the "Settings" button in the main interface to enter the advanced settings interface. 2. In the "Function" tab, the sleep time can be adjusted, also can calibrate the joystick and trigger. ASURA 2PRO WIRELESS GAME CONTROLLER...
-
Page 17: Joystick Calibration
Step 1: Press the START button + BACK button in the power-on state, and then press the Right Joystick(RS) to enter the calibration mode. *After entering the joystick calibration state successfully, the Breathing Light turns pink. START + BACK + Press RS ASURA 2PRO WIRELESS GAME CONTROLLER... - Page 18 * After exiting the calibration mode, the Breathing Light returns to the multi-color flashing state. START + BACK + Press RS Clear pairing mode: Press RB Button + BACK Button + RS Button + HOME Button in the power off state, pairing information can be actively cleared. ASURA 2PRO WIRELESS GAME CONTROLLER...
-
Page 19: Product Specification
Size 160x110x50MM Weight About 250G Adaptation PC Window 7 and later, Android TV platform Package BEITONG Asura2 Pro Wireless Controller x 1, Wireless Receiver x 1, USB Include Cable x 1, User Manual x 1 ASURA 2PRO WIRELESS GAME CONTROLLER... - Page 20 Customizing professional control solutions for different types of games Creating the stronger experience of game control for gamers CUSTOMER SERVICE Official website: https://www.betop-cn.com/en Service Email: beitong-oversea@betop-cn.com More products and game information, please follow BEITONG official social media accounts. ASURA 2PRO WIRELESS GAME CONTROLLER...
