Related Manuals for BEITONG ASURA 2 PRO
Summary of Contents for BEITONG ASURA 2 PRO
- Page 1 USER MANUAL BTP-A1N2/A1N2S ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
-

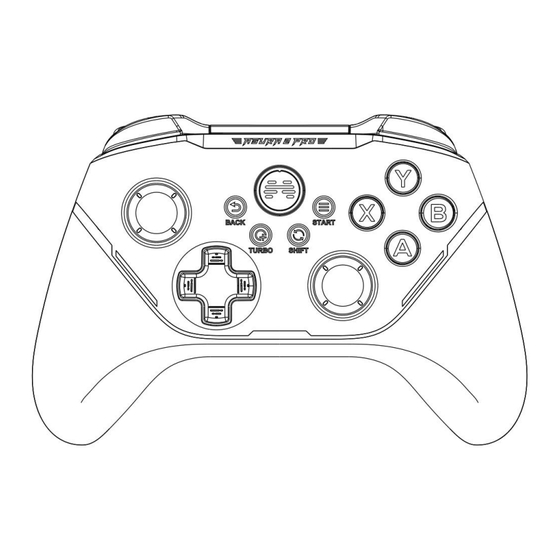

Page 2: Button Introduction
USER MANUAL Button Introduction ASURA 2 PRO MULTI MODE BLUETOOTH VERSION... -
Page 3: Power On/Off Procedure
2. When the controller is unconnected, it will automatically shut down if it has not been used for 2 minutes. 3. When the power can’t support normal use of the controller, it will shut down automatically. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION... - Page 4 *The indicator Light refers to the RGB aperture on the outer edge of the HOME Button. Under normal connection, the indicator Light shows white. The state of indicator Light can be customized through the BEITONG Gamepad Assistant. Situation Light State...
- Page 5 3 - Then press LB + RB until the controller pairs to Switch successfully. *This is required for the very first only, just need to press HOME button to turn on the controller to re-connect. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 6 Press START = [+] [HOME] Short press SHIFT = Back to Desktop Long press SHIFT = Menu Options Function Key Long press TURBO+RS = Screen Press BACK = [-] [CAPTURE] Short press TURBO+RS = Screenshot Recording ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 7 1 - Connect the controller to PC via USB-C cable. 2 - Press HOME button to turn on the controller. 3 - Connection is successful when controller vibrates, the indicator light stays solid. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 8 1 - Connect the controller to TV via USB-C cable. 2 - Press HOME button to turn on the controller. 3 - Connection is successful when controller vibrates, the indicator light stays solid. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 9 1 - Press and hold B + HOME button in power-off state to turn on the controller until the indicator light flashes in multi-colors and then release. 2 - Open the Bluetooth interface of the device, search for the named [ BEITONG A1N2 BFM ] for pairing. 3 - Connection is successful when controller vibrates, the indicator light stays solid.
- Page 10 NOTE: ①It's recommended to confirm upgrade if prompted for a firmware upgrade,to experience any updated features. ②In order to use the BEITONG Gamepad Assistant normally, the Gamepad must be connected to the computer with USB cable. ③Please feel free to run our secure program,if it can't be downloaded and run normally, try again after closing th e antivirus software.
- Page 11 [ BEITONG A1N2 BFM ] to connect. 3. ASURA 2pro Multi-mode PC Gamepad Assistant Introduction Tips: There are 2 modes in the BEITONG Game Assistant can be toggled at the top of the main page. Customizable Buttons & TURBO Button Frequency Adjustment ①After entering the "BEITONG Gamepad Assistant ", click the "Advanced Settings"...
- Page 12 ③Manually adjust the number in the "Turbo" Button function in the "Button" tab to change the Turbo frequency. The default frequency of the Turbo button is 10 times/second, and the maximum frequency is 30 times/second. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 13 USER MANUAL Trigger Stroke Adjustment ① In the Button interface, click the "Default" button of LT or RT enter into the next interface. ②In this interface, the trigger stroke can be adjusted. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 14 USER MANUAL Button Macro Function *BEITONG ASURA 2PRO Series supports custom macro settings for LB/RB, M1/M2 back buttons. ① In the Button Interface, click the "Default" button of any button of LB/RB, M1/M2 enter into the next interface. ②On the next interface, click the "Default" button in the upper right corner, then click to select "Set Macro" in the drop-down menu.
- Page 15 ③Press the desired button combination in the Controller to form a macro command, and then click "Save" to complete the button macro setting. Vibration Customization & indicator light Adjustment ① Click the "Advanced Settings" button in the main interface to enter the advanced settings interface. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 16 The vibration motors on the left and right sides each have five gears that can be adjusted. *Configuration Name can be customized ③The "Light" adjustment settings of the "Basic" tab can modify the color, brightness, frequency and work type of the Controller's indicator light as needed. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 17 ① Click the "Advanced Settings" button in the main interface to enter the advanced settings interface. ②And then press “Joystick” enter the Joystick interface, the sensitivity of the left and right joysticks of the Controller can be individually set. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 18 USER MANUAL Somatosensory Settings ① Click the "Advanced Settings" button in the main interface to enter the advanced settings interface. ② And then press “Somatosensory” enter the Somatosensory Setting interface. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 19 USER MANUAL ③Can be map to Joystick or Button, in this interface, Joystick dead zone of game can be adjusted. ④Supports setting buttons to turn on and off somatosensory function. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 20 ① Click the "Advanced Settings" button in the main interface to enter the advanced settings interface. ② In the "Function" tab, the sleep time can be adjusted, also can calibrate the joystick and trigger. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
- Page 21 NOTE: If the left joystick suddenly doesn’t work, please try to press SHIFT button first. Bluetooth Pairing Clearance Press RB + BACK + RS + HOME button in the power-off state to turn on the controller, all Bluetooth pairing information of controller can be actively cleared. ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
-
Page 22: Joystick Calibration
Step 3: After completing the calibration operation, press the START Button + BACK Button at the same time, and then press the Right Joystick(RS) to exit the calibration. * After exiting the calibration mode, the indicator light returns to the multi-color flashing state. START + BACK + RS ASURA 2 PRO MULTI MODE BLUETOOTH VERSION... - Page 23 Open Control Panel in your PC/Laptop - Devices and Printers. 2. Couldn’t play game: If it display [BEITONG A1N2 BFM GAMEPAD] Driver, please long press the HOME Button to change mode, when [Xbox 360 Controller for Windows] is displayed, it means the mode switch is successful.
-
Page 24: Product Specification
3. Avoid the use of metal or other obstacles to block the straight line distance between the controller and the terminal device. Product Specification Name BEITONG Asura 2pro Multi Mode Gamepad Bluetooth Version Model BTP-A1N2/A1N2S Power Supply 600mAh Rechargeable Lithium Ion Battery Connection 2.4G Wireless, Bluetooth, USB Cable... -
Page 25: Customer Service
It's very grateful. Meanwhile we'll select the customer who in high-quality advice to experience our new products for free opportunity. Sincerely BEITONG Customer Service Team ASURA 2 PRO MULTI MODE BLUETOOTH VERSION... - Page 26 Creating the stronger experience of game control for gamers CUSTOMER SERVICE Official website: https://www.betop-cn.com/en Service Email: beitong-oversea@betop-cn.com More products and game information, please follow BEITONG official social media accounts. Official YouTube Official Amazon Official Website ASURA 2 PRO MULTI MODE BLUETOOTH VERSION...
