Summary of Contents for BEITONG ASURA 3S

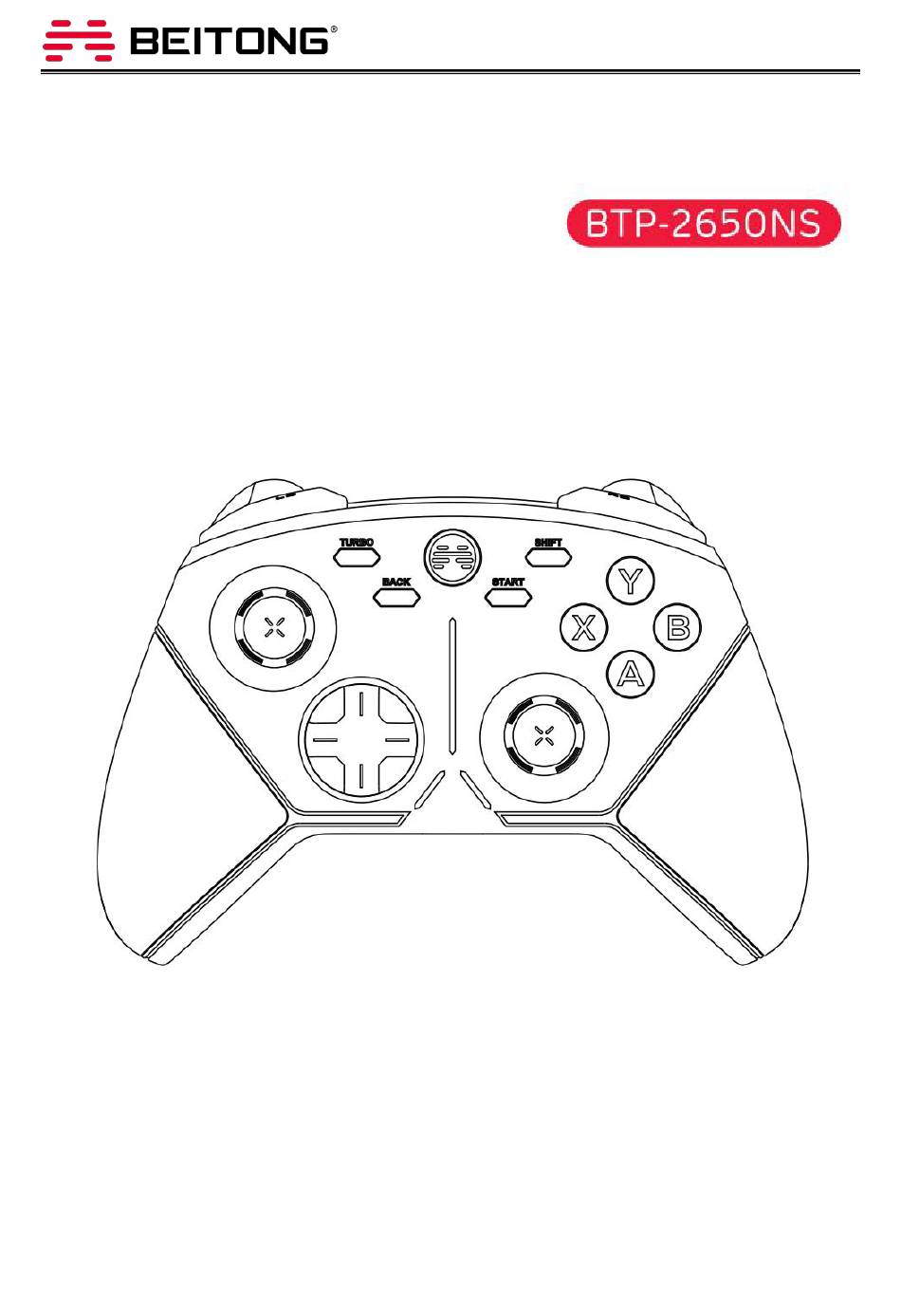

- Page 1 USER MANUAL BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
-
Page 2: Key Introduction
USER MANUAL KEY INTRODUCTION /LS(Press Down) /RS- (Press Down) BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE... -
Page 3: Power On/Off
USER MANUAL POWER ON/OFF ① [ Power on ] Press the BEITONG Logo button to turn on the Controller ② [ Power off ] Press and hold the Back + B button for about 3 seconds, the Controller will be turned off ③... - Page 4 LOGO Button to turn on the controller again, select "change grip/order" to re-pair. Step 3: If the controller has been already connected to the NS, you could re-connect by pressing the LB + LOGO Button of the controller, when there is no other device connected. BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 5 [ The corresponding NS keys of the controller are as follows ] BACK = TURBO+RS = Screenshot SHIFT = HOME Button START = *Short Press：Screenshot *Short Press：Back to desktop *Long Press：Screen Recording *Long Press：Menu Options BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 6 [BFM mode] : The green light on the lower half is on for 3s ④Automatically paired for connection when the receiver is PC 360 Mode BFM Mode used again, while you press LOGO Button to start up Indicator Lights BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 7 ① Press LOGO Button + B to turn on the controller in the power-off state. ② Open the Bluetooth interface of the device, search for the named [ BEITONG 2650NS BFM ] for pairing. After successful connection, the indicator light 3 and 4 turns red 5 seconds.
- Page 8 ① Joystick sensitivity adjustable in real time： A higher/lower gear could be adjusted when you rotate the knob three times each, while the three indicator lights are in the same color ② Indicator lights color & corresponding sensitivity BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 9 ※Long stroke: 19°, suitable for racing games ※Medium stroke: 11°, suitable for RPG games ※Short stroke: 5°, suitable for shooting and action games BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
-
Page 10: Software Support
It's recommended to download according to gamer's needs, but do not affect basic use of the controller without downloading. BEITONG Gamepad Assistant For PC] ① Download the software "BEITONG Gamepad Assistant" from BEITONG official website: https://www.betop-cn.com/en/#/down ( Note: If you enter the Chinese Official Website, please set the language in the upper right corner to English, and then click the DOWNLOAD enter into the download page.) - Page 11 NOTE: 1.It's recommended to confirm upgrade if prompted for a firmware upgrade, to experience any updated features. 2.In order to use the BEITONG Gamepad Assistant normally, the Gamepad must be connected to the computer with USB cable. 3.Please feel free to run our secure program,if it can't be downloaded and run normally, try again after closing the antivirus software.
- Page 12 [ Brightness adjust of lights ]: 5 levels are optional [ Frequency adjust of lights switching ]: 5 levels are optional ②Vibration adjustment [Intensity ] : Adjust the intensity of vibration feedback of the gamepad BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 13 One button can be set to have a maximum of 32 actions You can record the [Action], [Duration] and [Interval] between each action in combo operations in real-time, and fine-tune them in milliseconds. BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 14 The somatosensory can be mapped to joystick or button, depending on the game, you have to choose the mode of operation: immediate/continued, often used in shooting aiming, driving, secondary action and other game scenarios. If slight movement is unresponsive, add [compensate for joystick dead zone of game]. BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 15 [Trigger Lock Calibration] Turn the trigger lock on both sides from long stroke to shortest stroke, press B twice to calibrate. [Trigger Calibration] Three strokes, each stroke press down the two triggers to the end BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 16 *Action Button mean A,B,X, Y, LB, RB, LT, RT [ JOYSTICK D-PAD SWITCH ] [SHIFT Key] To Switch Press gently [SHIFT Key] to enable/disable the function of switching between the joystick and direction keys BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 17 ※75%-99% Power: Indicator light 1,2,3 normally on, 4 breathing ※Full charge: Indicator light 1,2,3,4 normally on in white When the battery power is lower than 20%, the indicator lights 1 and 2 will flicker in red quickly BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
- Page 18 USER MANUAL How to upgrade the firmware ? 1. Visit the download page of BEITONG official website. 2. Click [BEITONG Gamepad Assistant] to download the program. 3. Connect controller & PC by USB cable, run betopgame.exe program to start the Gamepad Assistant 4.
-
Page 19: Product Specification
USER MANUAL Product Specification Name BEITONG Asura 3S Wireless Gamepad Multi Mode Model BTP-2650NS Power Supply 950mAh Rechargeable Lithium Ion Battery Connection 2.4G Wireless, Bluetooth, USB Cable Size 155*110*62mm Weight About 244G Adaptation PC Window 7 and later, Android Device, iOS Device, Nintendo Switch... -
Page 20: Customer Service
It's very grateful. Meanwhile we'll select the customer who in high-quality advice to experience our new products for free opportunity. Sincerely BEITONG Customer Service Team BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE... - Page 21 Creating the stronger experience of game control for gamers CUSTOMER SERVICE Official website: https://www.betop-cn.com/en Service Email: beitong-oversea@betop-cn.com More products and game information, please follow BEITONG official social media accounts. Official YouTube Official Amazon Official Website BEITONG ASURA 3S WIRELESS GAMEPAD MULTI MODE...
