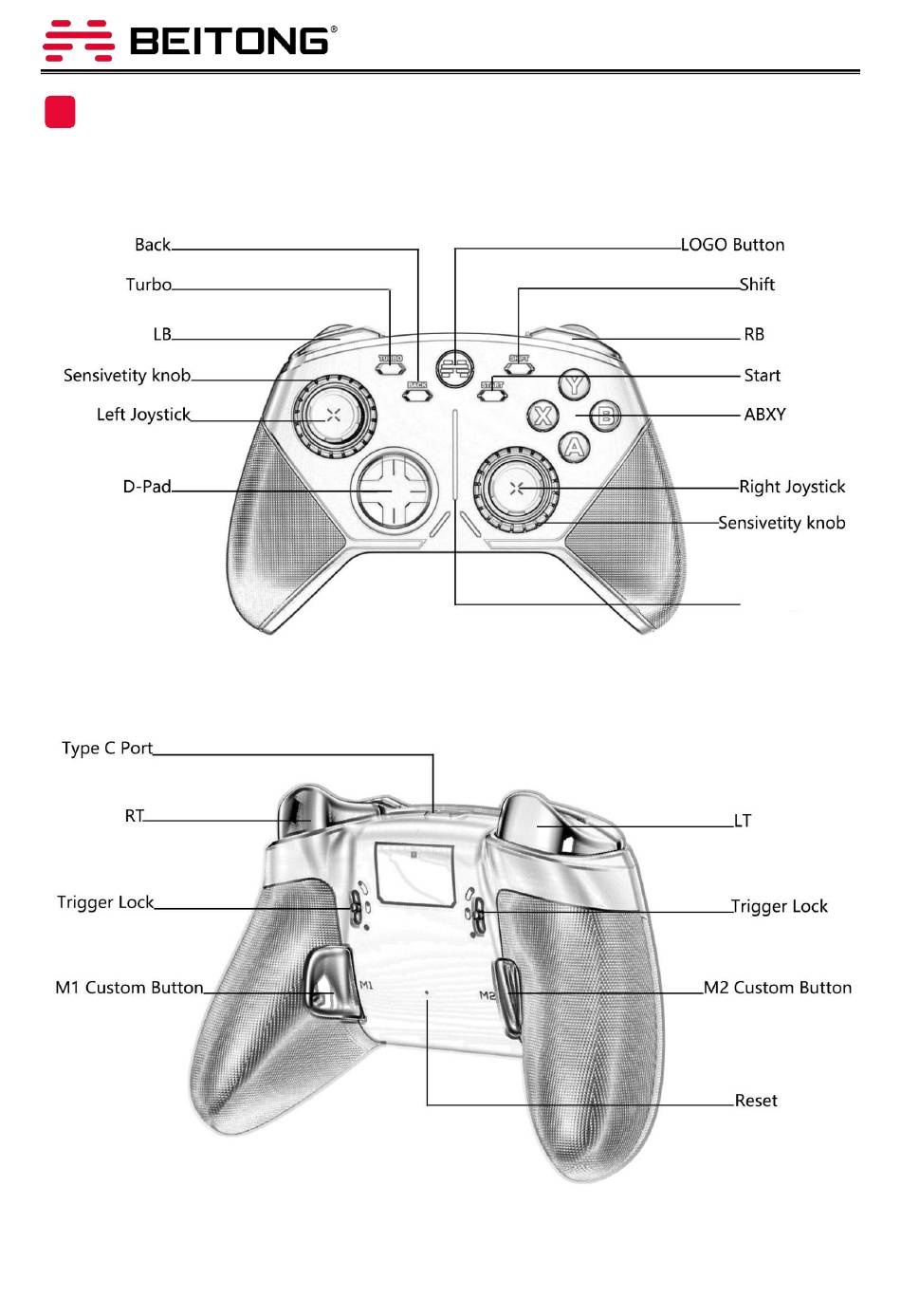

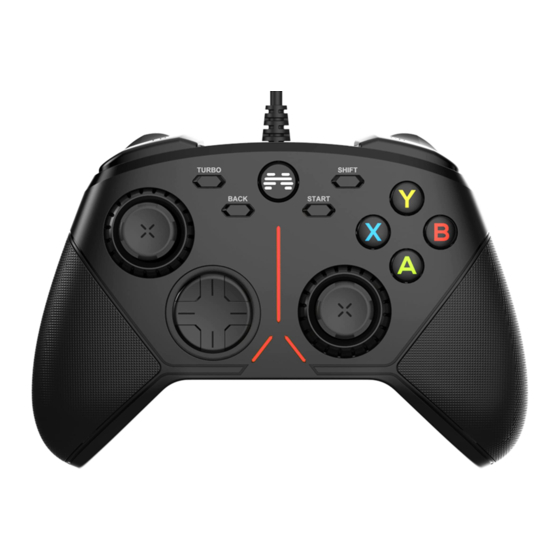

- Page 1 USER MANUAL KEY INTRODUCTION [ FRONT ] Indicator light [ BACK ] ASURA 3S WIRELESS GAME CONTROLLER...
-
Page 2: Indicator Lights
Indicator 1 Indicator 2 POWER ON/OFF ① [ Power on ] Press the BEITONG Logo button to turn on the Controller ② [ Power off ] Press and hold the Back + B button for about 3 seconds, the Controller will be turned off ③... - Page 3 The connection is completed when the controller vibrates and the indicator light turns normally on ③ Press and hold BEITONG Logo button for 3s to switch the controller mode [PC360 mode]: The green light on the upper half is on for 3s [BFM mode] : The green light on the lower half is on for 3s ④...
- Page 4 [ SENSIVETITY KNOB OPERATION ] ① Joystick sensitivity adjustable in real time： A higher/lower gear could be adjusted when you rotate the knob three times each, while the three indicator lights are in the same color ASURA 3S WIRELESS GAME CONTROLLER...
- Page 5 In addition, the counterweight bin can be used as a [wireless receiver storage ] Counterweight need to be purchased separately You can also use suitable coins if prefers ASURA 3S WIRELESS GAME CONTROLLER...
- Page 6 ※Medium stroke: 11°, suitable for RPG games ※Short stroke: 5°, suitable for shooting and action games SOFTWARE CONFIGURATION [CONTROLLER ASSISTANT DOWNLOAD ] ① Download the software "ASURA 3S Assistant" from BEITONG official website: https://www.betop-cn.com/en/#/down , and install it on the computer ASURA 3S WIRELESS GAME CONTROLLER...
- Page 7 USER MANUAL ②In order to use the ASURA 3S Assistant normally, the controller must be connected to the computer PC360 with USB cable Press the BEITONG logo button to turn controller on and it’ll be connected automatically ③ Run the software "ASURA 3S Assistant" to set...
- Page 8 [ Brightness adjust of lights ]: 5 levels are optional [ Frequency adjust of lights switching ]: 5 levels are optional ②Vibration adjustment [Intensity ] : Adjust the intensity of vibration feedback of the gamepad ASURA 3S WIRELESS GAME CONTROLLER...
- Page 9 LB, RB, M1, M2 keys can be set for macro programming One button can be set to have a maximum of 32 actions You can record the [Action], [Duration] and [Interval] between each action in combo operations in real-time, and fine-tune them in milliseconds. ASURA 3S WIRELESS GAME CONTROLLER...
- Page 10 Press and hold [Action Key] and then press [TURBO Key]. When the gamepad vibrates once, it indicates that running fire is enabled ② Disable: Press and hold [Action Key] that enabled the running fire, and then press [BURBO Key] ASURA 3S WIRELESS GAME CONTROLLER...
- Page 11 ※75%-99% Power: Indicator light 1,2,3 normally on, 4 breathing ※Full charge: Indicator light 1,2,3,4 normally on in white When the battery power is lower than 20%, the indicator lights 1 and 2 will flicker in red quickly ASURA 3S WIRELESS GAME CONTROLLER...
- Page 12 Been focusing on game controller and software development more than 25 years Sticking on quality, function and innovation Customizing professional control solutions for different types of games Creating the stronger experience of game control for gamers CUSTOMER SERVICE Official website: www.betop-cn.com Service Email: beitong-oversea@betop-cn.com ASURA 3S WIRELESS GAME CONTROLLER...
