Features
Brightness adjustable
●
Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control)
●
Auto-forwarding: Automatically forward the remote control signal to another controller,
●
making the remote control distance in nite
Automatic synchronization: The same dynamic mode is automatically synchronized,
●
so that the mode is always consistent
Have DND function, usually used in power failure area and save power
●
Support TUYA SMART app control (2.4GHz gateway is needed)
●
Support third party voice control like Alexa, Google assistant,Yandex Alice,
●
Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)
Parameters

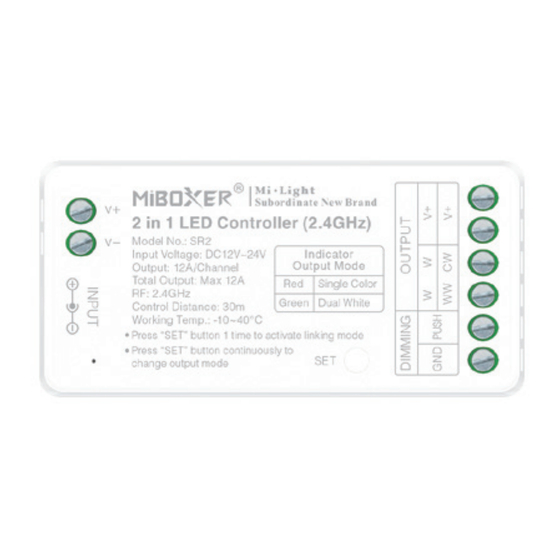

Name: 2 in 1 LED Controller
Model No.:
SR2
Input Voltage:
DC12~24V
Output Current:
12A/ Single channel
Total Output:
Max 12A
Protocol:
2.4GHz RF
Control Distance:
30m
IP Rating:
IP20
74.5mm
SR2 2 in 1 LED Controller
Model No.: SR2
Working Temperature:
EMC Standard (EMC):
Safety Standard (LVD):
Radio Equipment (RED):
Certi cation:
-10~40℃
ETSI EN 301 489-1 V2.2.3(2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
ETSI EN 300 328 V2.2.2 (2019-07)
CE, EMC, LVD, RED
Advertisement
Related Manuals for Miboxer Mi-Light SR2
Summary of Contents for Miboxer Mi-Light SR2
- Page 1 SR2 2 in 1 LED Controller Model No.: SR2 Features Brightness adjustable ● Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control) ● Auto-forwarding: Automatically forward the remote control signal to another controller, ● making the remote control distance in nite Automatic synchronization: The same dynamic mode is automatically synchronized, ●...
- Page 2 Connection Diagram Input: DC12V~24V Input: DC12V~24V V- V+ V- V+ Dual White Mode Single color mode PUSH switch PUSH switch Application Diagram Tuya Cloud 4G/ 5G/ WiFi Input: DC12V~24V Gateway Router Alexa / Google Remote Model No.: FUT006 Compatible with these 2.4G RF remote controls (Purchased separately) Model No.: C1 B1 / B1-B / T1...
- Page 3 2.4G RF Remote control instruction Linking Code Instructions Power Controller Link / Unlink button Power off 10 seconds and Short press " I " button Lights blink 3 times power on again. 3 times within 3 seconds. slowly means linking is done successfully.
- Page 4 Transmitting function instruction One Controller can transmit the signals from the remote control to another Controller within 30m, as long as there is a LED Driver within 30m, the remote control distance can be limitless. Auto transmitting Controller Controller Distance 30m Attention: All “LED Driver”...
