- Page 1 Subordinate New Brand RGB+CCT Remote (Zigbee 3.0) Model No.: FUT089Z...
- Page 2 1. Features This item is made by zigbee 3.0 standard protocol with low consumption,strong ability to set up internet and anti-interference. It can control on/off, RGB color,color temperature,saturation and brightness for zigbee 3.0 lights.One remote device can control max 25 lights. Zigbee 3.0 standard protocol Zigbee 3.0 Compatible with all zigbee 3.0 lights...
- Page 3 2. Parameters Model No.: FUT089Z Working Voltage: 3V (AAA * 2PCS) Transmitting Power: 10dBm Standby Power Consumption: 20µA Max Controllable Lights: 25 Pcs Control Distance: 100m (open area) Working Temperature: -10~40°C 47mm 19mm 24.3mm Zigbee 3.0 Remote 53mm...

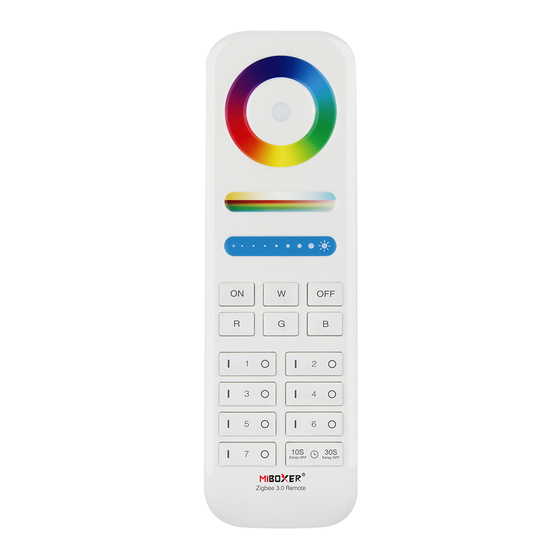

- Page 4 3. Function Pilot lamp Color ring Saturation/ Color temperature Brightness White model Master on Master off Blue Green “ ” Zone on “ ” Zone off (Link) (Unlink) Countdown 30 s Countdown 10 s to turn off to turn off Zigbee 3.0 Remote Attention: Please change battery if the indicator flashes frequently with low percentage.
- Page 5 Touch the color ring to change colors. Under white light mode, adjust color temperature; Under color light mode, change color saturation. Slide the brightness slider to adjust the brightness. Switch to white color model Master on, turn on all lights which had linked. Master off, turn off all lights which had linked.
-
Page 6: Zone Control
Attention 1. Please repeat linking if the device don't link successfully after indicator flash 20 seconds. 2. Remote only match or dismatch with one light in one time, it will match or dismatch with the nearest light. One light is only controlled Remote not added into gateway: by one remote. - Page 7 6. Add remote into zigbee 3.0 gateway Zigbee lights can be controlled by remote, app or third party voice at the same time Method: 1. "MiBoxer Smart" app already added gateway. 2. Click “zigbee gateway" in "Home" interface and enter in. 3. Add subdevice.
- Page 8 4. Press " " and " " button 5 seconds at the same time untill indicator of remote flash one time with one seconds. 5. Click "Indicator is flashing quickly" Zigbee 3.0 Remote...
- Page 9 6. Click "Done" ,remote added into gateway successfully...
- Page 10 7. Match and dismatch light (Remote already added into gateway) 1. "MiBoxer Smart" app already added zigbee 3.0 gateway and some lights connected into zigbee gateway ( please read instruction for zigbee lights and find out solution for matching and dismatching).
- Page 11 4. Click" Device Selection" 5. Click select the controlled device and "Save" 6. "Lighting Selection" instruction: a). Select Color or Scene you like, click "Save". b). Double click " " on the remote to quickly change the light to the color of your choice.
- Page 12 8. Attention 1. Please change battery if the indicator of remote flash frequently while you are using it. Don't use battery with poor quality, otherwise the battery is easy to liquid out and broke remote 2. Please don't use it in moist, high temperature,dusty or high voltage application since this model is accurate electronics.We suggest to keep it indoor,dry and none static electricity area...
